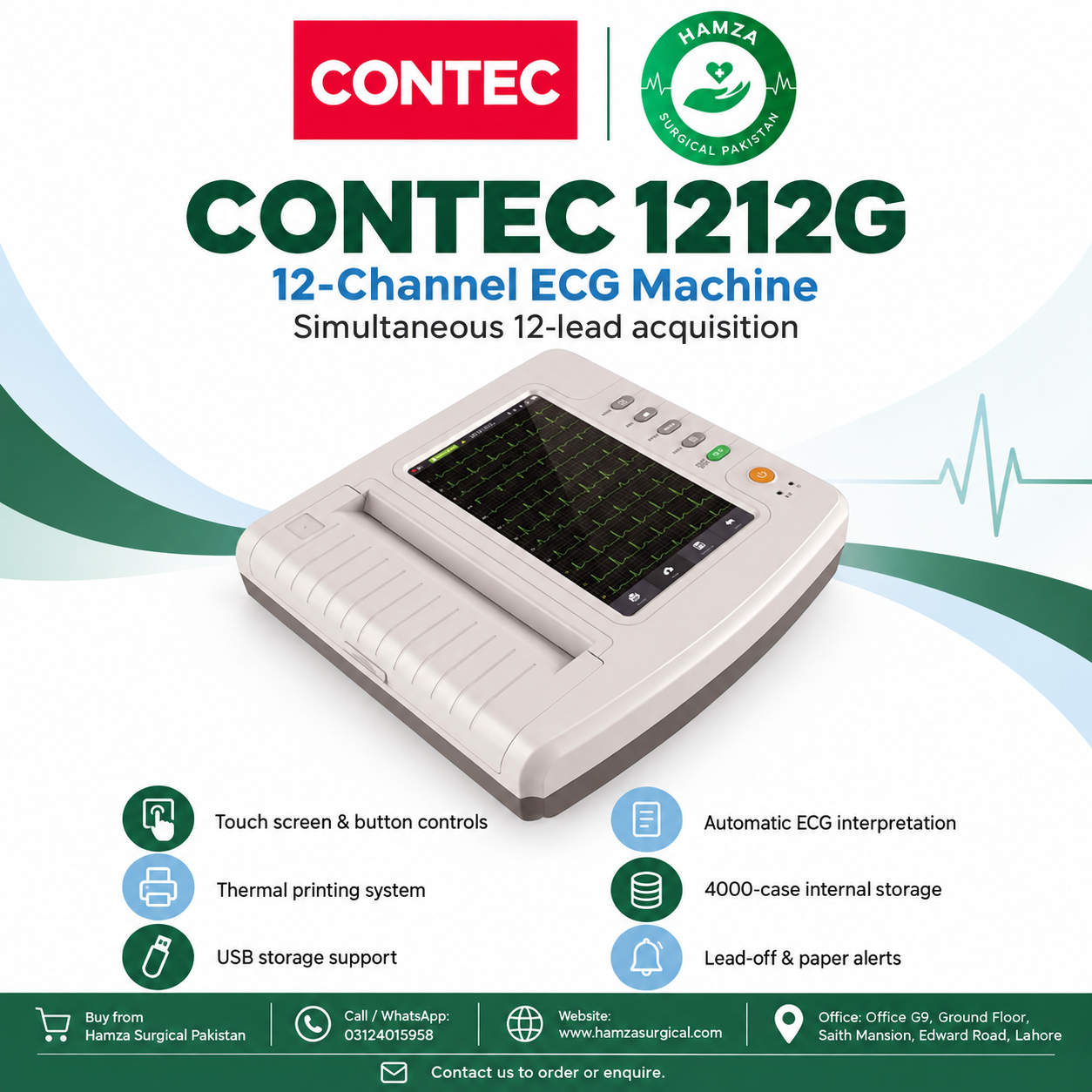

CONTEC 1212G 12-Channel ECG Machine

Product Description

Introduction

ECG1212G Electrocardiograph is a kind of device that is able to collect 12-lead ECG signals simultaneously and print ECG waveform with a thermal printing system. It can realize many functions, including recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC power supply, selectable rhythm lead, case database management, etc. The trend chart and histogram of RR interval can be printed, which is convenient to observe abnormal heart rates. Operations by both buttons and touch screen are supportive.

Features

• Sync collection for 12-lead ECG, support for 12-lead and Cabrera-lead waveform display, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter (50/60Hz), baseline filter and EMG filter (25Hz/35Hz) of ECG signal.
• Display of 3/6/12-lead ECG on one screen, and HR value, print mode, sensitivity, paper speed, filter state, clock, battery level, background gridlines, measured data and interpretation information, etc. Prompting function for lead-off and system working state.
• Built-in thermal printer, support for multiple printing modes and formats, including 12×1 (twelve-lead), 6×2 (rhythm lead), 6×3+1 (rhythm lead), 3×2 (rhythm lead), rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. The printed content contains time, paper speed, sensitivity, calibration signal, name of lead, filter state and patient’s information. Information including printed waveform length, output measurement parameters, diagnostic conclusion, superposition QRS waveform, histogram, trend chart and interval list, can be set, and with time print function and auto arrhythmia print function, which meets different requirements.
• With the functions of auto-measurement and auto-interpretation for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, QT/QTc interval, P/QRS/T Axis, R(V5), S(V1), R(V5)+S(V1), Cornell index, etc. which reduces the doctor’s burden.
• Built-in memory stores at least 4000 cases, external USB storage device expands storage space and cases can be imported and exported.
• Multi-language (Turkish, French, Chinese, English, German, Kazakh, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report. Full touch screen with buttons operation, built-in virtual keyboard, support Chinese and English input method.
• In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform (commonly, it is 35 cases), which meets the requirements of visiting a patient at home and body examination.
• Historical cases can be reviewed, inquired, modified, transmitted, printed, exported to other electronic file formats (dat, pdf, xml, bmp, jpeg, etc.), support lead correction and screen measurement, with multi-case comparison function on one screen, and output ECG comparison report.
• Built-in mobile communication network, wireless network, wired network; cases automatic upload, reports automatic download and print.
• Support external USB standard keyboard, mouse, scanner and printer.
• Connect with the ECG-Sync software through network or USB to form ECG workstation, realizing historical data upload, instant acquisition, and additional multiple analysis functions.

Accessories

Standard:

• A lead cable
• A limb electrode
• A chest electrode
• A thermal recording paper
• A power cord
• An earth wire
• A user manual

Optional:

• ECG-Sync software+USB cable
• ECG electrode
• Bag
• Conductive paste
• 4G module
• Remote Operation Guide
• Folding print paper

Physical characteristic

• Working environment:
  • Temperature: 5°C~40°C
  • Relative humidity: 25%~95% (non-condensing)
  • Atmospheric pressure: 700hPa~1060hPa
• Transport and storage environment:
  • Temperature: -40°C~+55°C
  • Relative humidity: <95%
  • Atmospheric pressure: 500hPa~1060hPa
• Dimension: 340mm(L) × 320mm(W) × 86mm(H)
• Weight: 5kg
