Product Specifications
| Feature | Details |
|---|---|

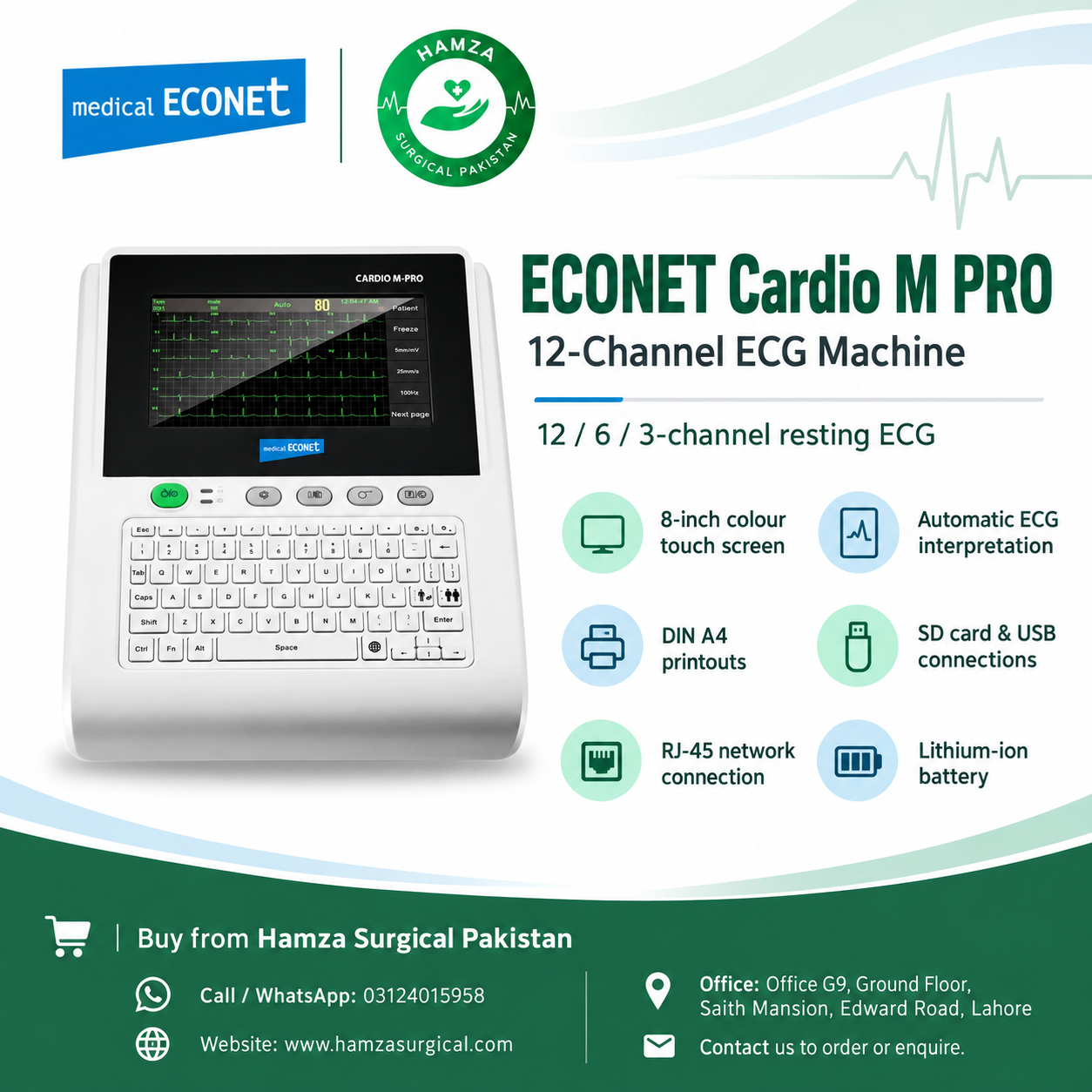

| Functionality | 12, 6, and 3 Channel Resting ECG |
| Display | 8″ LCD Color Touch Screen |
| Printout Options | DIN A4 format with high clarity; output in 12 channels, 2×6, or 3×4 packages |
| Rhythm Printout | Available for 3- and 6-channel settings |
| ECG Monitoring | Manual ECG monitoring or 10-second memory ECG for interpretation |
| Interpretation | Automatic recommendations based on Minnesota protocol with 25 diagnostic case distinctions |
Standard Accessories
| Accessory | Quantity |
|---|---|
| ECG Patient Cables | 1 set |
| Power Cable | 1 |
| Chest Electrodes | 6 |
| Extremity Clamp Electrodes | 4 |
| User Manual | 1 |
| ECG Paper Roll (80mm) | 1 |
| ECG Gel | 1 tube |
Technical Details
| Parameter | Specification |
|---|---|
| Dimensions | 360 x 276 x 130 mm (W x H x D) |
| Weight | Approx. 4.2 kg |
| Screen Resolution | 800 x 480 pixels |
| Measurement Parameters | HF, PR Interval, QRS-complex Duration, QT/QTC, electrical R/QRS/T-axis, RV5/SVI amplitude |
| Battery | Lithium-ion, 5 hours runtime when fully charged or up to 500 ECG reports in automatic mode |
| Connections | 1x SD card, 2x USB, 1x RJ-45 (Network) |
| Safety Level | Class 1, Type CF |
