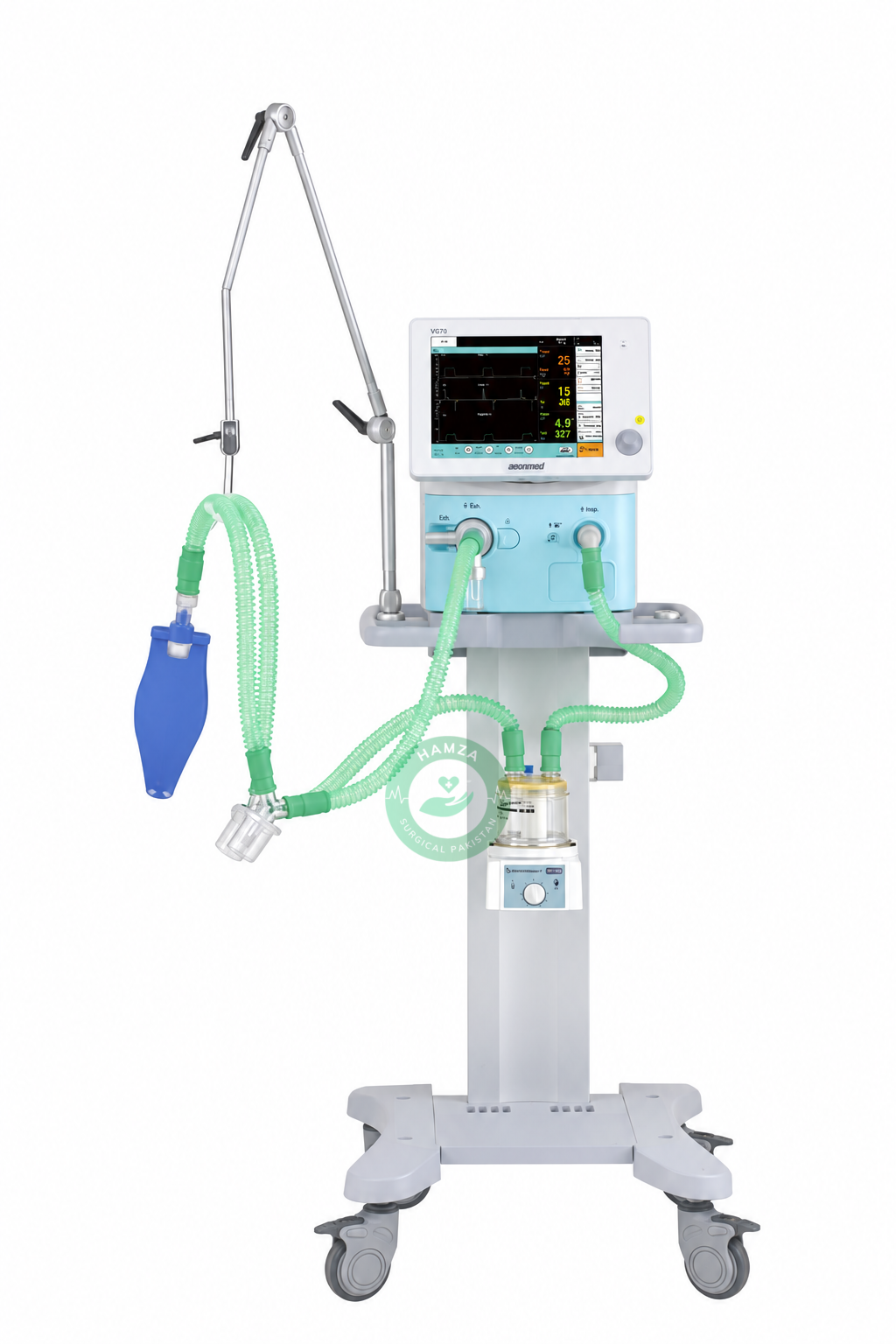

Aeonmed VG70 Ventilator
₨ 800,000
Hurry Up! Azadi Sale is Live Now
Buy Aeonmed VG70 Ventilator in Pakistan for ₨ 800,000 from Hamza Surgical. We offer original products and delivery across Pakistan. Same-day dispatch from Lahore is available for confirmed orders placed before the daily dispatch time. View more options and check ICU Ventilator Price in Pakistan.
Shipping & Delivery
-
Safe & Secure Delivery
Delivery Within 3-4 Working Days
-
We deliver all over Pakistan
Get Same Day Tracking & Parcel Picture
-
Same Day Delivery via Yango in Lahore Mon-Sat (12:30pm - 5:00pm Only)
Charges as per the app, Send your Current location at our WhatsApp.
Address: G-9, Saith Mansion, 10-Syed Moj Darya Road Lahore
Note: Waiting time could be up to 1-Hour
-
Authentic Product
-
Brand New Product
Product overview
- Brand: Aeonmed
- Model: VG70
- Product type: ICU ventilator
- Application: Invasive and noninvasive ventilation
- Manufacturer: Beijing Aeonmed Co., Ltd.
- Device category: Mobile ICU ventilator
- CE mark shown: CE 0123
Key features
- Comprehensive ICU ventilation with BIVENT and PRVC
- Compact design with built-in high-capacity battery
- No air compressor
- Suitable for intra-hospital mobility
- Can be configured on a trolley, bed, or ceiling pendant
- Metal-based, autoclavable, heated exhalation valve
- Built-in non-consumable flow sensor
- Upgradeable ventilation software
- USB port for data export
- 360-degree visible alarm lamp
- Ultra-quiet internal turbine
- Integrated power supply
- Extended battery backup option
- Automatic leak compensation
- Advanced trigger technology
- Multi-parameter monitoring
Ventilation modes
- VCV (A/C)
- PCV (A/C)
- PRVC – optional
- PSV – optional
- STANDBY
- SIMV (VCV) + PSV
- SIMV (PCV) + PSV
- SIMV (PRVC) + PSV
- SPONT/CPAP + PSV
- BIVENT/APRV + PSV – optional
- NIV/CPAP
- NIV-T
- NIV-S/T
Ventilation parameters
| Parameter | Specification |
|---|---|
| Tidal volume (VT) | 20-2,000 ml |
| Respiratory rate (RR) | 1-80 bpm |
| Inspiratory time (Ti) | 0.2-9 seconds adult; 0.2-5 seconds pediatric |
| Inspiratory flow | 0-100 L/min pediatric; 0-180 L/min adult |
| Inspiratory pressure (Pinsp) | 5-70 mbar or cmH2O |
| Inspiratory pressure limit (Pmax) | 80 mbar or cmH2O |
| PEEP | 0-35 mbar or cmH2O |
| Tslope | 0-2 seconds |
| O2 concentration (FiO2) | 21-100 Vol% |
| Flow trigger sensitivity | 0.5-20 L/min |
| Pressure trigger sensitivity | -20 to 0 mbar or cmH2O |
| I:E ratio | 1/10 to 4/1 |
| Apnea alarm time | 10-60 seconds |
Enhancements
- Apnea ventilation
- Pressure and flow trigger
- Automatic Tube Compensation (ATC)
- Smart suction
- Manual breath
- Inspiratory/expiratory hold
- Screen freeze
- Nebulization
- Lung recruitment
Monitoring
- Pressure: Pplat, Ppeak, Pmean, Pmin, PEEP
- Volume/flow: VTi, VTe, MV, MVe, MVspont
- Time: ftotal, fspont, I:E
- Inspiratory O2 concentration (FiO2)
- End-expiratory CO2 concentration (etCO2)
- Dynamic and static compliance
- Resistance (R)
- MVleak
- RSBI
- WOB
- Vdaw
- PEEPi
- Pressure-volume loop
- Pressure-flow loop
- Flow-volume loop
Physical specifications
- Dimensions (W x D x H): 375 x 395 x 430 mm
- Weight: 15 kg (33.1 lbs)
- Screen: 12.1-inch TFT color touch screen
The feature callout on another brochure page refers to the display as a 12-inch TFT detachable touch screen.
Alarm functions
- Expiratory minute volume high/low
- Airway pressure high/low
- VTe low
- PEEP high/low
- Inspiratory O2 concentration high/low
- End-expiratory CO2 concentration high/low
- High spontaneous breathing frequency
- Apnea alarm
- Disconnection
- Flow sensor error
- Gas supply failure
- Electrical supply and battery failure
- Exhalation obstruction
- Apnea backup for low-frequency alarm
