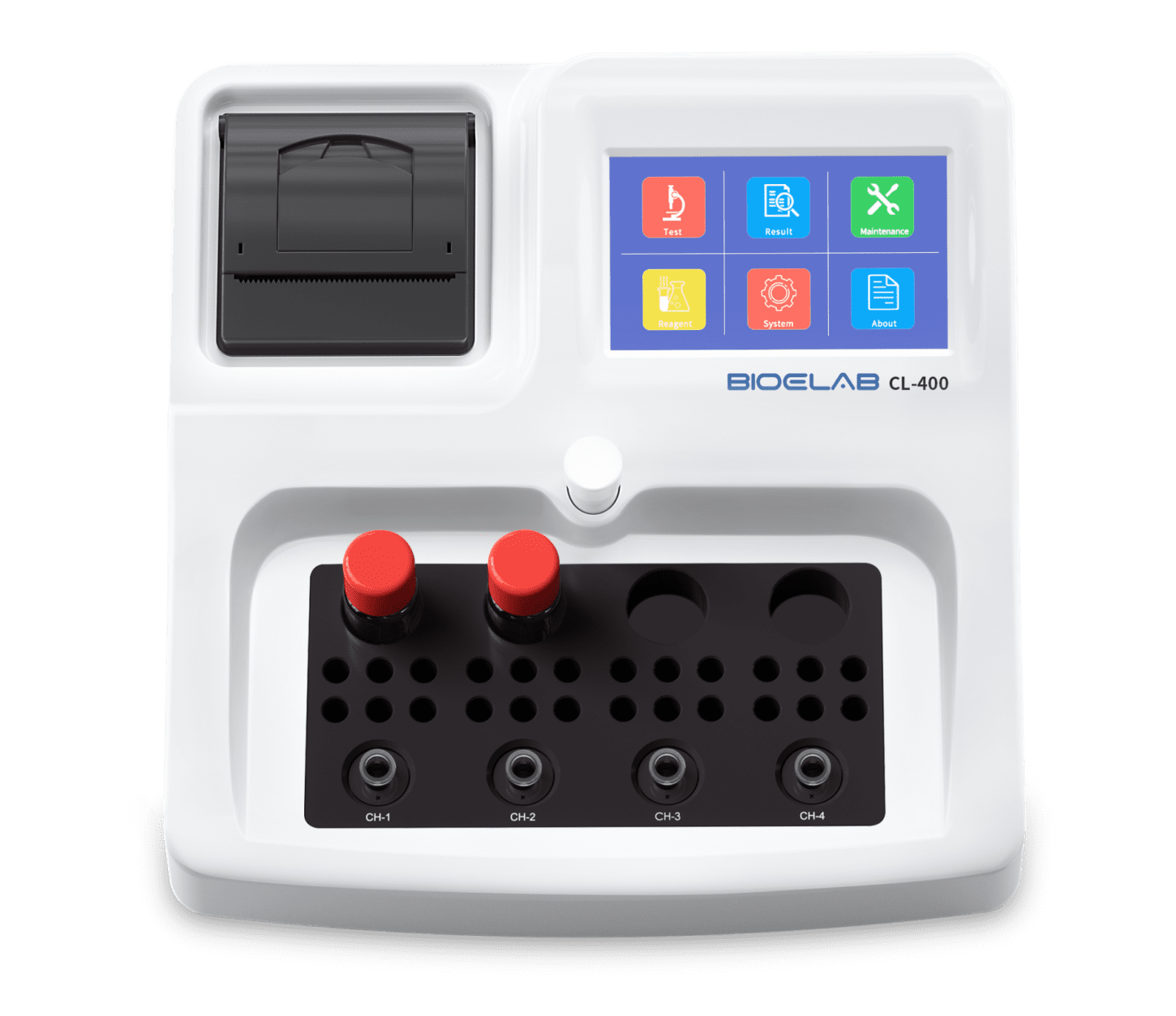

BIOELAB CL-400 Semi-Auto Coagulation Analyzer

The CL-400 is a reliable and efficient semi-automatic coagulation analyzer designed for accurate and fast diagnostic testing. Its advanced optical detection system and user-friendly interface make it an ideal choice for laboratories seeking performance and convenience.

Key Features

Advanced Optical Detection

Utilizes a highly sensitive optical method to ensure precise coagulation analysis. The built-in printer enables fast and real-time result output.

Four Detection Channels

Equipped with four independent channels, allowing simultaneous testing to significantly improve laboratory efficiency and workflow.

User-Friendly Touchscreen Interface

Features a 4.3-inch TFT LCD touchscreen with an intuitive interface, ensuring smooth operation and easy navigation.

Magnetic Stirring System

Incorporates an advanced magnetic stirring mechanism that ensures uniform mixing, resulting in more accurate and consistent test outcomes.

Intelligent Software System

Includes integrated functions such as parameter editing, quality control management, and real-time curve display for enhanced analytical performance and workflow optimization.

Technical Specifications

Detection System

• Detection Channels: 4
• Test Principles:
  • Optical Coagulation Method
  • Chromogenic Method (optional)
  • Immunological Method (optional)

System Configuration

• Display: 4.3” TFT LCD touchscreen
• Printer: Built-in thermal printer
• Incubation Positions: 24
• Reagent Positions: 4
• Temperature Control: 37°C ± 0.5°C
• Stirring System: Magnetic stirring
• Sampling: Automatic induction

System Performance

• Reaction Volume: 150 μL
• Open System with editable reagent parameters
• Editable calibration and reference curves
• Storage Capacity:
  • Up to 200 test items
  • Up to 200,000 test results
  • Up to 1,000 curves
• Quality Control (QC) management
• Real-time curve display
• Automatic unit conversion (INR, %, g/L, mg/dL, Ratio, Seconds)
• Connectivity: 1 USB port

Power & Physical Details

• Input Voltage: 100–240V AC
• Frequency: 50/60 Hz
• Power Consumption: ≤ 60W
• Net Weight: 2.5 kg (±5%)
• Dimensions (L × W × H): 252 × 252 × 125 mm (±3%)

Storage & Performance Efficiency

The CL-400 features a powerful internal system capable of storing up to 200,000 test results and 1,000 curves, ensuring reliable data management without performance lag.
