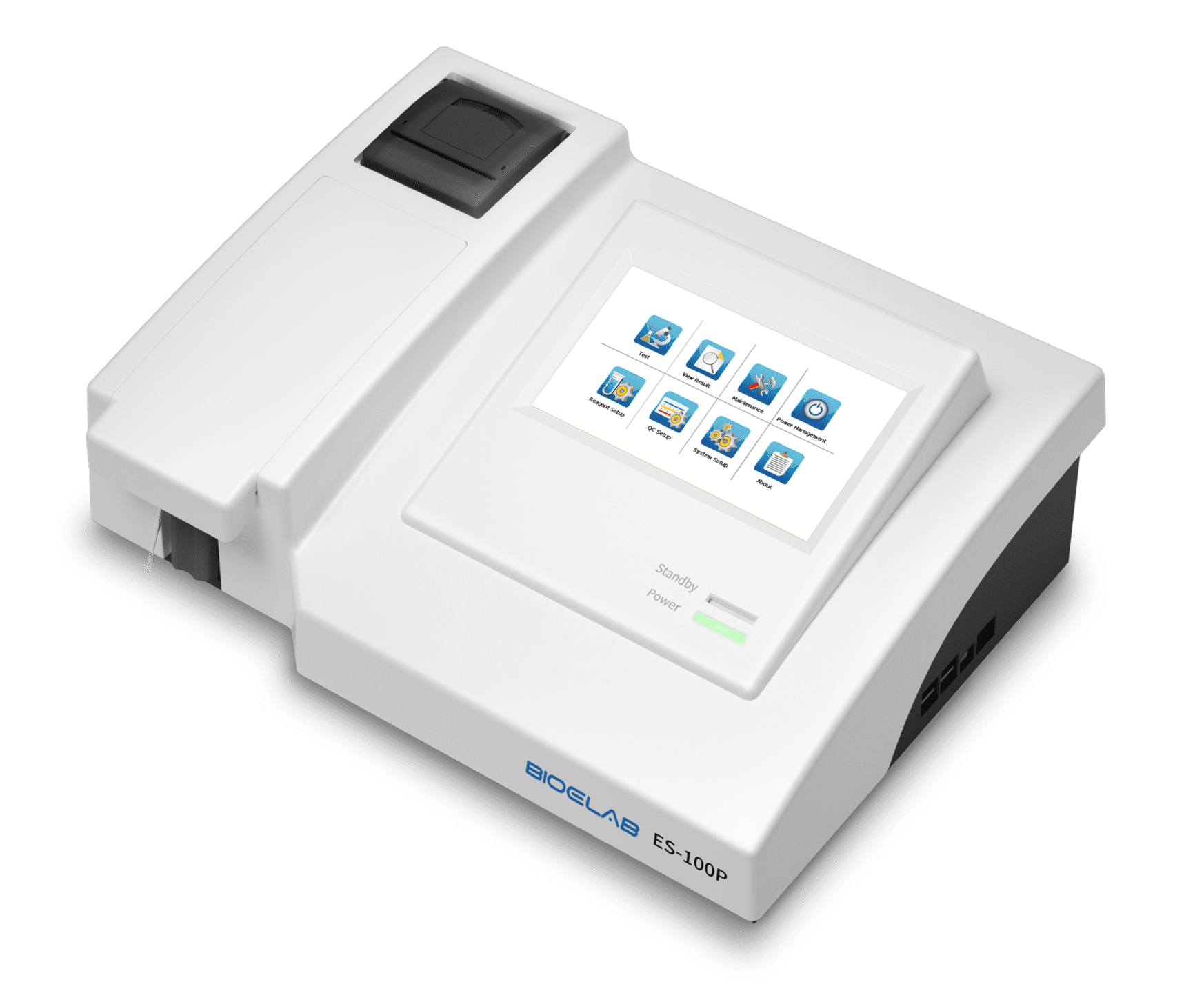

BIOELAB ES-100P Semi-Auto Chemistry Analyzer

Efficient, Flexible, and User-Friendly Laboratory Solution

The ES-100P Semi-Auto Chemistry Analyzer is designed to deliver a perfect balance of performance, flexibility, and ease of use. With advanced features, a user-friendly interface, and reliable performance, it is an ideal choice for modern laboratories.

Key Features

User-Friendly Touchscreen Operation

• Equipped with a 7-inch color TFT touchscreen
• Intuitive interface for smooth and convenient operation
• Clear display of real-time testing curves and results

Multiple Connectivity Options

• Includes 5 USB ports + 1 Ethernet port
• Supports connection with mouse, keyboard, and printer
• Enables easy data transfer and LIS (Laboratory Information System) integration

Large Data Storage Capacity

• Stores up to 200,000 test results
• Supports over 300 testing programs
• Ensures efficient data management without performance issues

Advanced Software System

• Easy customization and editing of test parameters
• Real-time display of:
  • Reaction curves
  • Calibration data
  • Quality control results
  • Sample test outcomes

Reliable Performance

• Uses high-quality brand accessories
• Long-lasting components with extended operational life
• Designed for consistent and accurate laboratory results

Technical Specifications

Testing Methods

• End-point (1-point and 2-point with sample blank)
• Kinetic analysis
• Fixed-time method
• Coagulation testing (optional)

Optical System

• 7 standard filters:
  340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm
• Optional: 2 additional filters

Light Source

• Long-life tungsten halogen lamp (6V/10W)
• Auto-sleep function for energy efficiency

Display

• 7.0-inch TFT LCD touchscreen
• Resolution: 800 × 480 pixels

Printer

• Built-in thermal printer
• Uses 57mm paper

Flow Cell

• Capacity: 32 µL
• Optical path: 10 mm

Performance

• Resolution: 0.0001 Abs
• Photometric range: 0.0000 – 4.0000 Abs

System Configuration

• CPU: ARM Cortex-A8 (800 MHz)
• Storage: 4GB memory

Operating Conditions

• Temperature: 10°C – 30°C
• Humidity: 30% – 80%

Power Supply

• AC 100–240V, 50/60 Hz

Conclusion

The ES-100P Semi-Auto Chemistry Analyzer is a dependable and efficient solution for laboratories seeking accurate results, flexible testing options, and easy operation. Its combination of advanced technology and user-friendly design makes it a valuable addition to any diagnostic setup.
