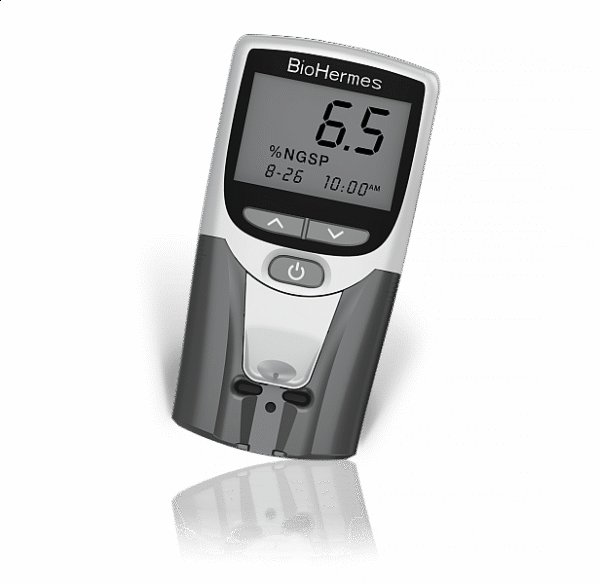

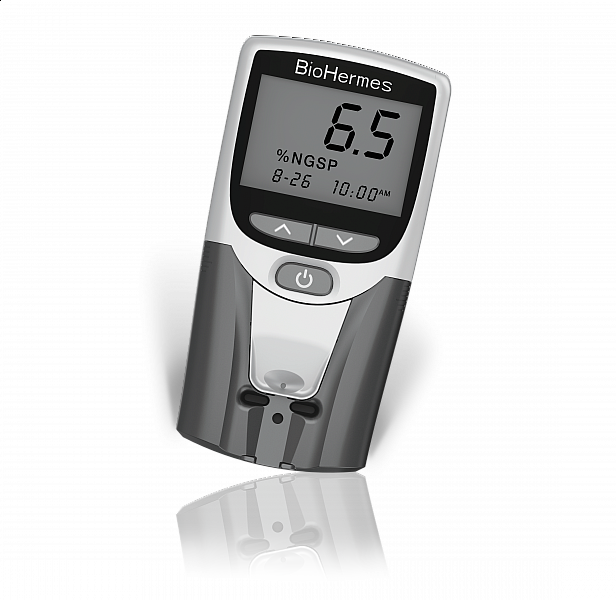

BioHermes HbA1c EZ 2.0 Glycohemoglobin Meter (with 25-Test Strips)

Product Specifications

Technical Specifications

• Testing Principle: Boronate Affinity Chromatography

• Analyte: Glycohemoglobin (HbA1c)

• Range: 4% – 14%

• Precision: CV < 3% (HbA1c: 4.0% – 6.5%)

• Sample Type: Fingertip or venous blood (EDTA anticoagulated)

• Sample Volume: ~3μL

• Test Time: ~5 minutes

• Results Units: NGSP (%) or IFCC (mmol/mol)

• Voice Guidance: Yes (throughout the process)

• Memory: Stores up to 1000 test results

• Connectivity: Mini USB, optional Bluetooth; compatible with HIS/LIS systems and thermal printers

• Power: 4 x AAA batteries

• Device Size: 61.5mm x 122.9mm x 24.5mm

• Screen Size: 47mm x 32mm

• Weight: 112g (excluding batteries)

• Operating Conditions: 10°C – 40°C, Humidity 30% – 70%

• Storage Conditions: -10°C – 50°C, Humidity <80%

Understanding HbA1c

• HbA1c forms through a non-enzymatic glycation process when hemoglobin is exposed to glucose.

• It reflects average blood sugar levels over several months.

• HbA1c is a primary indicator for diabetes management effectiveness.

• Lower HbA1c levels help reduce the risk of diabetes-related complications.

HbA1c Levels and Diagnosis

• HbA1c ≥ 6.5% (48 mmol/mol) indicates diabetes.

• Normal range: 4.0% – 5.7% (20–39 mmol/mol).

• Prediabetes range: 5.7% – 6.4% (39–46 mmol/mol).

About BioHermes A1C EZ 2.0 Analyzer

• Provides point-of-care testing for quick diabetes treatment decisions.

• Uses Boronate Affinity Chromatography for high precision (CV ≤ 3%).

• Requires just 1 drop of fingertip or venous blood.

• Results ready in 5 minutes.

• Test kit is stored at room temperature, making it easier to transport and eco-friendly.

Key Features

Accuracy

• NGSP and IFCC certified.

• Boronate Affinity Chromatography eliminates interference from HbF, HbE, and unstable hemoglobins.

• Delivers CV < 3% precision.

Convenience

• Room temperature storage for all components.

• Simple 3-step operation.

• Uses only 3μL of blood (capillary or venous).

Speed

• No preheating or manual calibration needed.

• Results in 5 minutes.
