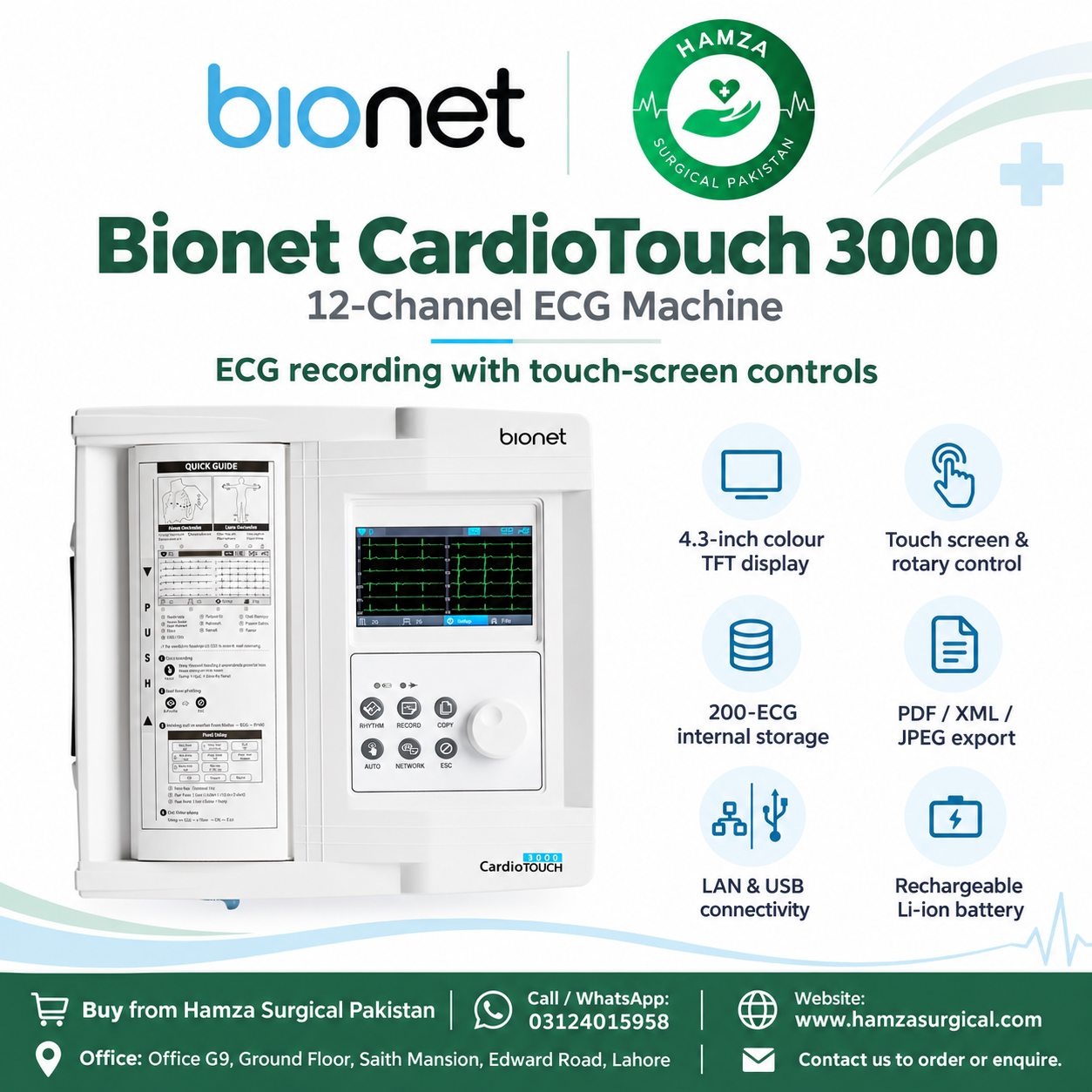

Product Specifications
| Feature | Details |
|---|---|
| ECG Leads | Simultaneous 10 Leads Resting ECG (12 channel) |
| Display | 4.3” Color TFT Display, 272 x 480 Pixel Resolution, 12 Channels Preview |
| User Interface | Touch Screen, Rotary Push-knob |
| Dimensions | 290 (W) x 300 (D) x 97.5 (H) mm |
| Weight | Approximately 3.5 kg |
| Channels | 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 1CH Long Time (1 min), Beat Report |
Performance
| Sensitivity | 2.5, 5, 10, 20, Auto (IaVF: 10, V1V6: 5) mm/mV | | Printing Speed | 5, 12.5, 25, 50, 100 mm/sec | | Sampling Rate | Analysis: 500 samples/sec, Digital: 8,000 samples/sec | | Filters | AC: 50/60Hz, Muscle: 2535Hz, Baseline Drift: 0.05, 0.1, 0.2Hz, Low Pass: 40, 100, 150Hz | | Export File Formats | ECG, XML, PDF, JPEG, MFER | | Basic Measurement | HR: 30300bpm (±3bpm), PR, QRS, QT/QTc, P-R-T axis | | ECG Data Storage | Internal Memory: 200 ECGs, External Memory Supported |
Electrical and Signal Quality
| Input Impedance | More than 50MΩ | | Input Voltage Range | ±5mV | | Noise Level | 20µV (p-p) max | | Frequency Response | 0.05~150Hz within -3dB | | CMRR | Greater than 105dB | | Patient Leakage Current| <10µA | | Safety | Class I, Type CF, Defibrillation-proof applied part | | Signal Control | Pacemaker Pulse Detection, Lead Fault Detection, Signal Saturation Detection |
Battery and Power
| Battery Type | Replaceable and Rechargeable Lithium-Ion (11.1V, 2600mAh) | | Battery Capacity | 6 hours of normal use (200 ECGs without recording); Charge time: 3 hours | | Power Supply | Input: 100-240Vac, 1.5-0.75A, 50-60Hz; Output: 15Vdc, 4.2A |
Communication and Connectivity
| Communication Options | LAN, USB, Wi-Fi (optional) |
Environmental Specifications
| Operating Temperature | 540°C | | Operating Humidity | 1090% RH | | Atmospheric Pressure | 70~106 KPa |
Standard Accessories
| Item | Quantity |
|---|---|
| Power Cord | 1 |
| Patient Cable | 1 |
| ECG Clips | 1 set |
| Disposable Electrodes | 1 pouch |
| Chart Paper | 1 |
| Rechargeable Battery | 1 |
| Operation Manual | 1 |
Optional Accessories
- Cart
- Hanger
- USB Wi-Fi Dongle
