CONTEC 300GA 3-Channel ECG Machin

Product Specifications

• 3-channel ECG
• Multi-language interface
• Auto-analysis report
• Accurate and efficient
• Real-time print
• Artificial intelligence

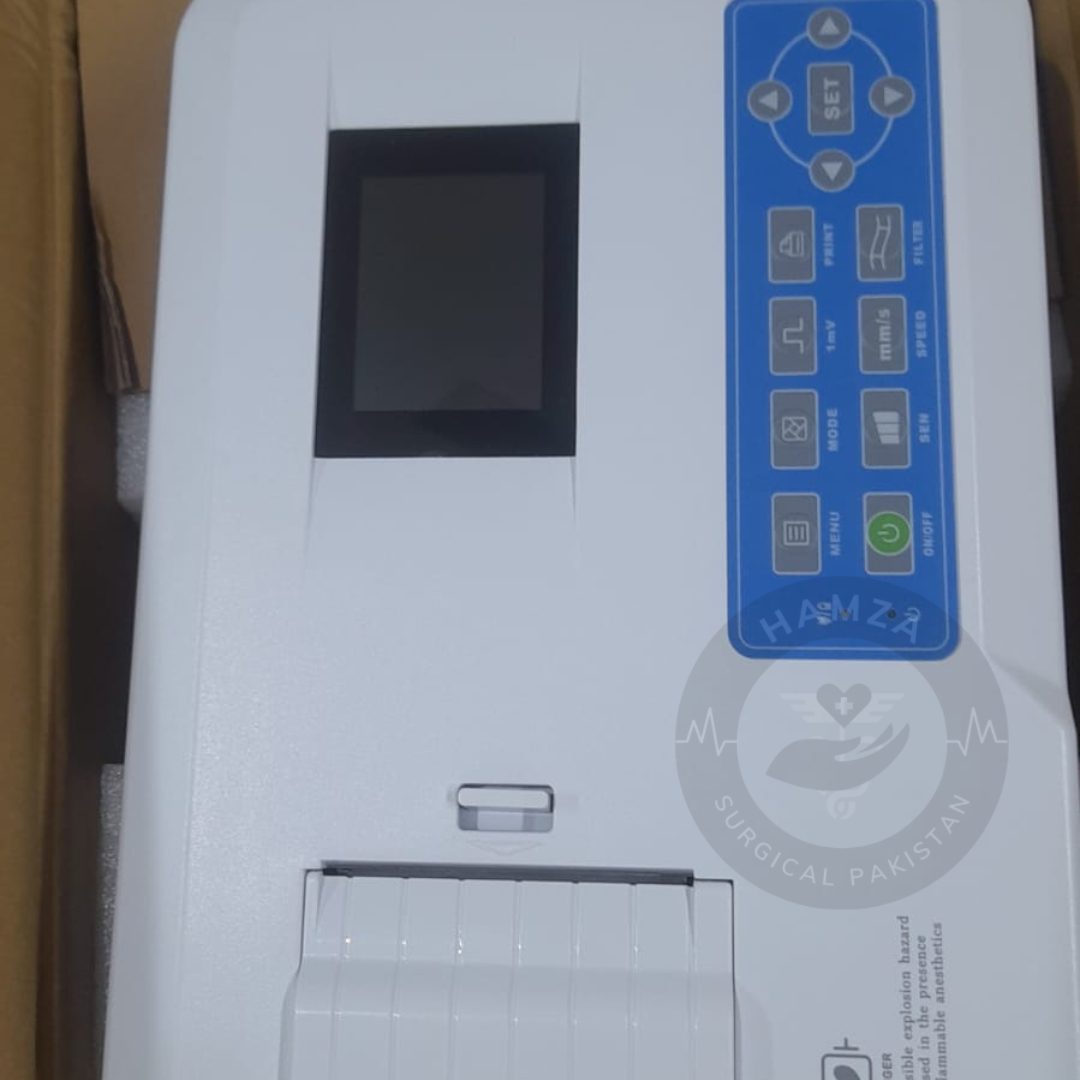

ECG300GA is an Electrocardiograph which can collect 12-lead ECG signal simultaneously and print waveform by the thermal printing system. It features in recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, case database management.

Function

• Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
• Display of 1/3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc., on one screen, convenient for contrastively diagnosing.
• Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, etc. Waveform length printed can be adjusted, and with timed print function, which meets different requirements.
• With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R (V5)+S(V1), etc. which reduces the doctor’s burden.
• Build-in memory stores 15 cases, optional SD card stores up to 100 cases, which is convenient for doctor to review case and statistic.
• Multi-language (Chinese, English) interface and report.
• Optional ECG-Sync software, connect with PC by USB2.0 interface to form an ECG workstation, import real-time data to the software for analyzing and report printing, and old cases stored in Electrocardiograph can be uploaded to PC.
• Power supply: AC/DC and built-in rechargeable lithium battery. In optimal DC state, up to 4-hour standby time, continuous print 70-minute and 175-ECG, which meets the requirements of visiting a patient at home and body examination.

Discover the CONTEC 300GA 3-Channel ECG Machin at Hamza Surgical, your trusted source for premium health devices. We take pride in providing 100% Original CONTEC 300GA 3-Channel ECG Machin, guaranteeing both quality and performance, with competitive price of Rs. 74,999. Shop now and experience seamless experience with trusted solutions!
