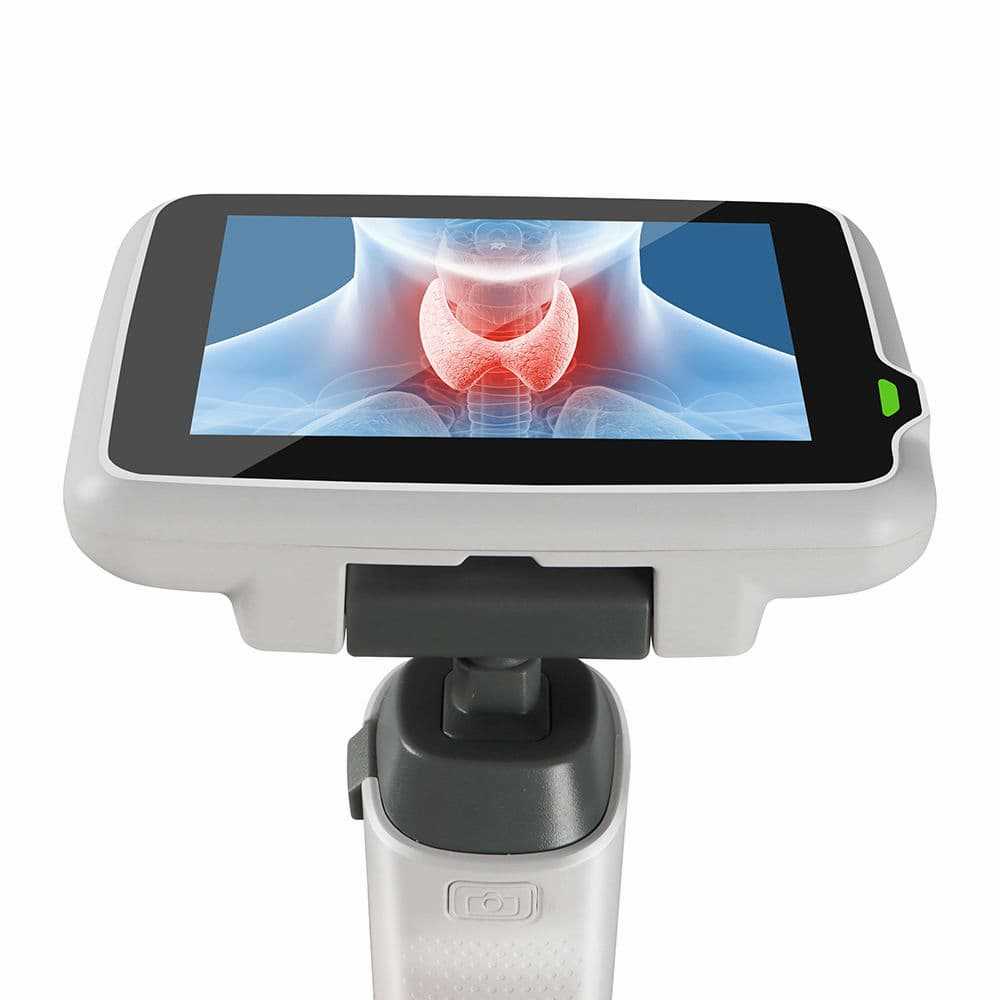

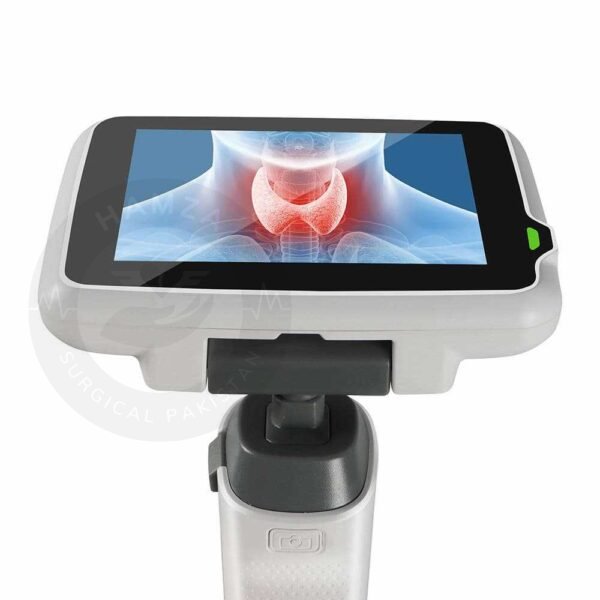

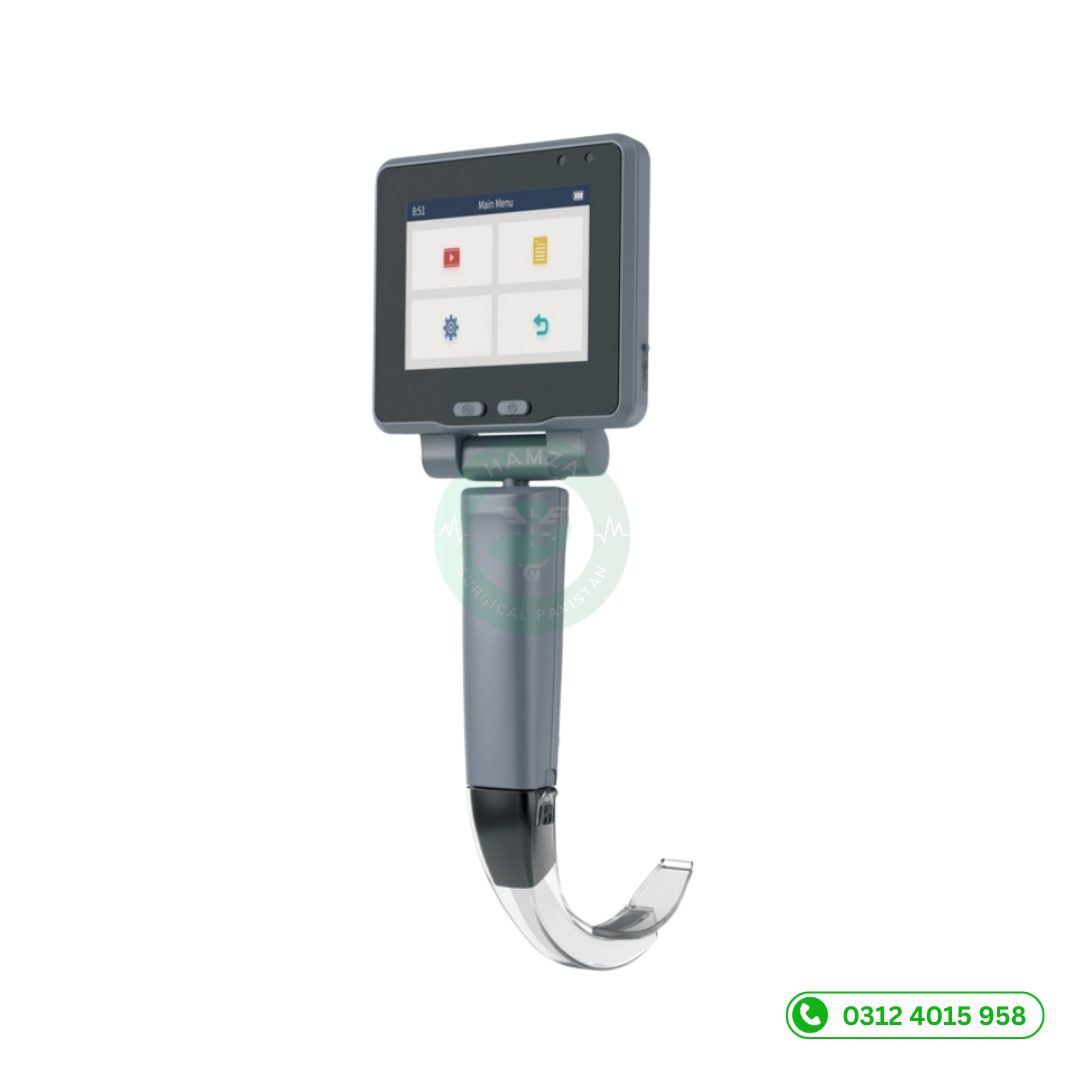

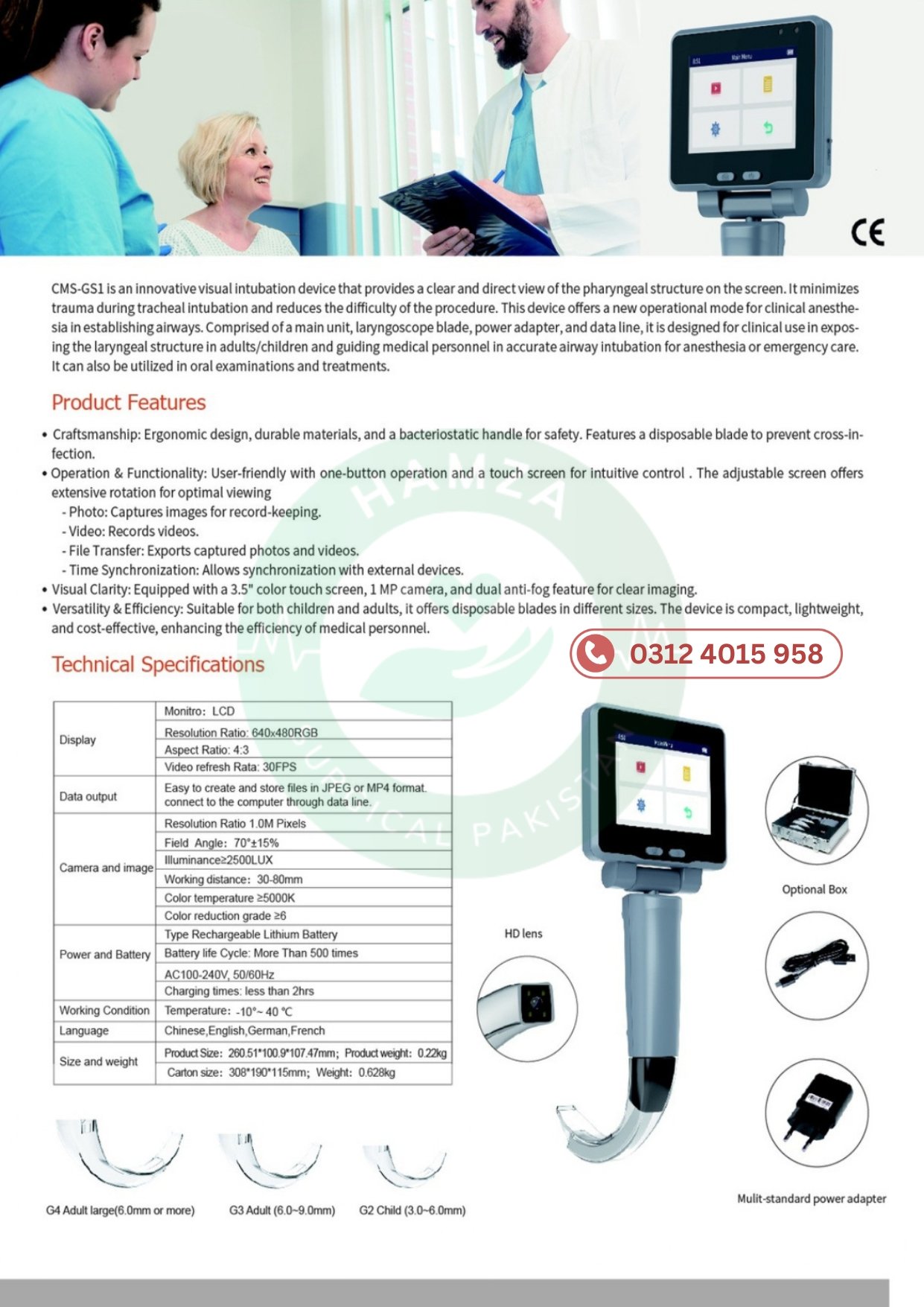

CONTEC CMS-GS1 Digital Video Laryngoscope

Product Specifications

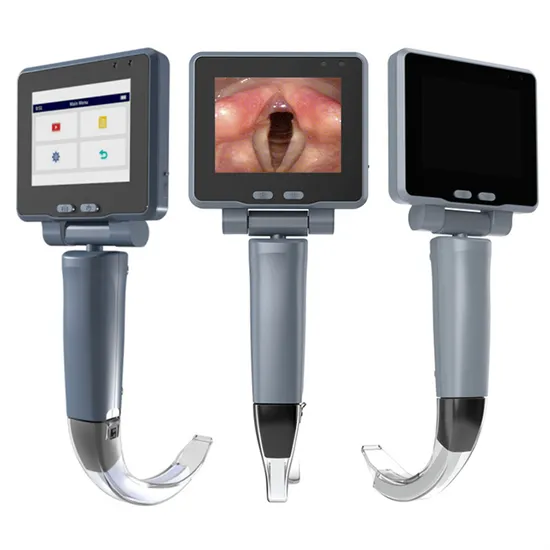

CMS-GS1 is an innovative visual intubation device that provides a clear and direct view of the pharyngeal structure on the screen. It minimizes trauma during tracheal intubation and reduces the difficulty of the procedure. This device offers a new operational mode for clinical anesthesia in establishing airways.

Comprised of a main unit, laryngoscope blade, power adapter, and data line, it is designed for clinical use in exposing the laryngeal structure in adults/children and guiding medical personnel in accurate airway intubation for anesthesia or emergency care. It can also be utilized in oral examinations and treatments.

Product Features

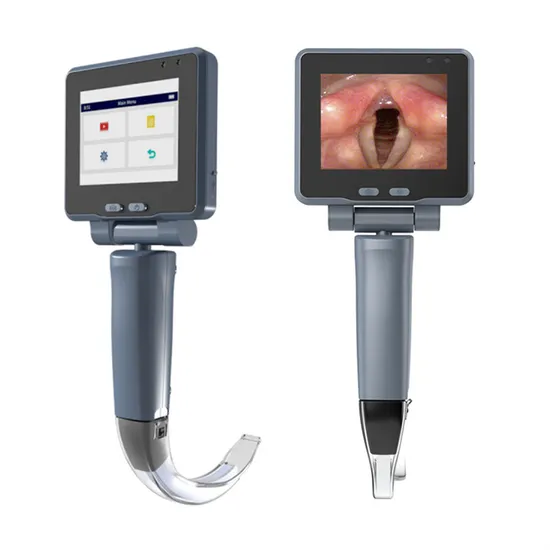

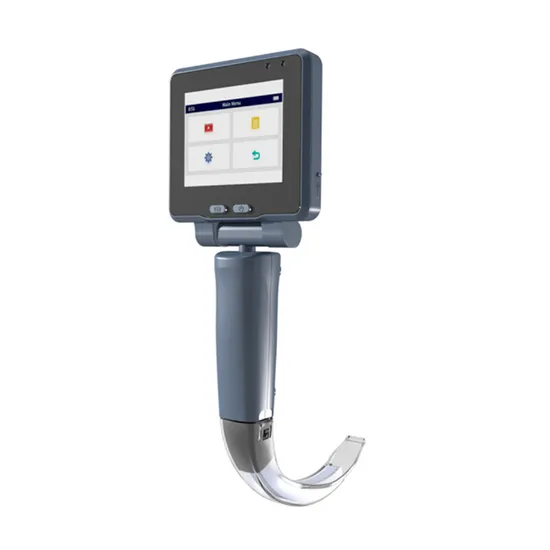

Craftsmanship

• Ergonomic design, durable materials, and a bacteriostatic handle for safety.

• Features a disposable blade to prevent cross-infection.

Operation & Functionality

• User-friendly with one-button operation and a touch screen for intuitive control.

• The adjustable screen offers extensive rotation for optimal viewing.

Multimedia Functions

• Photo: Captures images for record-keeping.

• Video: Records videos.

• File Transfer: Exports captured photos and videos.

• Time Synchronization: Allows synchronization with external devices.

Visual Clarity

• Equipped with a 3.5″ color touch screen, 1 MP camera, and dual anti-fog feature for clear imaging.

Versatility & Efficiency

• Suitable for both children and adults.

• Offers disposable blades in different sizes.

• Compact, lightweight, and cost-effective, enhancing the efficiency of medical personnel.

Technical Specifications

Display & Imaging

• Monitor: LCD

• Resolution Ratio: 640×480 RGB

• Display Aspect Ratio: 4:3

• Video Refresh Rate: 30FPS

• Camera Resolution: 1.0 MP

• Field Angle: 70°±15%

• Illuminance: ≥2500 LUX

• Working Distance: 30-80 mm

• Color Temperature: ≥5000K

• Color Reduction Grade: 26

• HD Lens

Data Output

• Easy to create and store files in JPEG or MP4 format.

• Connects to the computer through data line.

Power and Battery

• Type: Rechargeable Lithium Battery

• Battery Life Cycle: More than 500 times

• Charging Input: AC 100-240V, 50/60Hz

• Charging Time: Less than 2 hours

Working Conditions

• Temperature Range: -10°C ~ 40°C

• Languages: Chinese, English, German, French

Size and Weight

• Product Size: 260.51 × 100.9 × 107.47 mm

• Product Weight: 0.22 kg

• Carton Size: 308 × 190 × 115 mm

• Carton Weight: 0.628 kg

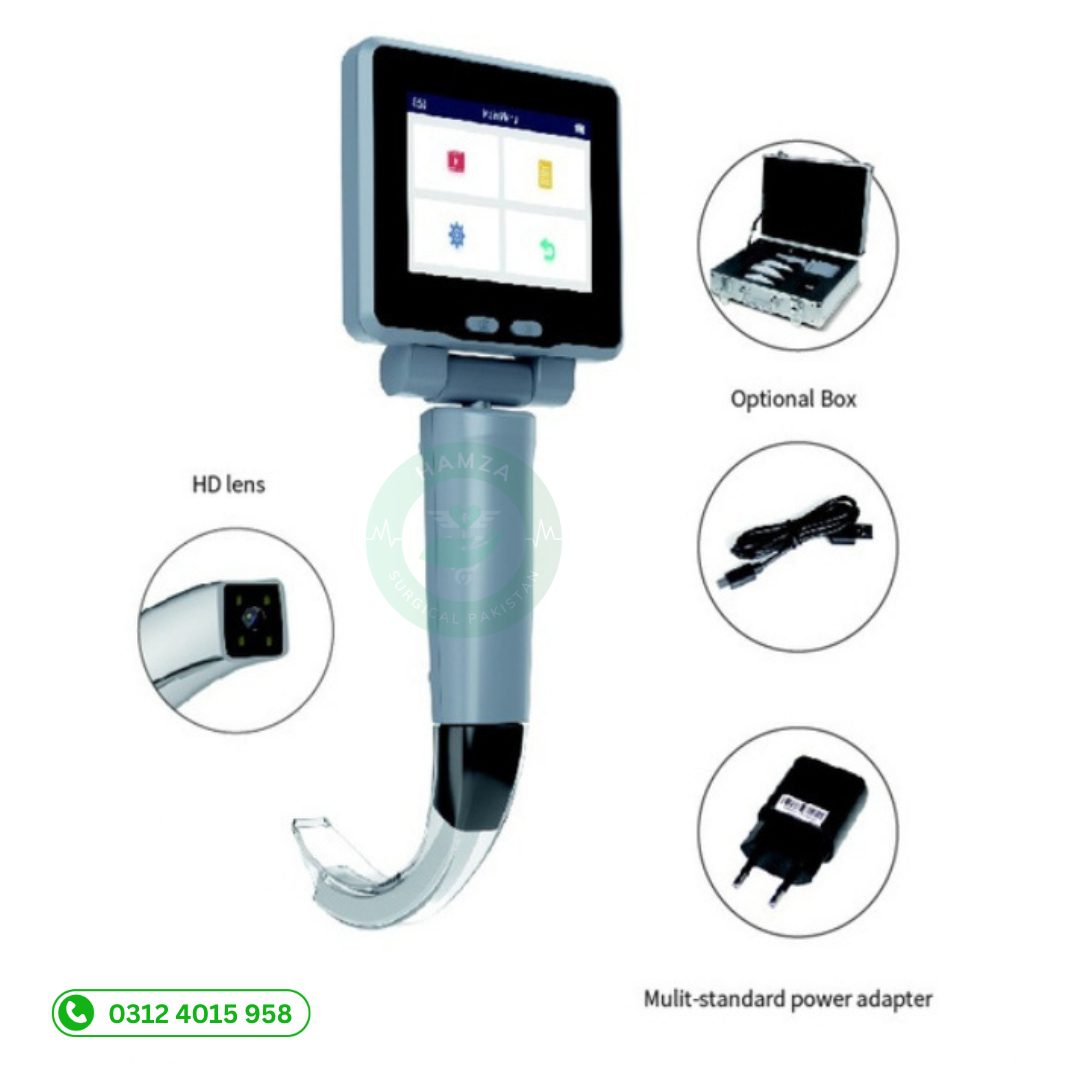

Optional Accessories

• Multi-standard power adapter

• Optional Box
