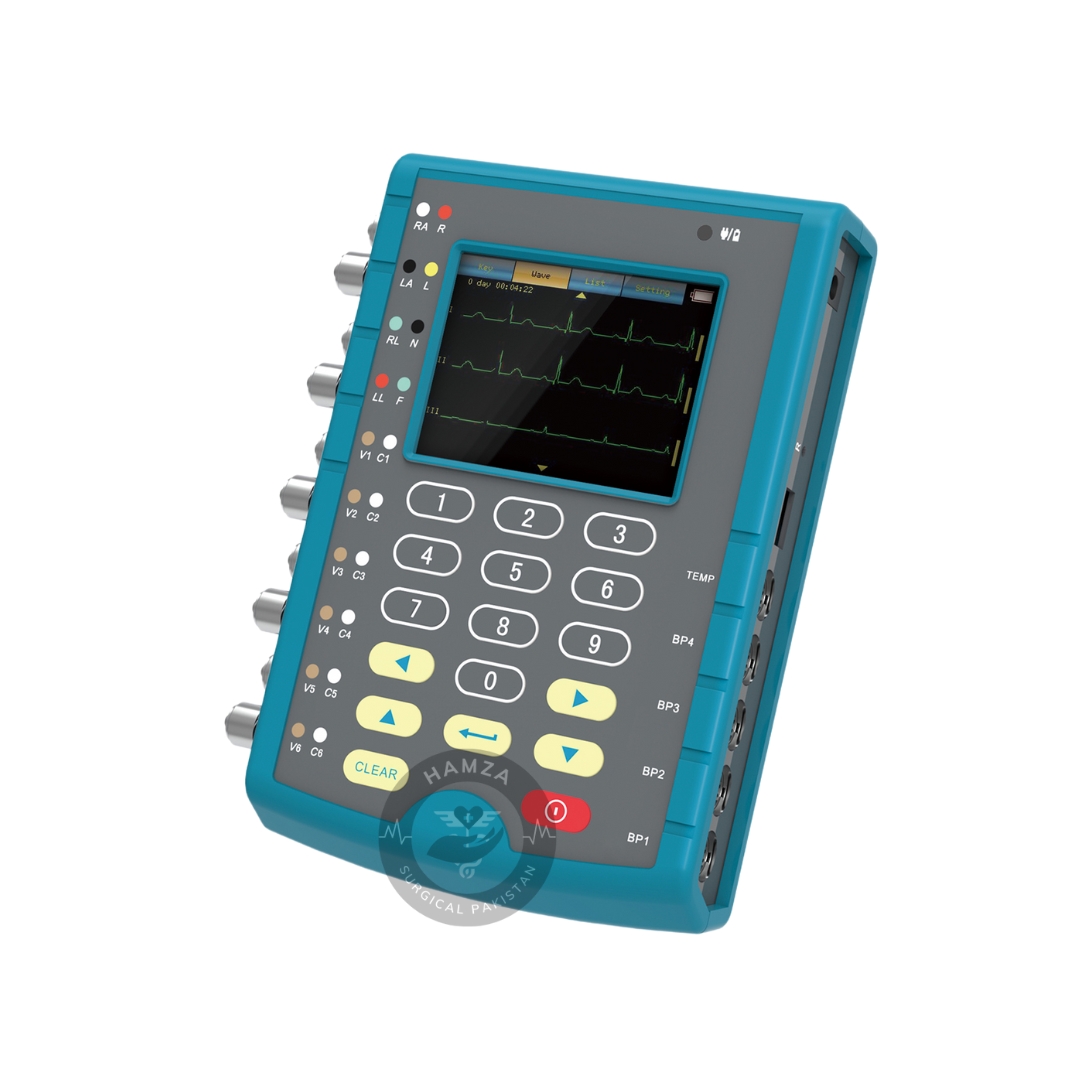

CONTEC MS-400 Multiparameter Simulator

Description

Product Category

• Medical Devices

  • Biomedical Test Equipment

    • Patient Monitor Simulators

    • Multiparameter Simulators

Product: MS400 Multiparameter Simulator

Key Features

• Portable, compact, and lightweight design.
• Simulates 12-lead ECG, respiration, temperature, 2-channel or 4-channel IBP.
• Can be tested wherever the patient monitor is used.
• Touchscreen + key operation modes.
• Rechargeable lithium battery or AC adapter power.
• Displays and exports waveforms (ANSI/AAMI EC13-2002, AHA, MIT ECG database, TF card, user-defined).

Performance

1. ECG Simulation

• Conventional ECG: all leads with II-lead as reference.
• Amplitude: 0.5, 1.0, 1.5, 2.0 mV.
• Rate: 0 – 350 bpm (multiple steps).
• Artifacts: 50/60 Hz, muscle, baseline, breathing.
• ST segment elevation: +0.8 to -0.8 mV (0.1 mV step).
• Arrhythmias (35 types):

• • Atrial: Fib (coarse/fine), Flutter, Tachycardia, PAC, etc.

  • Ventricular: Fib (coarse/fine), Tachycardia, PVCs (various types), Asystole.

  • Conduction Defects: 1st, 2nd, 3rd degree blocks, RBBB, LBBB.

• Pacemaker waveforms: asynchronous, demand, A/V sequential, non-capture, etc.

2. IBP (Invasive Blood Pressure) Simulation

• 4 channels: artery, radial, ventricle, atrium, pulmonary artery, wedge pressures.
• Auto/Manual Swan-Ganz simulation (RA, RV, PA, PAW).
• Static pressure levels: multiple ranges (up to 400 mmHg).

3. Respiration Simulation

• Adjustable respiration rate.
• Impedance: 0.2, 0.5, 1.0, 3.0 Ω.
• Baseline impedance: 500 – 2000 Ω.
• Apnea: 12s, 22s, 32s.

4. Temperature Simulation

• 4 values: 0°C, 24°C, 37°C, 40°C.

5. Waveforms

• Square, triangle, pulse, sine waves with adjustable frequency.
• Standard ECG calibration for adult and pediatric.

Accessories

• Power adapter (9V/1A) – CE/UL certified.
• Temperature cable.
• IBP cable.
• CD (with case conversion software).
• User manual.
• Packaging box.

Physical Characteristics

• Dimensions: 18.86 × 12.50 × 4.32 cm.
• Weight: ~1.4 kg.

This product is widely used in hospitals, biomedical engineering departments, and equipment service centers for verifying and calibrating patient monitors.
