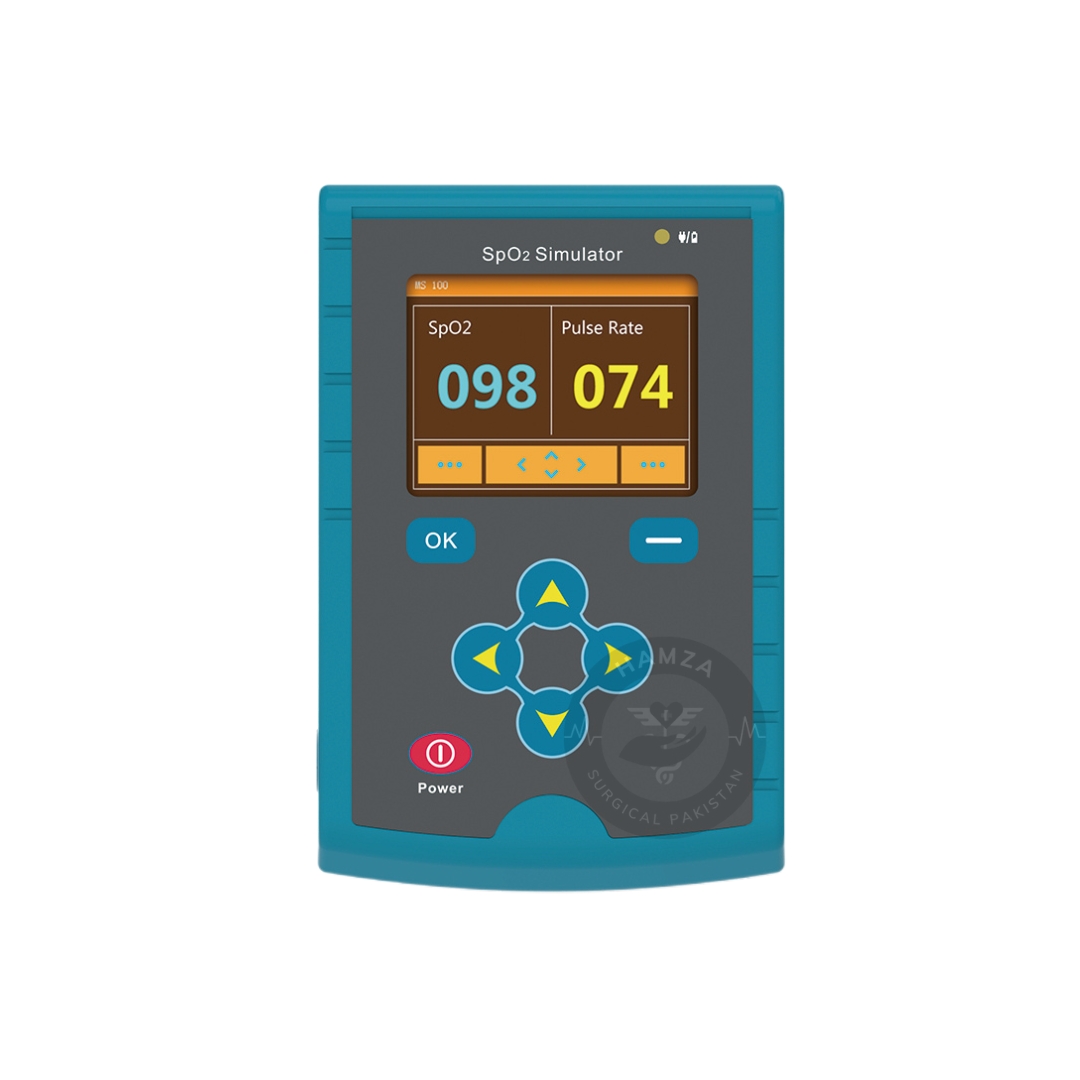

CONTEC MS100 SpO₂ Simulator

Description

Manufacturer: Contec Medical Systems Co., Ltd.
Model: MS100

Overview

The MS100 SpO₂ Simulator is a compact and lightweight device designed to test and verify the accuracy of pulse oximeters. By simulating SpO₂ and pulse rate under various conditions, it provides an accurate reference for performance validation. The device comes preloaded with popular R-curves (e.g., BCI, Masimo, Nellcor) to ensure compatibility with multiple oximeter brands.

Key Functions

• Simulation of SpO₂ and Pulse Rate.
• Supports testing under 50 Hz / 60 Hz electrical interference and light interference.
• Adjustable perfusion index (PI) for testing under different perfusion conditions.
• Tests the reaction time of SpO₂, pulse rate, and cardiac arrest detection.
• 10 Built-in R Curves (e.g., BCI, Masimo, Nellcor) – customizable on request.
• 24 Preset Patient States, including weak pulse, bradycardia, hypoxia, infant, tachycardia, aged, obesity, etc.

Main Parameters

SpO₂ Simulation

• Range: 35% – 100%

• Resolution: 1%

• Accuracy:

  • 75% – 100%: ±2% or ± device’s accuracy (whichever is greater)

  • 74% – 50%: ±3% or ± device’s accuracy (whichever is greater)

  • <50%: Not defined

Pulse Rate Simulation

• Range: 20 – 250 bpm
• Resolution: 5 bpm
• Accuracy: 1% ± 1 bpm

Low Perfusion Simulation

• Range: 0.000% – 20.000%

• Resolution:

  • 1.000% – 20.000% → 1%

  • 0.100% – 0.900% → 0.1%

  • 0.000% – 0.075% → 0.025%

Physical Characteristics

• Dimensions: 189 mm (L) × 125 mm (W) × 56 mm (H) (including bracket)
• Weight: ~600 g (with lithium battery)

Power Supply

• Battery: 3.7 V rechargeable lithium battery
• Adapter: 5.0 V external power supply

Accessories

• 1 × User Manual

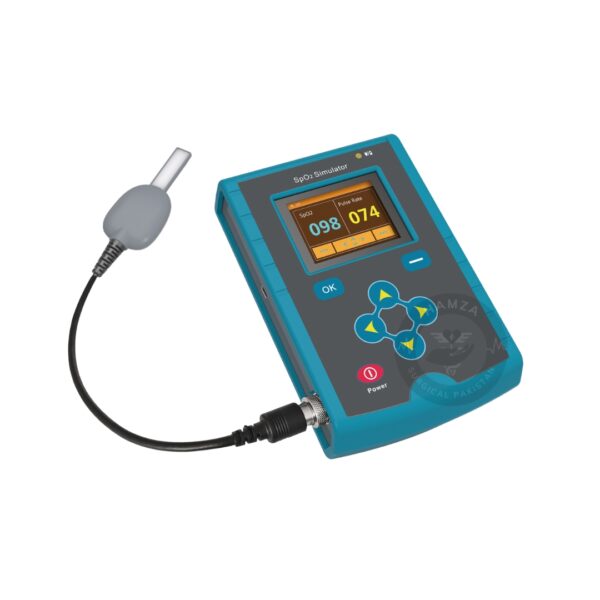

• 1 × Simulator Finger (MS100-SP)
• 1 × Adapter (5.0 V)

Product Category

• Medical Devices

  • Diagnostic Equipment

  • Patient Monitor Testing Devices

  • SpO₂ Simulators / Pulse Oximeter Testers
