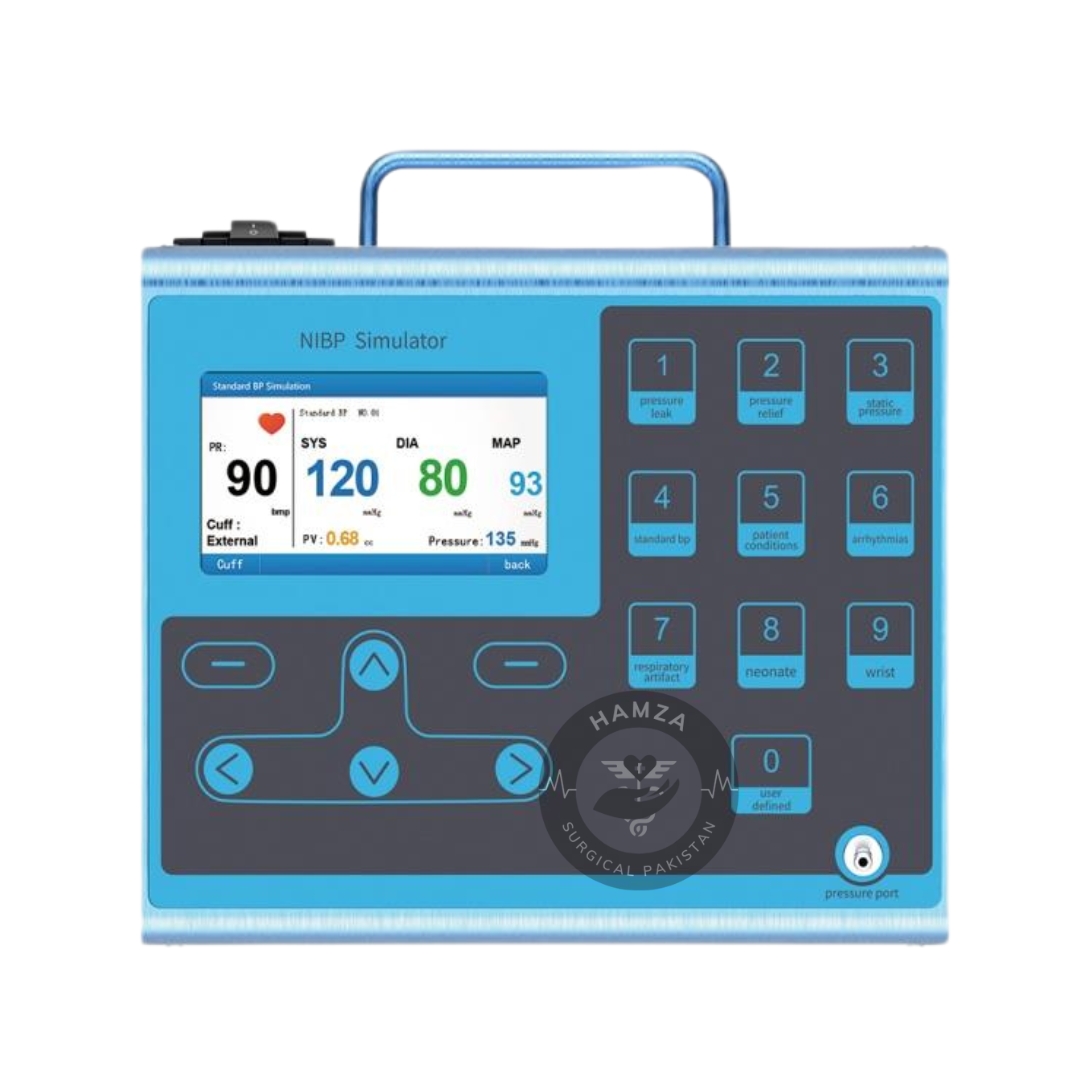

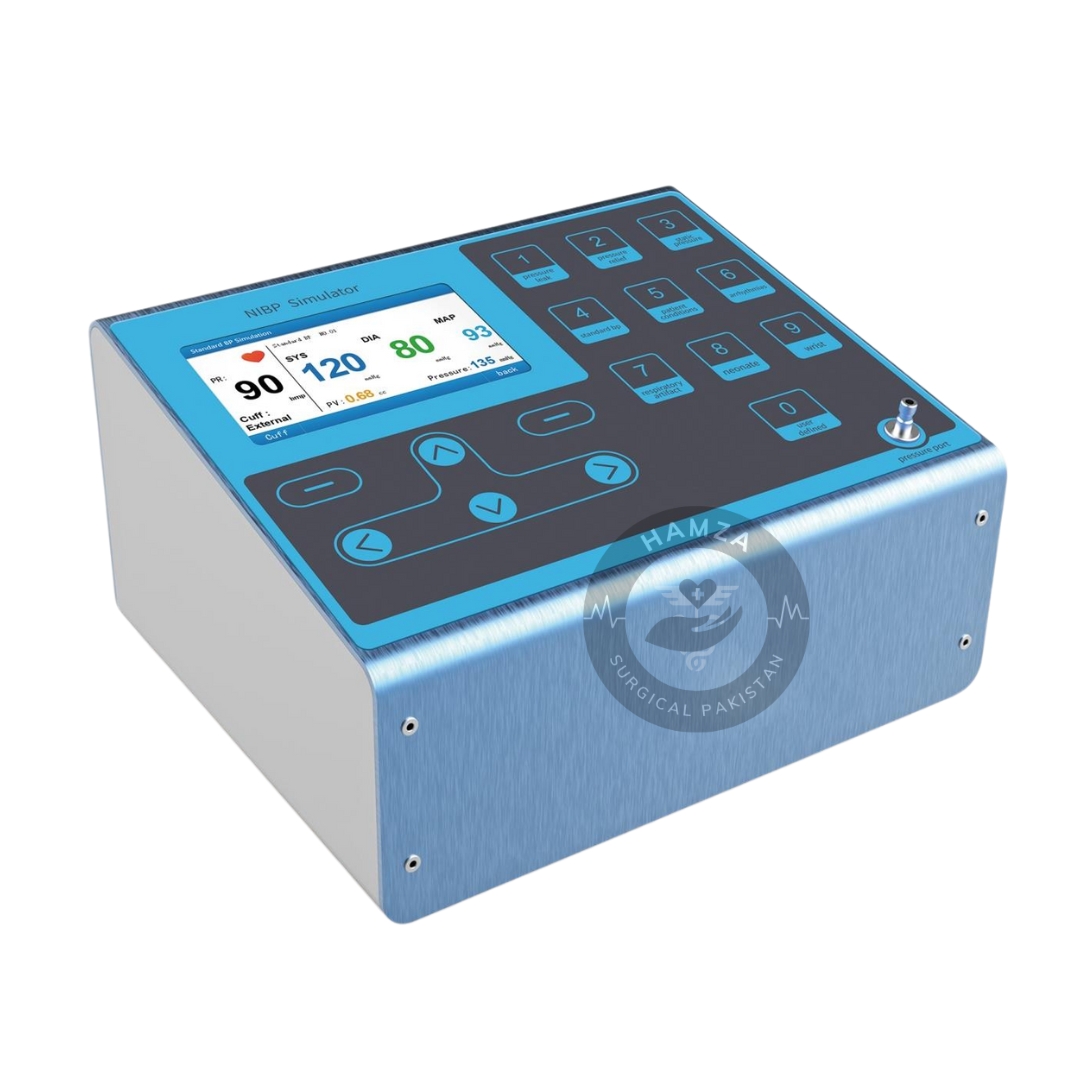

CONTEC MS200 NIBP Simulator

Description

Manufacturer: Contec Medical Systems Co., Ltd.
Model: MS200

Overview

The MS200 NIBP Simulator is a versatile testing device designed for validating the accuracy and performance of NIBP (Non-Invasive Blood Pressure) Monitors using oscillometric methods. With its built-in air pump, it can generate pressures up to 400 mmHg (53.3 kPa) and perform a wide range of simulations, including dynamic BP, static pressure calibration, leak tests, and over-pressure relief tests. Its compact design, 4.3″ color LCD display, and user-friendly interface make it ideal for clinical engineering, biomedical testing, and hospital equipment maintenance.

Key Functions

• Pressure Gauge Testing, Leak Test & Over-Pressure Relief functions.
• Built-in air pump for providing pressure source during leak and over-pressure tests.
• Dynamic BP Simulation – simulates both arm and wrist BP conditions.
• Multiple simulation modes: Adult, Neonatal, 8 patient conditions, and user-defined states.
• Simulations under arrhythmia and respiratory interference.
• Built-in air chamber to simulate adult and neonatal cuffs.
• 4.3″ 65K Color LCD Display for clear parameter visualization.

Performance Specifications

Blood Pressure Simulation Range

• Systolic Pressure: 2.7 kPa (20 mmHg) – 40.0 kPa (300 mmHg)
• Diastolic Pressure: 1.3 kPa (10 mmHg) – 33.3 kPa (250 mmHg)
• Pulse Volume: 0.1 cc – 2.4 cc

Heart Rate (HR) Simulation

• Range: 30 – 250 bpm (pulse volume > 2.00 cc, max HR = 200 bpm)
• Accuracy: ±1 bpm (except under arrhythmia/respiratory disturbance)
• Patient Conditions:

• • Weak pulse, tachycardia, obese, geriatric → ± (preset value × 1% +1) bpm

  • Moderate exercise → ± (preset value × 1.5% +1) bpm

  • Strenuous exercise → ± (preset value × 3% +1) bpm

Pressure Measurement

• Range: 0 kPa (0 mmHg) – 53.3 kPa (400 mmHg)

• Resolution: 0.1 kPa, 1 mmHg, 1 cmH₂O, 1 inH₂O, 0.1 psi

• Accuracy:

  • 0 – 40.0 kPa (0 – 300 mmHg): ± (0.5% of reading + 0.1 kPa / 1 mmHg)

  • 40.1 – 53.3 kPa (301 – 400 mmHg): ±2% of reading

Pressure Source

• Output Range: 6.7 kPa (50 mmHg) – 53.3 kPa (400 mmHg)
• Resolution: 0.1 kPa, 1 mmHg, 1 cmH₂O, 1 inH₂O, 0.1 psi
• Deviation: ±1.3 kPa (±10 mmHg) within 13.3 – 53.3 kPa (100 – 400 mmHg) at ≥300 cc volume

Airtightness

• Total Airtightness: <0.3 kPa/min (2.25 mmHg/min) in OFF state
• Built-in Cuff Airtightness: ≤0.27 kPa/min (2 mmHg/min)

Physical Characteristics

• Display: 4.3” 65K Color LCD
• Power Supply: AC 100–240 V, 50/60 Hz, <60 VA
• Operating Temperature: +5 °C – +40 °C
• Relative Humidity: <90%, non-condensing

Accessories

• 1 × User Manual
• 2 × Fuses
• 1 × Power Cord

Product Category

• Medical Devices

  • Diagnostic Equipment

  • Biomedical Test Equipment

  • NIBP Simulators / Blood Pressure Monitor Testers
