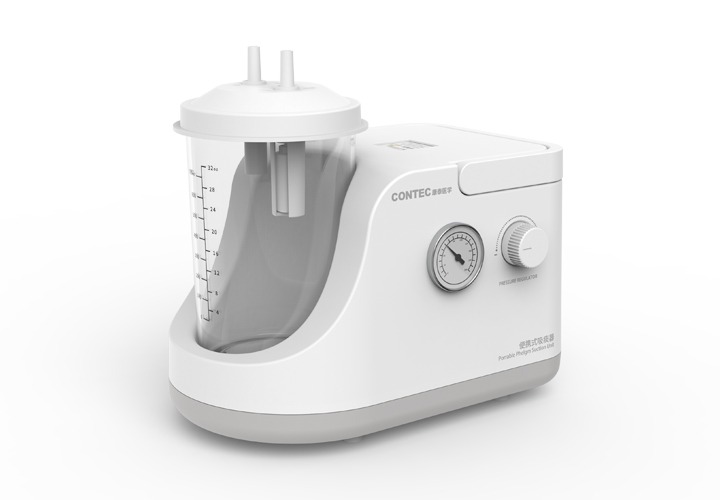

CONTEC SA100 Portable Phlegm Suction Unit

Product Specifications

The SA100 is a compact, portable medical suction device designed to help remove phlegm (sputum) and secretions from patients who have difficulty clearing their airways naturally. It is commonly used in hospitals, clinics, and other healthcare settings for treating respiratory conditions.

It operates as a negative-pressure (vacuum) suction system and is classified as a medical electrical device.

Main Features

• Powered directly by AC electricity (no battery required in standard models)
• Uses an oil-free piston pump — reliable, low-maintenance, and clean (no oil contamination risk)
• Simple operation: connect the suction tubing, turn on the device, and adjust the vacuum level using the control knob
• Adjustable negative pressure for safe and customized use
• Includes a vacuum gauge for precise pressure monitoring
• Quiet performance thanks to built-in noise reduction (damping and silencer system)
• Equipped with a medical-grade air filter to prevent contamination

Technical Specifications

• Power Supply — AC 220V, 50Hz
• Input Power — 90 VA
• Maximum (Limit) Negative Pressure — ≥ 0.070 MPa (70 kPa)
• Adjustable Negative Pressure Range — 0.02 MPa to maximum value
• Suction Flow Rate — Typically around 15–20 L/min (common for this model class; confirm with exact unit)
• Collection Bottle Capacity — 1000 mL or 1500 mL (1–1.5 liters, overflow protection included)
• Dimensions — Approximately 280 × 180 × 175 mm
• Weight — About 3.0 kg (lightweight and portable)
• Electrical Safety — Type B applied part (safe for patient contact)
• Noise Level — Low (silent operation design)

Intended Use

Primarily for patients in medical facilities who cannot cough up or clear phlegm on their own, such as those with respiratory illnesses, post-surgery recovery, or weakened conditions. It supports effective airway clearance to prevent complications.

Included Accessories (typical package)

• Main unit
• Liquid collection bottle(s)
• Silicone suction tubes (long and short)
• Air filter
• Suction catheters/tips
• User manual

This device is straightforward to use, portable, and effective for basic phlegm aspiration needs in clinical environments. Always follow medical guidelines and the manufacturer’s instructions for safe operation.
