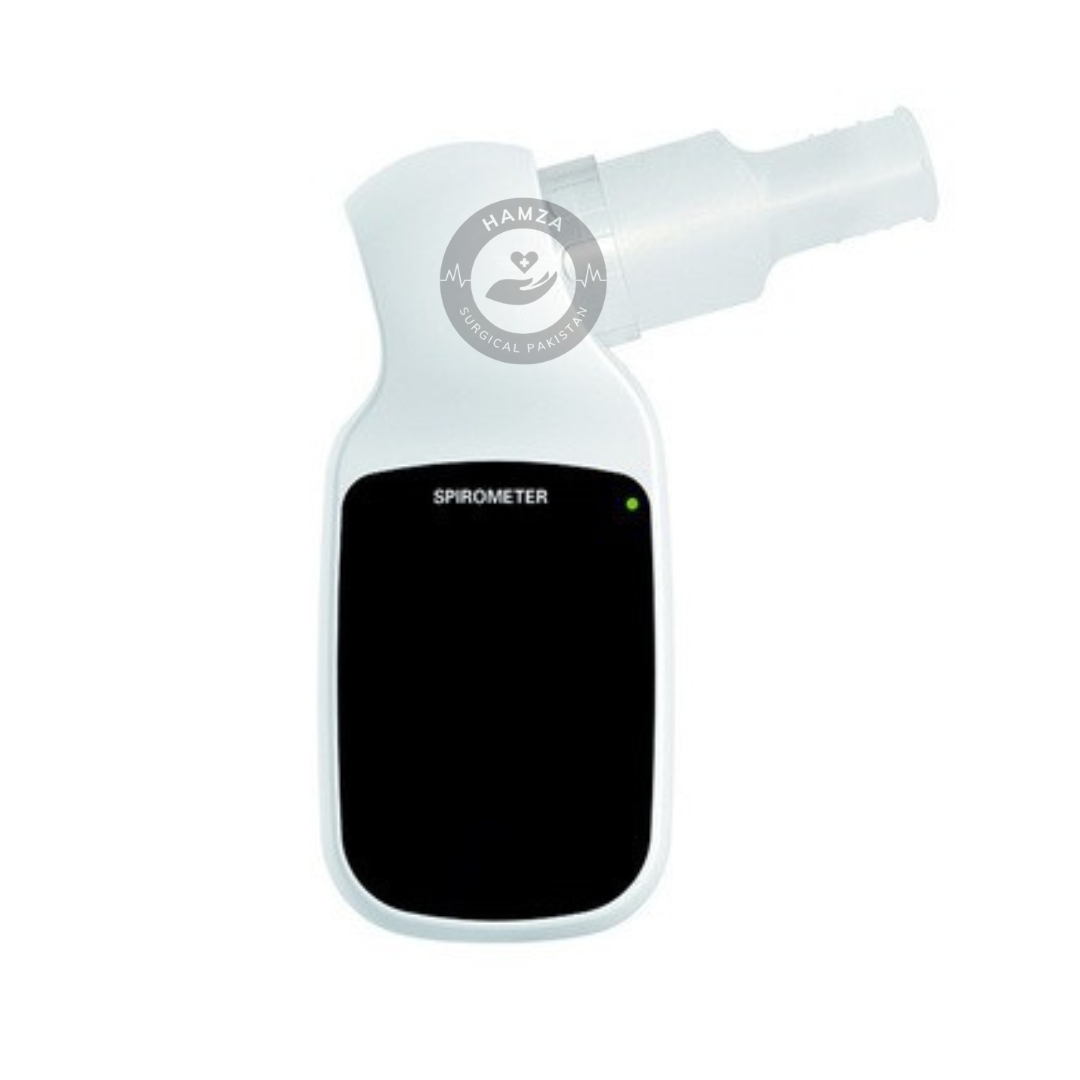

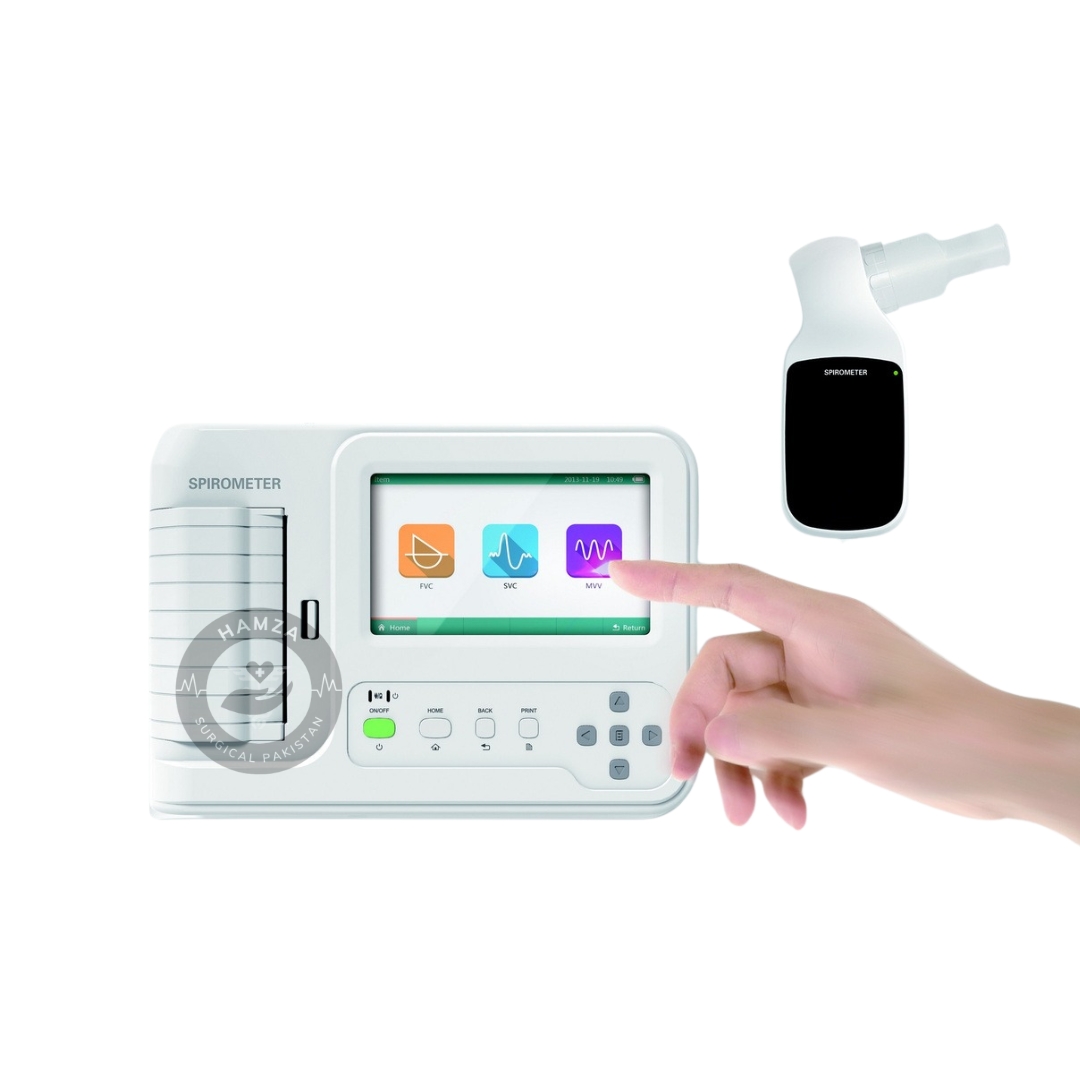

CONTEC SP100 Spirometer

Description

Model: SP100
Type: Spirometer
Application: Portable lung function testing device for hospitals, clinics, schools, communities, factories, and occupational health screenings.

Key Features

• Measurement of FVC, VC/SVC, MVV, and 50+ related parameters
• Automatic lung age assessment
• Self-correcting (BTPS) function for environmental compensation
• Real-time respiratory waveform display (Flow–Volume loop & Volume–Time curve)
• 7” Color LCD Touchscreen with button + touch operation
• Incentive animation guide for children and elderly users
• Built-in thermal printer (direct report printing)
• Calibration function for accurate measurements
• Multiple predicted values to suit different populations
• Data storage: >10,000 groups
• Rechargeable lithium battery + AC/DC power support
• Portable design for flexible use in multiple environments

Measurement Parameters

Forced Vital Capacity (FVC):

FVC, FEV1, PEF, FEV1/FVC, FEF25, FEF50, FEF75, FEF25-75, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVW, etc.

Vital Capacity (VC/SVC):

VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tE, TV/tI, tI/ttot

Maximum Voluntary Ventilation (MVV):

MVV

Performance

• Volume Range: 0–10 L (FVC)
• Volume Accuracy: ±3% or ±0.05 L (whichever is greater)
• Flow Range: 0–16 L/s
• Flow Accuracy: ±5% or ±0.2 L/s (whichever is greater)
• Test Data Storage: >10,000 groups
• Power Supply: 100–240 V~, 50/60 Hz
• Input Power: 60 VA
• Safety Type: Class I equipment, Type BF applied part
• Screen: 7″ color TFT touch screen
• Printer: Built-in, thermal printing (paper size: 112 mm × 20 m)

Physical Characteristics

• Dimensions: 315 × 215 × 92 mm
• Weight: 1.8 kg

Accessories

• Spirometer (1 pc)
• Nose clip (1 pc)
• Power cord (1 pc)
• Disposable mouthpieces (4 pcs)
• Recording paper (1 roll)
• User manual (1 pc)
• Disposable breathing filter
