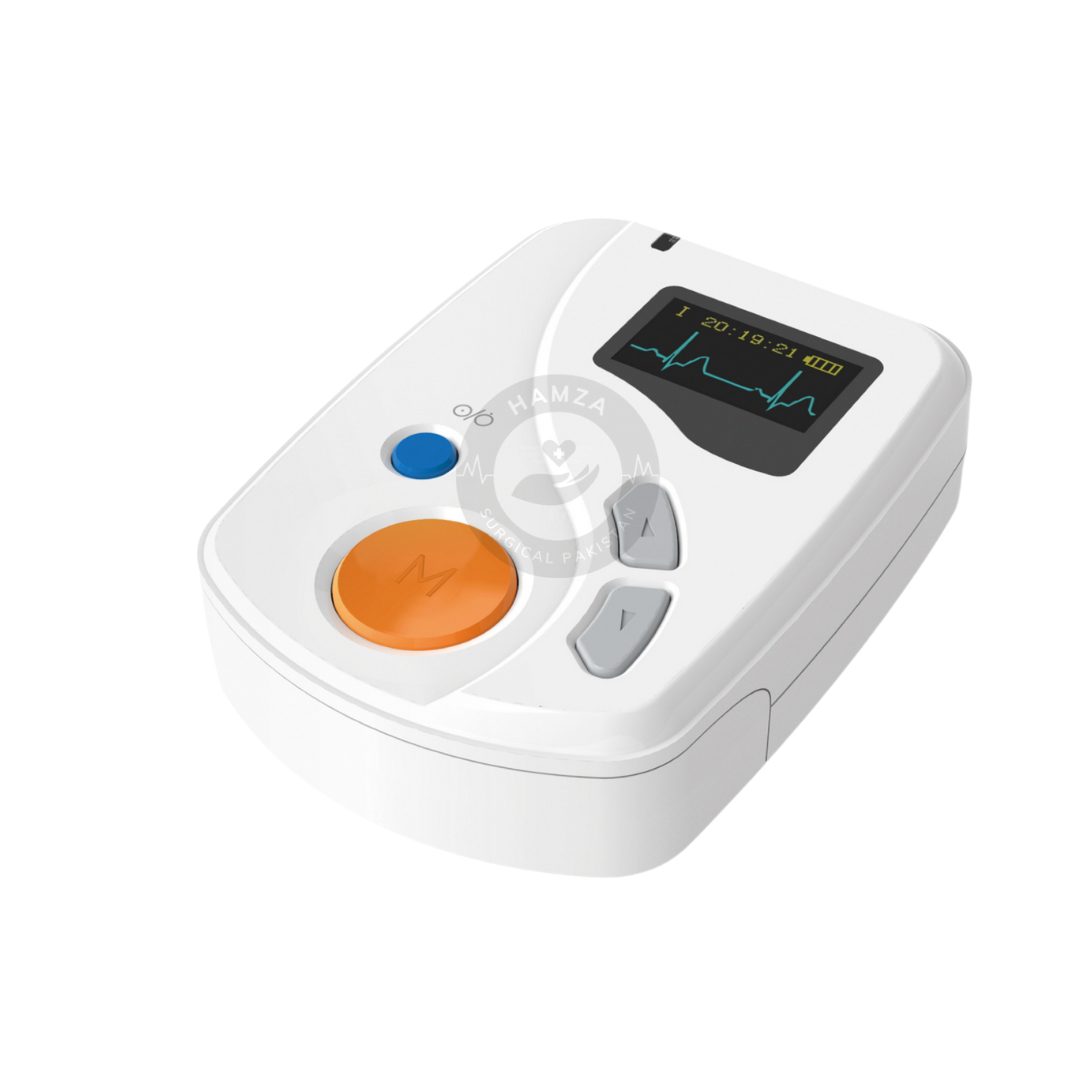

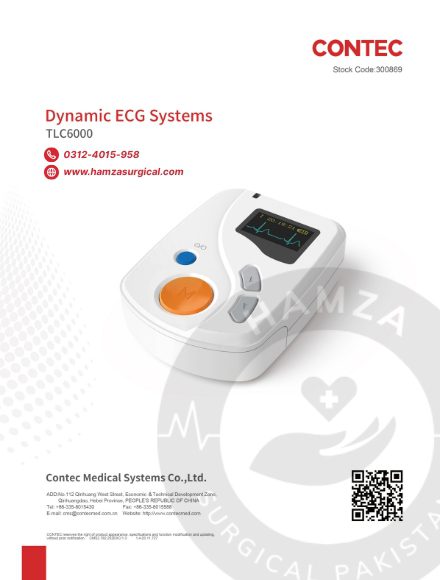

CONTEC TLC6000 Dynamic ECG Systems Holter Monitor

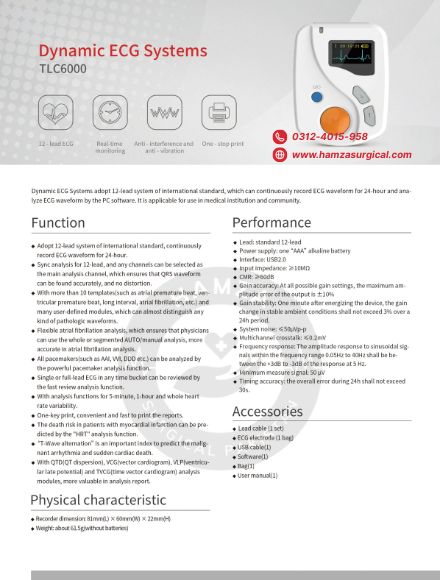

Product Specifications

Dynamic ECG Systems adopt 12-lead system of international standard, which can continuously record ECG waveform for 24-hour and analyze ECG waveform by the PC software. It is applicable for use in medical institution and community.

Function

• Adopt 12-lead system of international standard, continuously record ECG waveform for 24-hour.

• Sync analysis for 12-lead, and any channels can be selected as the main analysis channel, which ensures that QRS waveform can be found accurately, and no distortion.

• With more than 10 templates (such as atrial premature beat, ventricular premature beat, long interval, atrial fibrillation, etc.) and many user-defined modules, which can almost distinguish any kind of pathologic waveforms.

• Flexible atrial fibrillation analysis, which ensures that physicians can use the whole or segmented AUTO/manual analysis, more accurate in atrial fibrillation analysis.

• All pacemakers (such as AAI, VVI, DDD etc.) can be analyzed by the powerful pacemaker analysis function.

• Single or full-lead ECG in any time bucket can be reviewed by the fast review analysis function.

• With analysis functions for 5-minute, 1-hour and whole heart rate variability.

• One-key print, convenient and fast to print the reports.

• The death risk in patients with myocardial infarction can be predicted by the “HRT” analysis function.

• “T-Wave alternation” is an important index to predict the malignant arrhythmia and sudden cardiac death.

• With QTD (QT dispersion), VCG (vector cardiogram), VLP (ventricular late potential) and TVCG (time vector cardiogram) analysis modules, more valuable in analysis report.

Physical Characteristic

• Recorder dimension: 81mm (L) × 60mm (W) × 22mm (H)

• Weight: about 61.5g (without batteries)

Performance

• Lead: standard 12-lead

• Power supply: one “AAA” alkaline battery

• Interface: USB2.0

• Input impedance: ≥10ΜΩ

• CMR: ≥60dB

• Gain accuracy: At all possible gain settings, the maximum amplitude error of the output is ±10%

• Gain stability: One minute after energizing the device, the gain change in stable ambient conditions shall not exceed 3% over a 24h period.

• System noise: <50µVp-p

• Multichannel crosstalk: <0.2mV

• Frequency response: The amplitude response to sinusoidal signals within the frequency range 0.05Hz to 40Hz shall be between the +3dB to -3dB of the response at 5 Hz.

• Minimum measure signal: 50 µV

• Timing accuracy: the overall error during 24h shall not exceed 30s.

Accessories

• Lead cable (1 set)

• ECG electrode (1 bag)

• USB cable (1)

• Software (1)

• Bag (1)

• User manual (1)
