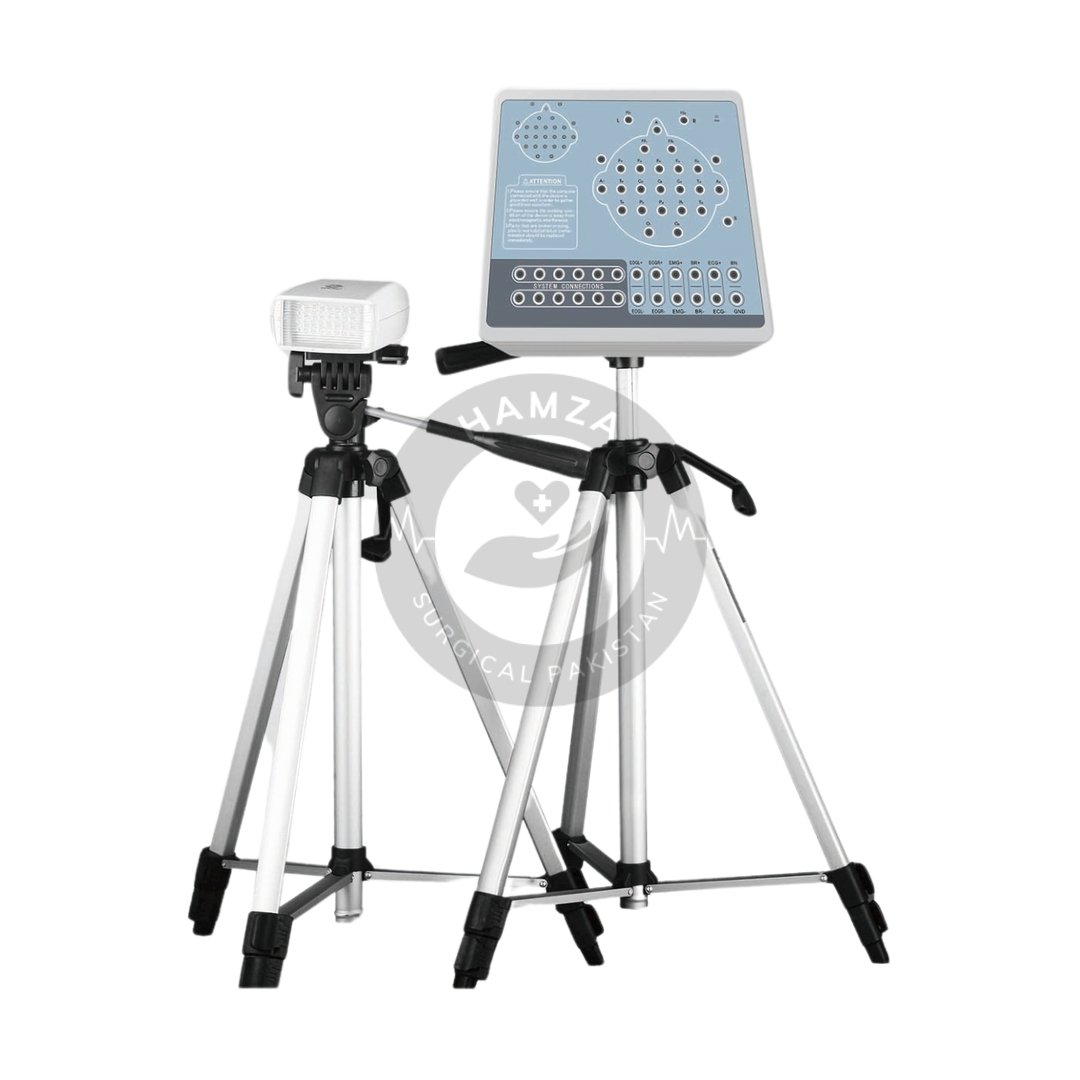

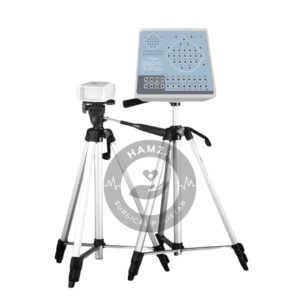

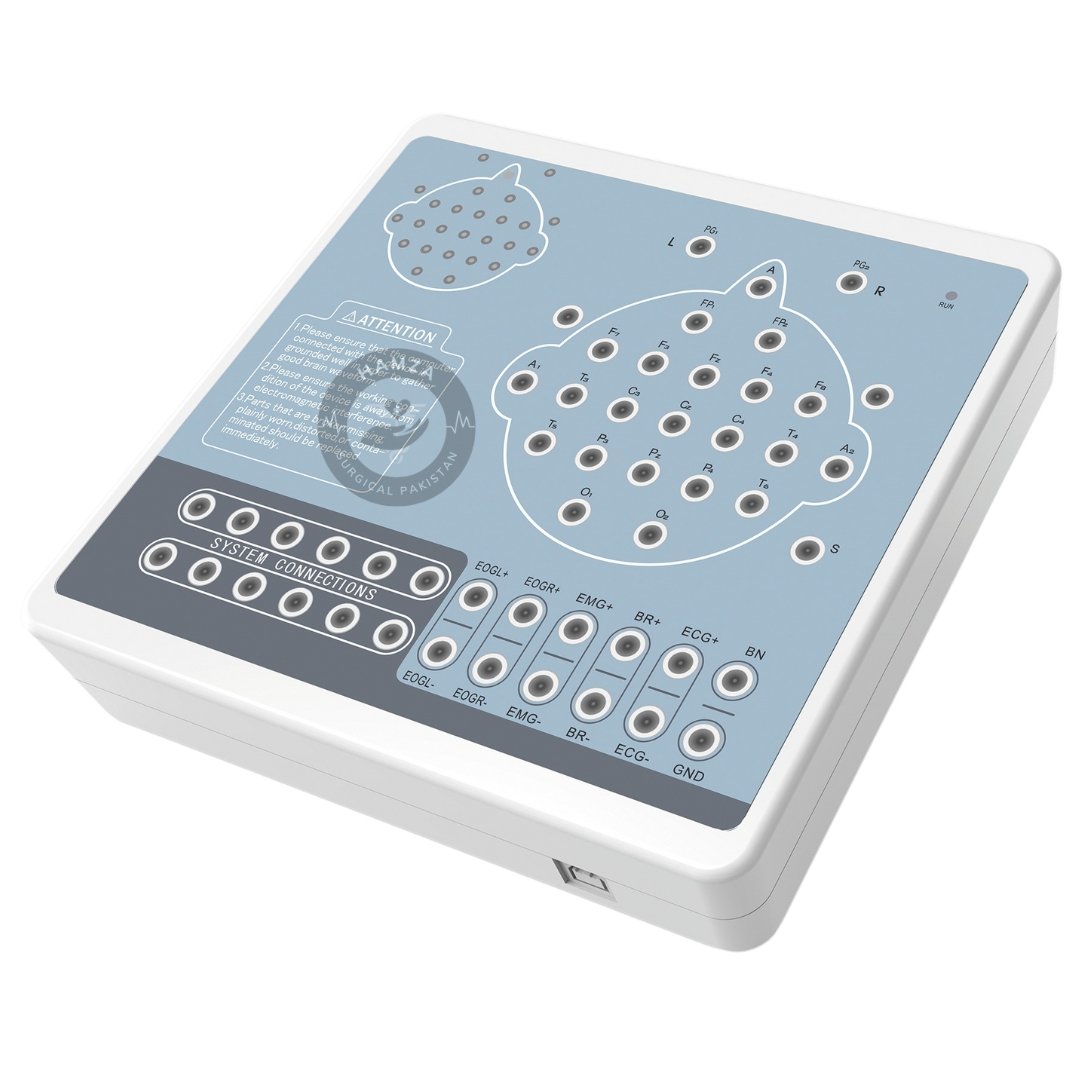

CONTECT KT88-2400 Digital Brain Electric Activity Mapping

Description

The KT88-2400 EEG Mapping System collects EEG signals via electrodes with integrated amplification, A/D conversion, and PC-based auto-analysis using FFT technology. It displays electroencephalograms in full color depth and is widely applicable for diagnosing epilepsy, intracranial inflammation, cerebrovascular diseases, and brain tumors.

Key Features

• Standard 10/20 Electrode Placement under international system; leads can be changed during replay.
• Bioelectric Amplifier for accurate brainwave recording, with continuous recording up to 24 hours.
• Automatic Calibration System for precision measurements.
• Adjustable Playback – amplitude, display speed, and subdivided 1-second timeline (into 5 parts) for detailed review.
• Digital Filtering System with customizable window types.
• EEG Signal Clipping & Analysis – extract, analyze, and store selected waveform sections.
• Measurement Tools – electronic frequency ruler, partial enlarging window for precise period, amplitude, and frequency calculations.
• Event Marking – customizable markers for eye-opening, eye-closing, flashing, and user-defined events.
• Automatic Analysis Functions – power spectrum analysis, pathological wave detection, and multi-graph display including:

  • Brain Electric Activity Mapping (BEAM)

  • Numerical BEAM

  • Compressed Spectrum Graph

  • Trend Graphs

• Safety Features – professional isolation transformer, dual power supply isolation, and optoelectronic data transmission.
• USB Data Transmission for easy plug-and-play operation.
• Flash Stimulation – multifunctional USB stimulator with manual/automatic control and programmable flash schemes.
• Case Management – export/import, storage via MO or CD-RW, statistical functions, and case reports editable/exportable to Word.
• Data Formats – supports EDF and BDF for academic exchange and further analysis.
• Customizable System Parameters & Display Modes.
• Annotations & Marking – quickly locate waveform sections during playback.
• Optional Video Function – USB camera integration with flexible synchronous EEG-video playback.
• Optional SpO₂ Monitoring for synchronized collection.

Applications

• Epilepsy detection & monitoring
• Intracranial inflammation diagnosis
• Cerebrovascular disease evaluation
• Brain tumor analysis
• Research & clinical neurology

Included Functions

• EEG Recording with digital filtering
• ECG Measurement
• Automatic Analysis with FFT
• Optional SpO₂ synchronization
