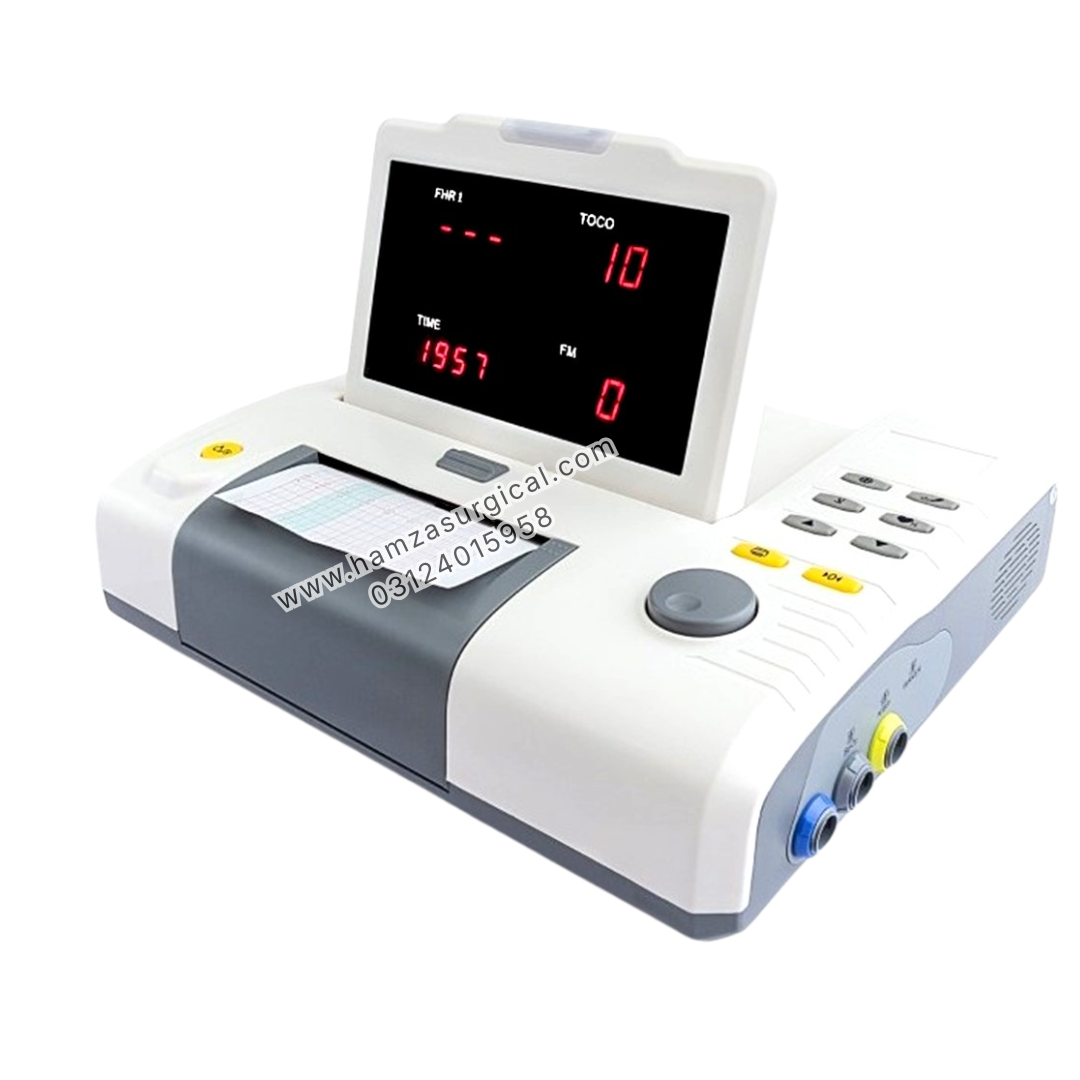

L8 CTG Fetal Maternal Monitor with Single Probe for Single Baby

Technical Specifications

Display: 7″ TFT color LCD, high resolution Printer: Built-in 110 mm thermal printer FHR (Fetal Heart Rate) Transducer:

• Multi-crystals, wide wave beam, pulsed-wave mode
• Intensity: < 5 mW/cm²
• Working frequency: 1.0 MHz

TOCO (Uterine Contraction):

• Measurement range: 0–100 units

Physical:

• Dimensions: 295 × 240 × 73 mm
• Net weight: 1.75 kg

Power: Rechargeable battery (many hours of operation)

Available Options / Upgrades

• Maternal parameters (SpO2, PR, NIBP) – L8A version
• FAS (Fetal Acoustic Stimulator)
• Connection to L8T Wireless Station
• 3-parameter or 6-parameter interface
• 7″ TFT display screen (standard)

Typical Monitor Screen Readings (example shown):

• FHR 1: 148 bpm
• TOCO: 22
• Fetal movement: 0

The monitor includes a built-in thermal printer that prints the CTG trace in real time, with auto scoring and long-term data storage.
