Product Specifications

Features

7 inch high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function
Complete digital filters, resisting baseline drift, AC and
EMG interference
Compact and lightweight design
Support USB flash disk and micro SD card to extend memory
Software upgrade via USB/SD card
Built-in rechargeable Li-ion battery

Standard Configuration

Main machine: 1 PC
Patient cable: 1 PC
Limb electrode: 1set (4pcs)
Chest electrode: 1set( 6pcs)
Power cable: 1 PC

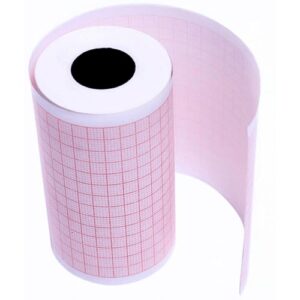

80mm*20M recording paper: 1 PC
Paper axis: 1 PC
Power cord: 1 PC

Technique Specification

Technique Specification Items	Specification
Lead Acquisition Mode	Standard 12 leads
Measurement Range	Simultaneous 12 leads acquisition ±5mVpp
Input Circuit	Floating; Protection circuit against Defibrillator effect
Input Impedance	≥50MΩ
Input Circuit Current	＜0.05µA
Record Mode	Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CH×2; Manual: Rhythm: 3CH, 2CH, 3CH+1R, 2CH+1R; Any lead selectable.
EMG Filter	25 Hz / 30 Hz / 40Hz / 75 Hz / 100 Hz / 150Hz
DFT Filter	AC Filter: >100dB
CMRR	＜10µA (220V-240V)
Patient Leak Current	0.05Hz~150Hz (-3dB)
Frequency Response	2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%)
Sensitivity	Automatic ≥3.2s
Anti-baseline Drift	＜15µVp-p
Time Constant	12.5 mm/s, 25 mm/s, 50 mm/s
Noise Level	Thermal printing system
Paper Speed	Roll 110mm x 20M
Recording Mode	IEC I/CF
Paper Specification	Normal: 1000sps/channel
Sample Rate	0.05 Hz/ 0.15 Hz
Power Supply	AC: 100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, built-in lithium battery

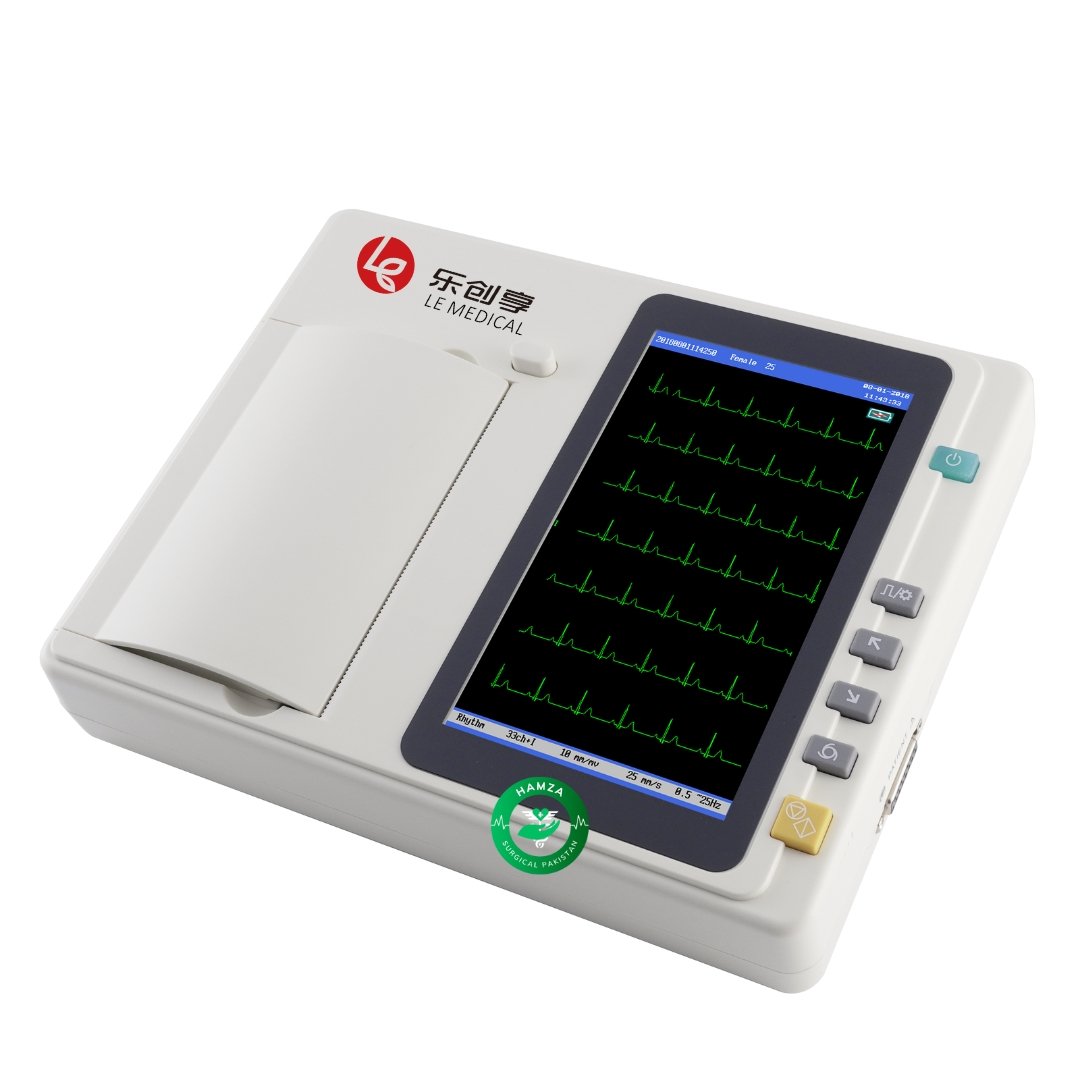

Discover the LE Medical ECG-601 6-Channel ECG Machine at Hamza Surgical, your trusted source for premium health devices. We take pride in providing 100% Original LE Medical ECG-601 6-Channel ECG Machine, guaranteeing both quality and performance, with competitive price of Rs. 93,000. Shop now and experience seamless experience with trusted solutions!

-5%

Original price was: Rs. 98,000.Current price is: Rs. 93,000.

Add to wishlist

Category: ECG Test Machine

Description

Technique Specification Items	Specification
Lead Acquisition Mode	Standard 12 leads
Measurement Range	Simultaneous 12 leads acquisition ±5mVpp
Input Circuit	Floating; Protection circuit against Defibrillator effect
Input Impedance	≥50MΩ
Input Circuit Current	＜0.05µA
Record Mode	Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CH×2; Manual: Rhythm: 3CH, 2CH, 3CH+1R, 2CH+1R; Any lead selectable.
EMG Filter	25 Hz / 30 Hz / 40Hz / 75 Hz / 100 Hz / 150Hz
DFT Filter	AC Filter: >100dB
CMRR	＜10µA (220V-240V)
Patient Leak Current	0.05Hz~150Hz (-3dB)
Frequency Response	2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%)
Sensitivity	Automatic ≥3.2s
Anti-baseline Drift	＜15µVp-p
Time Constant	12.5 mm/s, 25 mm/s, 50 mm/s
Noise Level	Thermal printing system
Paper Speed	Roll 110mm x 20M
Recording Mode	IEC I/CF
Paper Specification	Normal: 1000sps/channel
Sample Rate	0.05 Hz/ 0.15 Hz
Power Supply	AC: 100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, built-in lithium battery
