Product Description

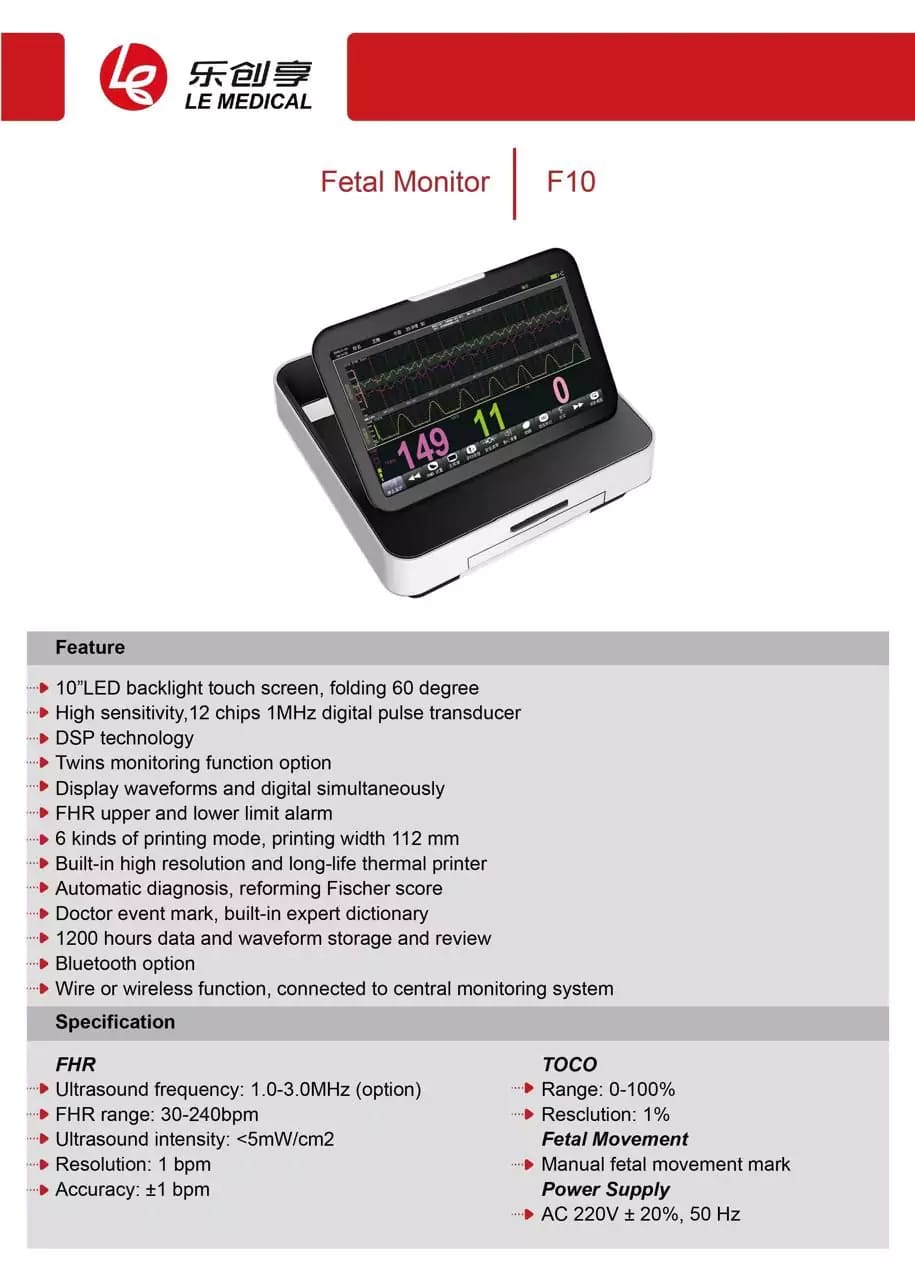

The LE MEDICAL F10 Fetal Monitor is designed for fetal heart rate (FHR), uterine contraction (TOCO), and fetal movement monitoring. It features a 10-inch LED-backlit touch screen with a foldable design that can be adjusted up to 60 degrees for convenient viewing.
The F10 uses a high-sensitivity 12-chip, 1 MHz digital pulse transducer and DSP technology for fetal monitoring. Waveforms and numerical values can be displayed simultaneously, allowing healthcare professionals to conveniently review monitoring information.
The monitor includes configurable FHR upper and lower limit alarms, multiple printing modes, and a built-in high-resolution thermal printer with a 112 mm printing width. It can store up to 1200 hours of data and waveforms for subsequent review.
Additional functions include automatic diagnosis with Fischer score, doctor event marking, a built-in expert dictionary, optional Bluetooth, and wired or wireless connectivity to a central monitoring system.
Key Features
- 10-inch LED-backlit touch screen
- Screen folds up to 60°
- High-sensitivity 12-chip, 1 MHz digital pulse transducer
- DSP technology
- Optional twins monitoring function
- Simultaneous waveform and digital value display
- FHR upper and lower limit alarms
- 6 printing modes
- 112 mm printing width
- Built-in high-resolution, long-life thermal printer
- Automatic diagnosis with Fischer score
- Doctor event marking
- Built-in expert dictionary
- Up to 1200 hours of data and waveform storage and review
- Optional Bluetooth connectivity
- Wired or wireless connection to a central monitoring system
Technical Specifications
| Specification | Details |
|---|---|
| Brand | LE MEDICAL |
| Model | F10 |
| Product Type | Fetal Monitor |
| Display | 10-inch LED-backlit touch screen |
| Screen Adjustment | Folding up to 60° |
| Transducer | High-sensitivity 12-chip, 1 MHz digital pulse transducer |
| Technology | DSP |
| Twins Monitoring | Optional |
| Printer | Built-in high-resolution, long-life thermal printer |
| Printing Width | 112 mm |
| Printing Modes | 6 modes |
| Data Storage | Up to 1200 hours of data and waveform storage/review |
| Bluetooth | Optional |
| Central Monitoring Connectivity | Wired or wireless |
FHR – Fetal Heart Rate
| Parameter | Specification |
| Ultrasound Frequency | 1.0–3.0 MHz (option) |
| FHR Range | 30–240 bpm |
| Ultrasound Intensity | <5 mW/cm² |
| Resolution | 1 bpm |
| Accuracy | ±1 bpm |
TOCO
| Parameter | Specification |
| Range | 0–100% |
| Resolution | 1% |
Fetal Movement
| Parameter | Specification |
| Fetal Movement Function | Manual fetal movement mark |
Power Supply
| Parameter | Specification |
| Power Input | AC 220V ±20%, 50 Hz |
Monitoring Functions
The LE MEDICAL F10 supports monitoring and display of:
- Fetal Heart Rate (FHR)
- Uterine contractions (TOCO)
- Fetal movement marking
- FHR waveforms and numerical values
- Optional twins monitoring
Its integrated thermal printer, long-term data storage, alarm functions, and central monitoring connectivity make it suitable for fetal monitoring applications in clinical healthcare environments.
