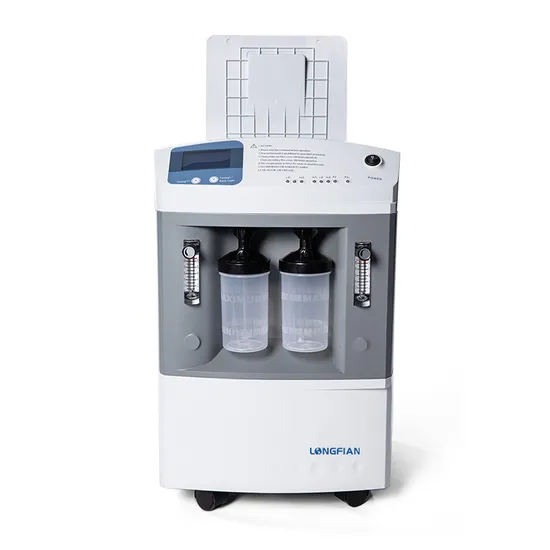

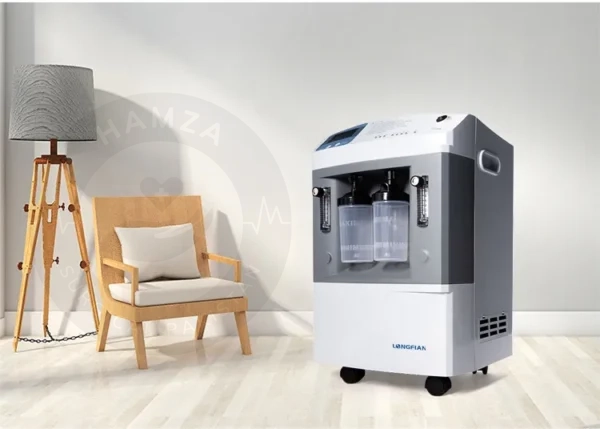

Longfian JAY-10 10-Liter Oxygen Concentrator

Product Description

Overview

The Longfian JAY-10 Oxygen Concentrator is a high-performance, medical-grade oxygen delivery system designed for both homecare and clinical use. Engineered with Pressure Swing Adsorption (PSA) technology, it delivers up to 10 liters per minute (LPM) of concentrated oxygen with consistent purity, making it suitable for patients with chronic respiratory conditions.

Key Specifications

• Model: JAY-10

• Oxygen Flow Rate: 0.5 to 10 L/min

• Oxygen Purity: 93% ± 3%

• Outlet Pressure: 0.04–0.07 MPa (6–10 psi)

• Noise Level: ≤ 50 dB (quiet operation)

• Power Consumption: ≤ 880 W

• Voltage Compatibility: 110V / 220V / 230V

• Dimensions: 365 × 375 × 600 mm

• Net Weight: 27 kg

• Certifications: CE, ISO 13485

Core Features

• High Oxygen Output: Capable of delivering continuous oxygen flow up to 10 liters per minute, ideal for high-demand patients or multi-patient usage.

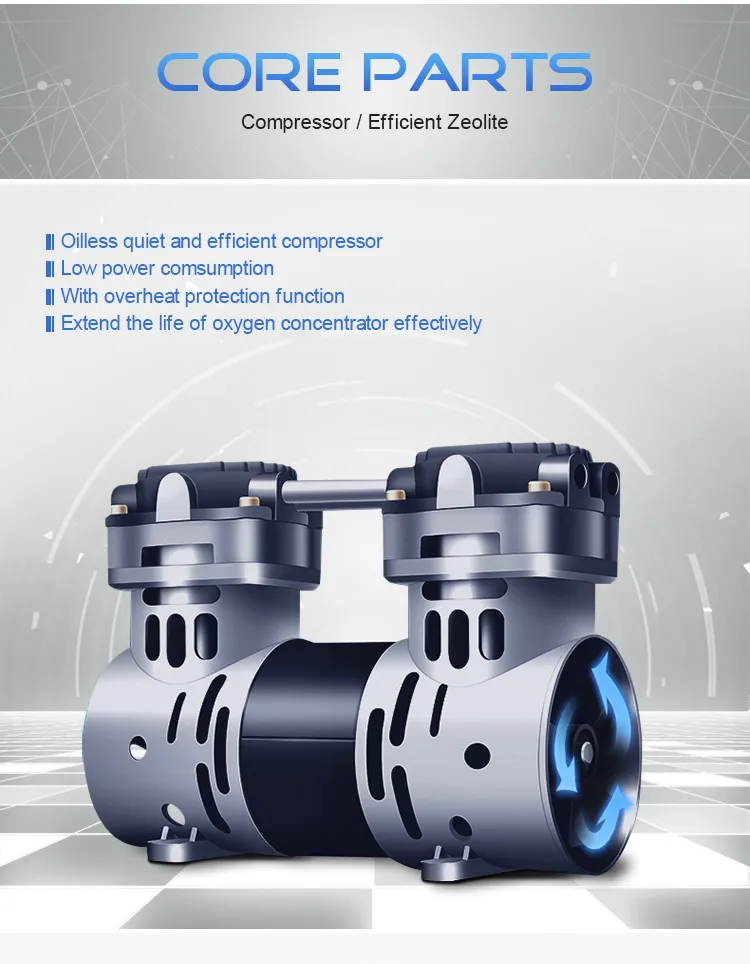

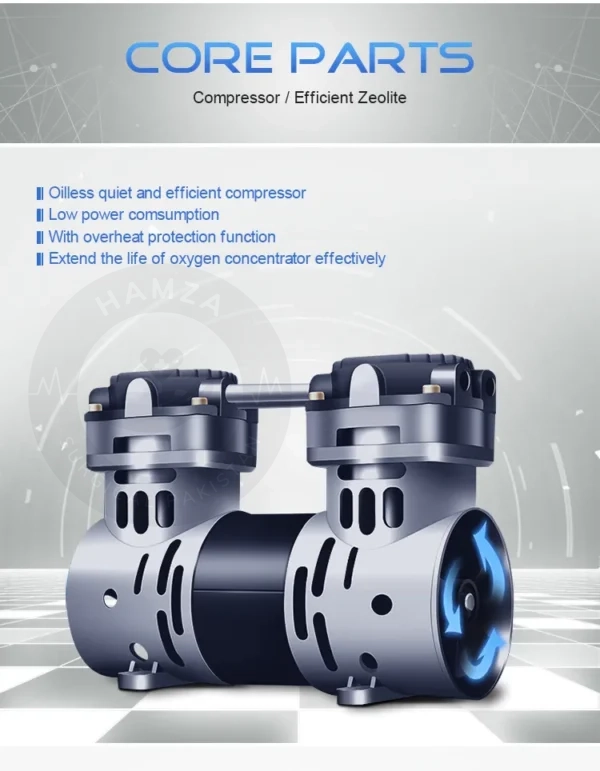

• Advanced PSA Technology: Utilizes zeolite molecular sieves to separate oxygen from ambient air with high efficiency.

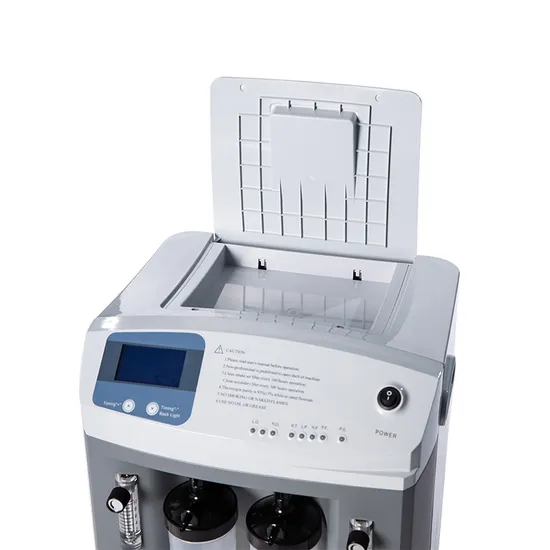

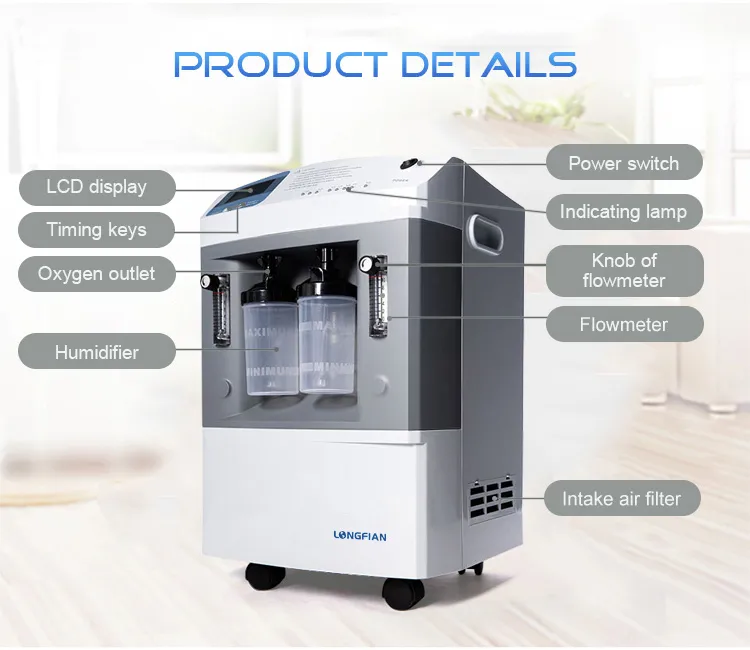

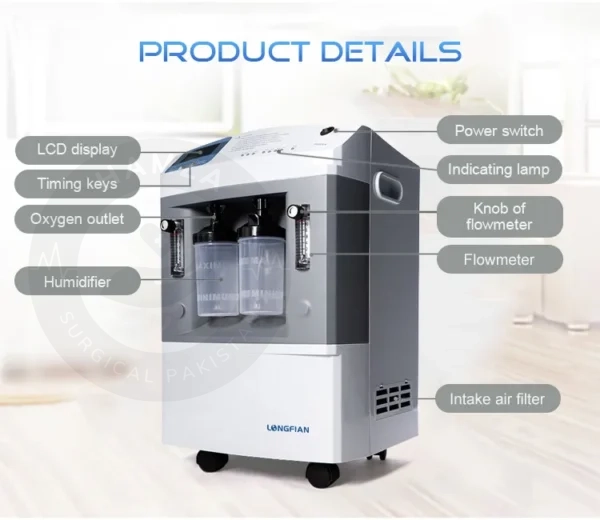

• Digital Control Panel: Includes an LCD screen displaying pressure levels, working time, cumulative time, and programmable timer (10 minutes to 40 hours).

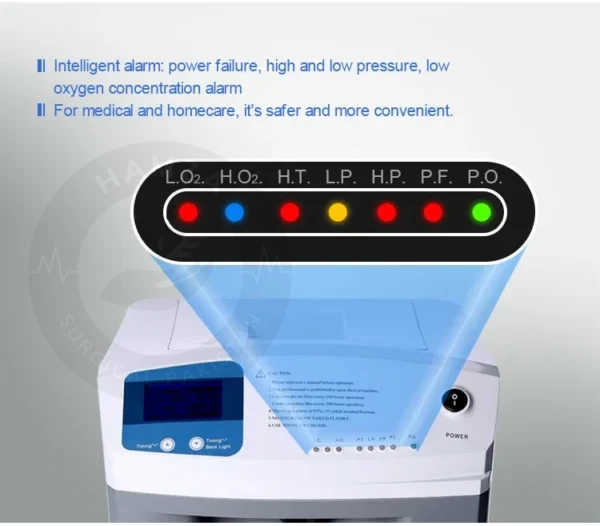

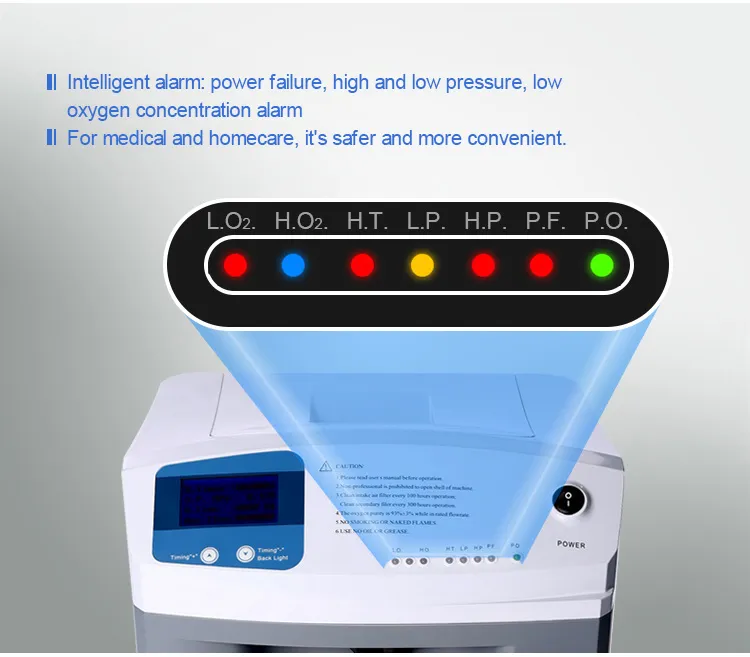

• Integrated Safety Alarms: Built-in alerts for low oxygen concentration (<82%), power failure, and pressure irregularities.

• Continuous Use Design: Optimized cooling system supports 24/7 operation without overheating.

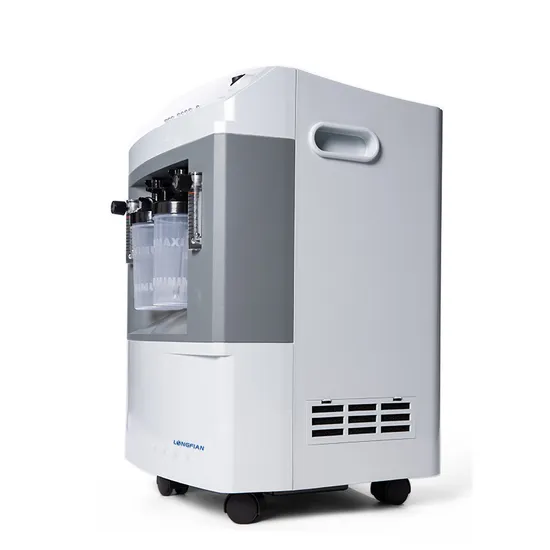

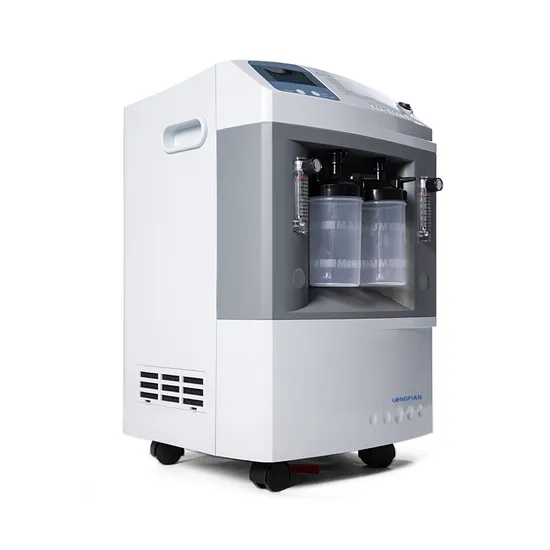

• Mobility and Stability: Equipped with four caster wheels (two lockable) for easy transport and secure placement.

Optional Add-Ons

• Nebulizer Function

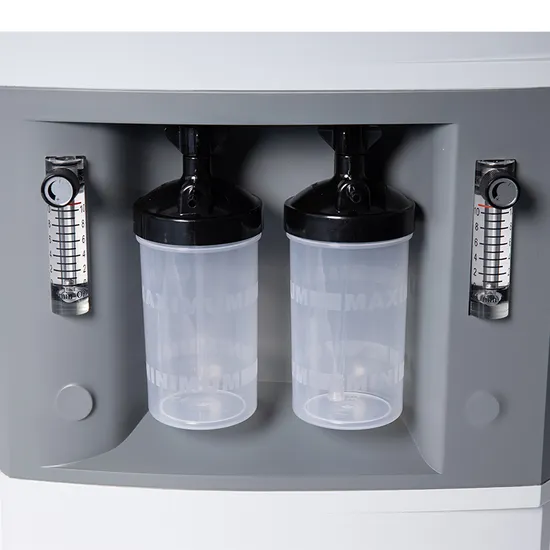

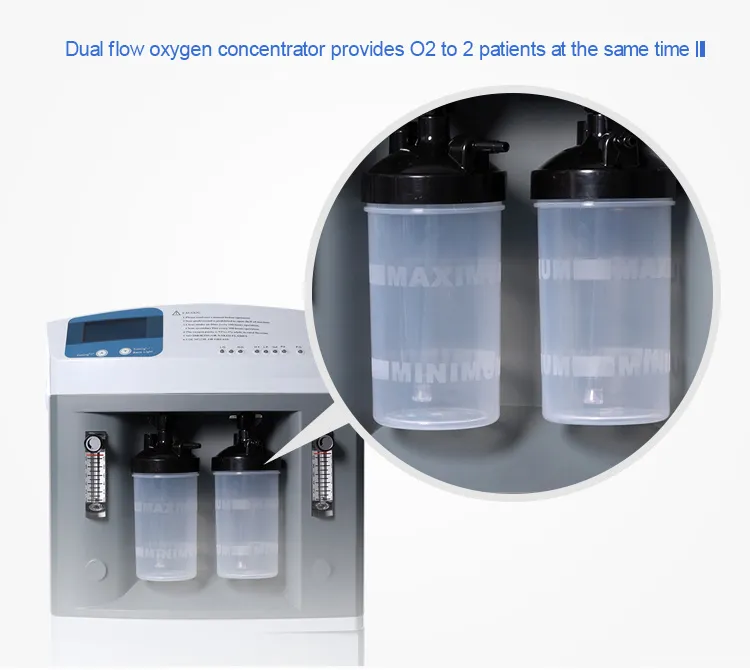

• Dual Flow Outlets (for two users simultaneously)

• Integrated Pulse Oximeter

Use Cases

The Longfian JAY-10 10L Oxygen Concentrator is ideal for:

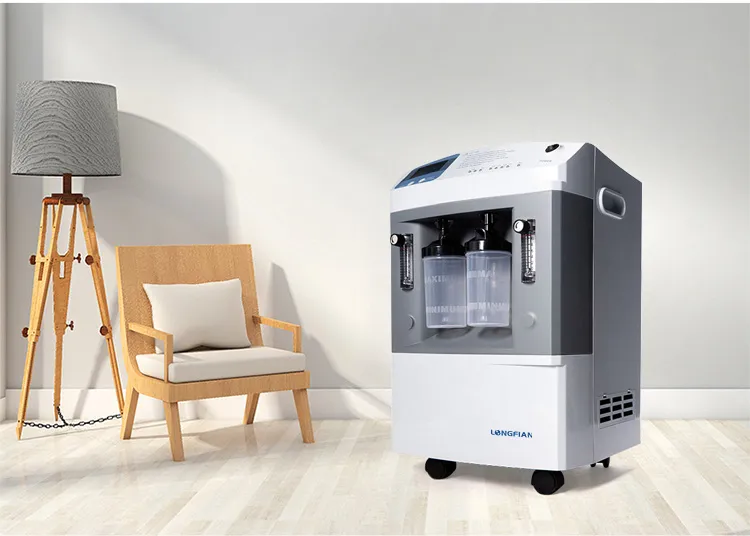

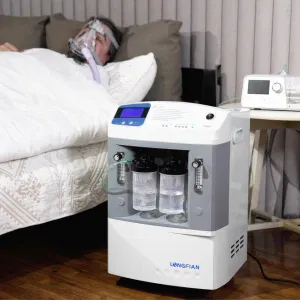

• Home Oxygen Therapy: For patients with COPD, asthma, lung fibrosis, or oxygen deficiency.

• Hospitals and Clinics: For high-flow oxygen support in emergency rooms or respiratory wards.

• Rehabilitation Centers: Where long-term oxygen support is required.

• Multi-Patient Usage: Can be connected to a splitter system for simultaneous use by up to five individuals, depending on flow requirements.

Maintenance and Durability

• Designed for long-term durability with minimal maintenance.

• Easy-access panels for servicing and cleaning.

• Long operating life with reliable performance.
