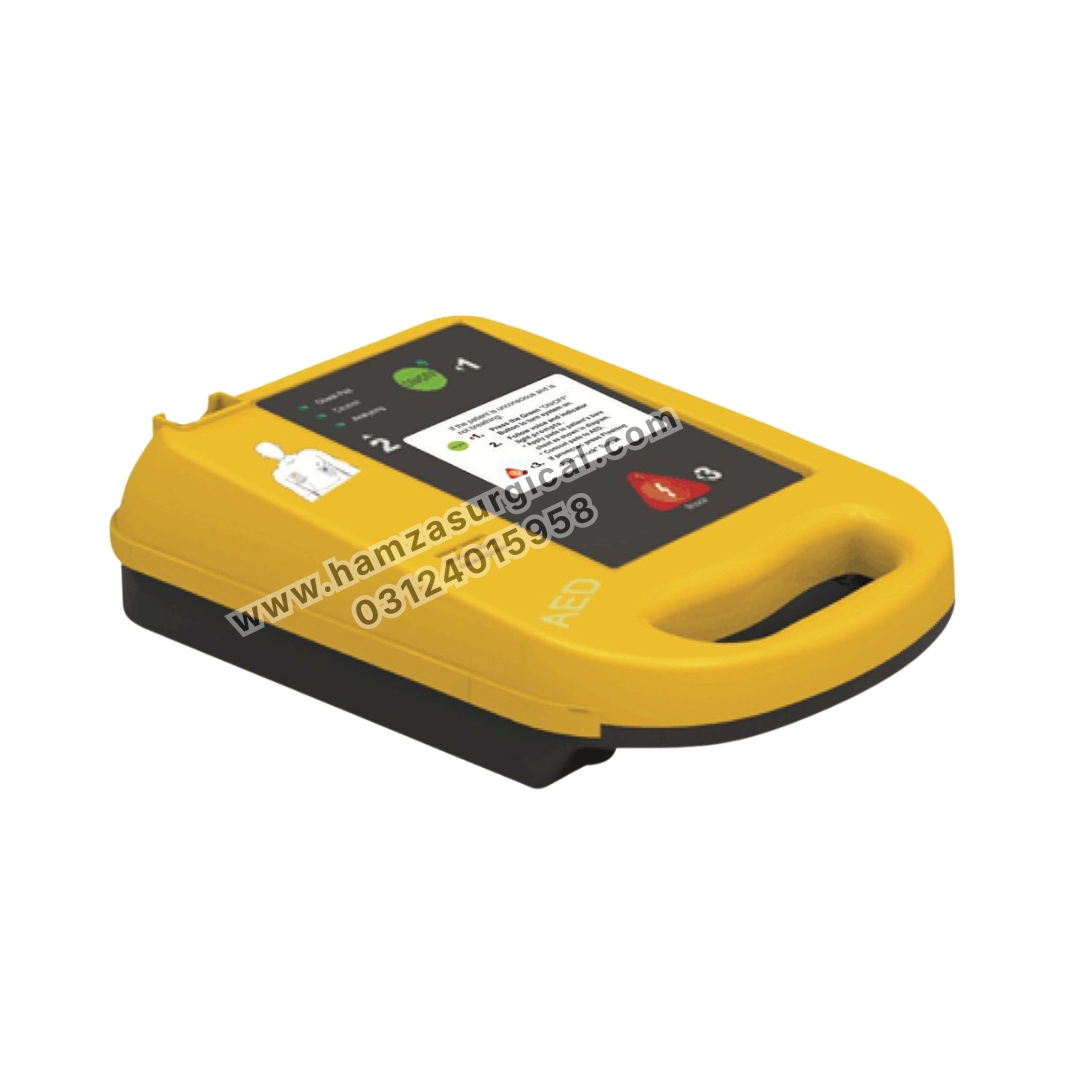

MEDEX USA SMART-100 Automatic External Defibrillator

Product Overview

• Brand: MEDEX USA
• Model: SMART 100
• Product Type: Automatic External Defibrillator (AED)
• Full Title: SMART 100 Automatic External Defibrillator
• Manufacturer: MEDEX USA INC.
• Company Address: 185, Ross Avenue, Hackensack, NJ 07601, USA

Key Features

• Three-step defibrillation process
• Two-button operation
• Extensive voice and visual prompts for the operator
• Biphasic energy output
• Lock-out protection to prevent inadvertent defibrillation

Design & Operation Highlights

• Color: Bright yellow with black base (highly visible)
• User Interface:
  • Large color screen with clear numbered steps (1, 2, 3)
  • Green “Analyze” button and red “Shock” button
  • Status indicators: Quick Test, Caution, and Ready lights
• Operation: Simple two-button design with voice prompts guiding the user through the process
• Safety: Lock-out protection prevents accidental shock delivery

Screen Content (as shown in image)

The device screen displays a clear 3-step instruction:

1. Step 1 (Green): Attach the Green Connector to the patient
2. Step 2 (Yellow/Amber): Follow voice and visual prompts
3. Step 3 (Red): Press the red Shock button if advised

It also shows ECG waveform symbol and AED labeling.

Additional Visual Elements

• Includes a small image of a patient with electrode pad placement diagram (on the lower right of the main device image)
• Professional medical device design suitable for public access defibrillation (PAD) programs
