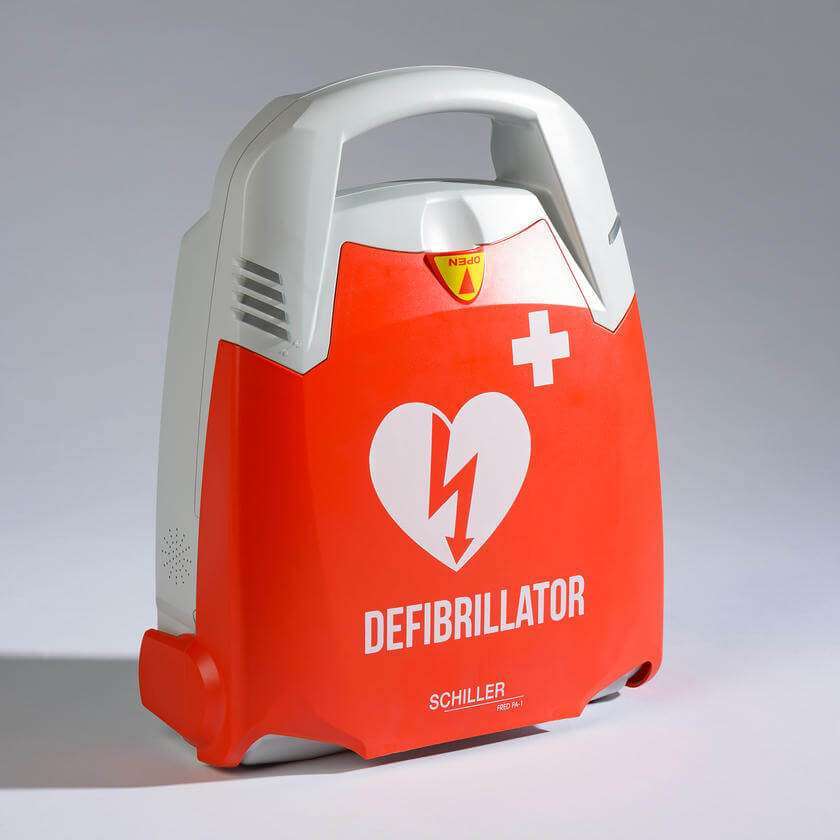

PA1 Schiller Switzerland AED (Automated External Defibrillator)

• Device Types:
  • Semi-automatic (user presses shock button when prompted)
  • Fully automatic (delivers shock without user intervention, if advised)
  • Connected version: FRED PA-1 Online (with integrated connectivity for remote status monitoring)
• Ease of Use:
  • Simple 1-2-3 step interface with voice prompts, pictograms, and visual indicators
  • Instant activation upon opening the cover
  • Pre-connected electrodes for rapid application to the patient’s chest
  • Systematic pre-charging for minimal delay in shock delivery
• Patient Compatibility:
  • Suitable for adults and children (pediatric mode)
  • Automatically detects electrode type (adult or pediatric) and adjusts energy levels accordingly
• Defibrillation Technology:
  • Waveform: Biphasic Truncated Exponential (BTE)
  • Energy output: Up to 200 Joules (adult mode); reduced for pediatric (e.g., starting at ~50 Joules, depending on protocol)
• Battery:
  • Long-life disposable Lithium/MnO2 battery (15 V, 2.8 Ah)
  • Capacity: More than 140 shocks at 200 J (typical)
  • Standby life: Up to 6 years (depending on model/configuration)
• Electrodes/Pads:
  • Pre-connected, easy-access pads with RFID sensor for expiration detection
  • Adult and pediatric options available
• Self-Testing and Status Monitoring:
  • Automatic periodic self-tests (daily/weekly) for battery capacity, electrode expiration, and device readiness
  • Status indication via LED lights on the device (visible from >15 m in some configurations)
  • FRED PA-1 Online: Sends email/SMS alerts for abnormalities; transmits data via integrated GSM/cellular connection
• CPR Support Features:
  • Built-in metronome for correct compression rate
  • FreeCPR feedback on compression frequency (via audio guidance and impedance-based technology in some modes)
  • Guidance for proper hand placement and rhythm
• Language Support:
  • Trilingual voice prompts (customizable at order; default often includes multiple options for international use)
• Fleet Management (FRED PA-1 Online only):
  • LifeDataNet G2 platform: Online dashboard accessible via computer, tablet, or smartphone
  • Remote 24/7 monitoring of device status, battery, electrodes, and consumables
  • Event data transmission post-use
  • Geolocation support
  • Hosted by ISO 27001-compliant provider for health/medical data security
• Physical Specifications:
  • Weight: Approximately 2.5 kg (including battery and basic accessories)
  • Dimensions: 310 × 255 × 100 mm (H × W × D, approximate)
  • Protection: IP55 (dust and water resistant, typical for model)
• Additional Features:
  • Data recording: Up to 2 hours of event data and 500 events
  • Audio output: Up to 85 dB maximum
  • Housing: Flame-retardant medical-grade material (e.g., ABS V0)

This AED prioritizes simplicity, reliability, and readiness for emergency use in public spaces, workplaces, or institutions, with enhanced remote oversight in the Online version to ensure fleet-wide operational status.
