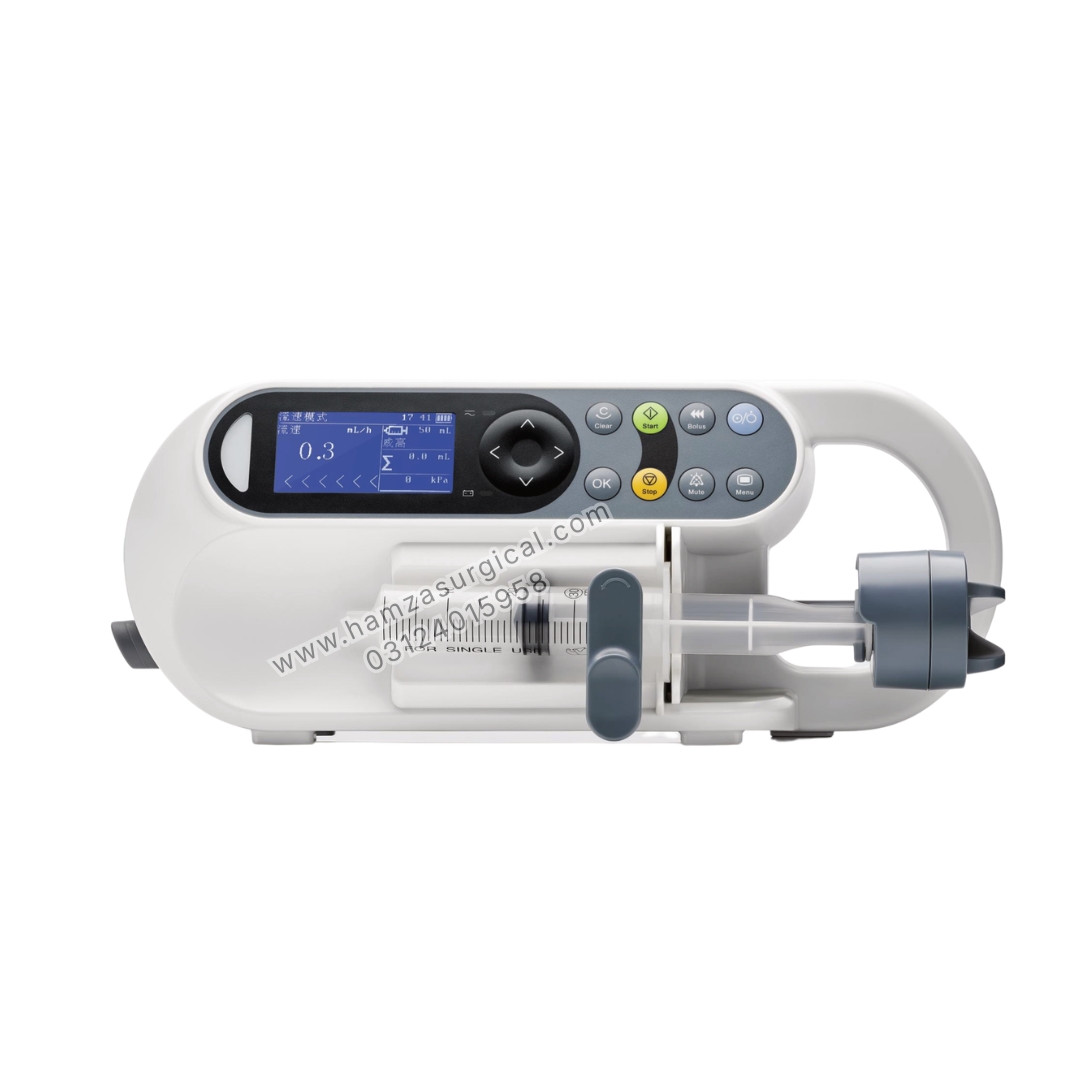

Period SP1 Syringe Pump

[doc id=’40628′]

Technical Specifications – Syringe Pump

• Weight: 2 kg
• CPU: Single CPU
• Syringe Sizes Supported: 10 ml, 20 ml, 30 ml, 50 ml
• Automatic Syringe Size Recognition: Yes

Operating Modes

• Rate Mode
• Time Mode
• Body Weight Mode
• Drug Library Mode
• Loading Dose Mode

Performance

• Rate Range: 0.1 – 1500 ml/h
• Rate Increment: 0.1 ml/h
• Mechanical Accuracy: ±2%
• Operational Accuracy: ±2%

Alarms & Safety

• Alarm Type: Audible and visual
• Alarm Volume: 3 adjustable levels (High, Medium, Low)
• Occlusion Units: kPa / bar / psi
• Occlusion Range:
  • Low: 50 kPa
  • Medium: 80 kPa
  • High: 110 kPa

Display & Interface

• Display: Blue LCD (80.20 × 51.20 × 5.30 mm)
• Input Interface: Keypad

Battery & Power

• Battery Type: Rechargeable lithium battery
• Battery Life: More than 10 hours (at 5 ml/h)
• Charging Time: ≤ 5 hours

Drug Library & Storage

• Drug Library: Editable with multiple drug information
• Database Capacity: 1000 entries

Additional Features

• IP Rating: IPX3
• Micro Mode: Supported
• Automatic Keypad Lock: Optional
• Nurse Call: Optional
• Wireless LAN / IrDA: Optional

Scope of Application

• Operating Rooms / General Wards
• Institutes and Laboratories
• Other Medical Institutions

Performance Metrics

• Rate (based on 50 ml syringe): 0.1 – 1500 ml/h
• Precision: < ±3%
• Cumulative Volume: Up to 9999.9 ml
• Data Storage Capacity: 1000 records

Key Features

• Easy operation
• Safe and reliable design
• Alarm light indicator
• Auto-lock screen to prevent operational errors
• System self-test on startup (checks alarms, volume, pressure, air bubbles, etc.)
• Pressure monitoring with 3 adjustable levels for accurate injection
• Supports multiple pumps
• Fastening bracket for stability
• History record storage (up to 2000 records including operations, alarms, and modifications)
• One-key rotary knob design with an innovative interactive user interface

Safety & Reliability

• Automatic screen lock prevents accidental changes
• Self-test ensures safe operation every time the device is powered on
• Comprehensive monitoring for pressure, air bubbles, and volume
• Designed to ensure accurate and safe drug delivery

Manufacturer

Xuzhou Yongkang Electronic Science Technology Co., Ltd.
Xuzhou Economic & Technological Development Zone, China
