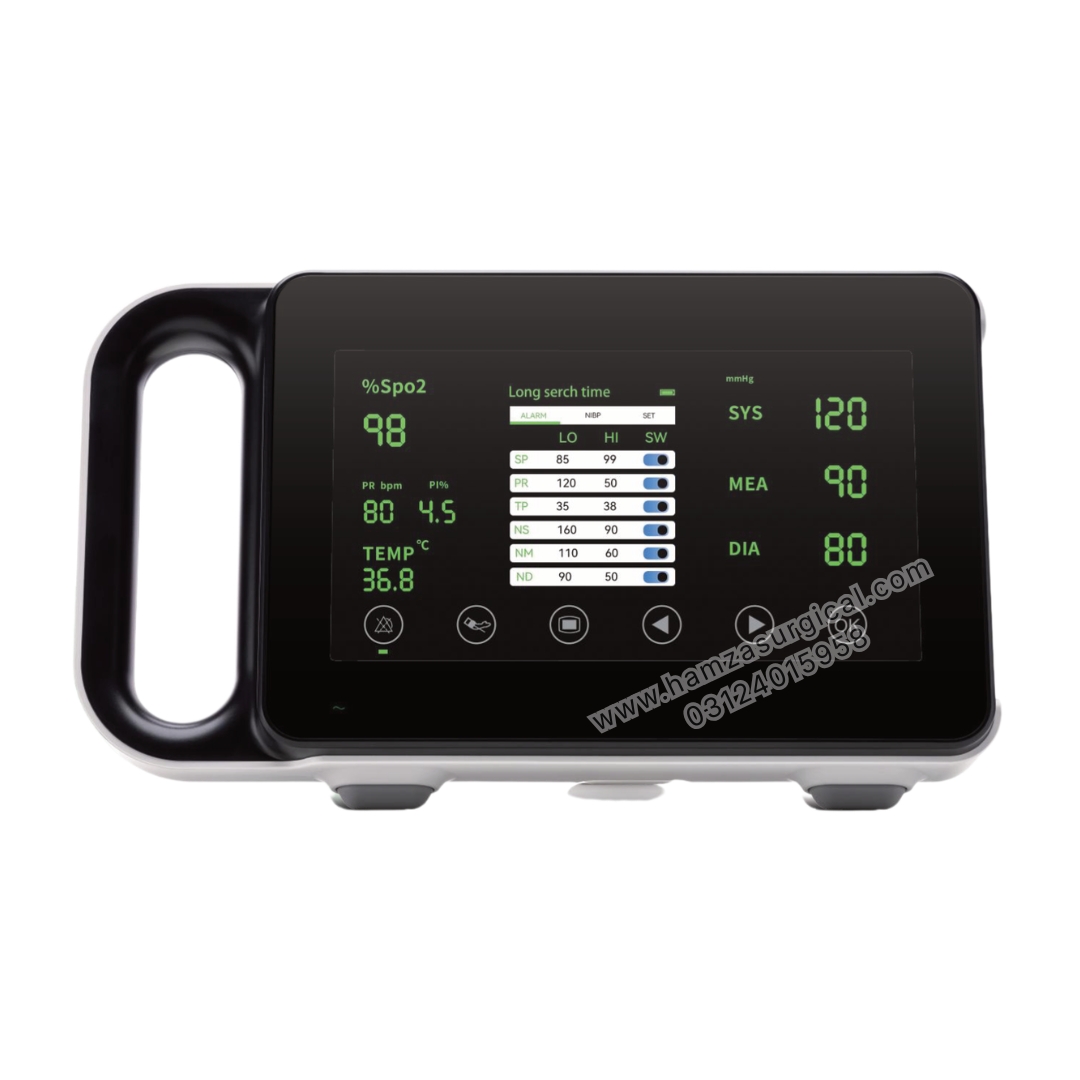

Periodmed E7 LED Vital Signs Monitor

[doc id=’40642′]

TECHNICAL SPECIFICATIONS

Device Classification

• Anti-electroshock degree: Class I equipment (internal power supply)
• Protection degree against fluid ingress: IPX1

Blood Pressure (NIBP)

Measurement Ranges

• Adult systolic blood pressure: 40 ~ 270 mmHg
• Adult diastolic blood pressure: 10 ~ 210 mmHg
• Adult mean pressure: 20 ~ 230 mmHg
• Children systolic blood pressure: 40 ~ 200 mmHg
• Children diastolic blood pressure: 10 ~ 150 mmHg
• Children mean pressure: 20 ~ 165 mmHg
• Neonatal systolic blood pressure: 40 ~ 135 mmHg
• Neonatal diastolic blood pressure: 10 ~ 95 mmHg
• Neonatal mean pressure: 20 ~ 110 mmHg

Static Pressure

• Range: 0 ~ 300 mmHg
• Accuracy: ±3 mmHg

Blood Pressure Accuracy

• Maximum average error: ±5 mmHg
• Maximum standard deviation: ±8 mmHg

Overvoltage Protection

• Adult mode: 300 mmHg ±10 mmHg
• Child mode: 240 mmHg ±10 mmHg
• Neonatal mode: 150 mmHg ±10 mmHg

SpO₂

• Measuring range: 0 ~ 100%
• Resolution: 1%
• Accuracy:
  • 70% ~ 100% range: ±4%
  • 0% ~ 69% range: undefined measurement error

Pulse Rate

• Measuring range: 25 ~ 250 bpm
• Resolution: 1 bpm
• Accuracy: ±3 bpm
• Refresh time: 1 second

Temperature

• Range: 0 ~ 50°C
• Resolution: 0.1°C
• Accuracy: ±0.1°C (without probe error)

Display

• 2.8-inch display + LED (Red/Green)

Power Supply / Electrical Specifications

• Input: AC 100 ~ 240V
• Power frequency: 50/60 Hz
• Maximum input power: 70 VA
• Fuse specification: 2A 16V
• Working method: Continuous operation
• Internal lithium battery: 2000 mAh

Operating Conditions

• Ambient temperature: +5°C ~ 40°C
• Relative humidity: 15% ~ 80% (no condensation)
• Atmospheric pressure: 60 ~ 107 kPa

Storage & Transport Conditions

• Ambient temperature: -20°C ~ +55°C
• Atmospheric pressure: 16 ~ 107 kPa
• Humidity range: 10% ~ 95%

Application Range

• Adults and children
• Portable use
• Ward rounds
• Patient transfer

Features

• 2 hours working time
• Waterproof design

Standard Accessories

• SpO₂ sensor
• Temperature probe
• Cuff & tube
• Power cable
• Ground cable
• Lithium-ion battery
• User manual

Optional Accessories

• Monitor trolley (optional)
• Wall mount (optional)

Physical Specifications

• Product size: 246.5 × 146.4 × 50.7 mm
• Product weight: 950 g

Manufacturer Information

LIANDO U Valley, No. 6 Leye Road,
Xuzhou ETDZ, 221000
Xuzhou, People’s Republic of China
