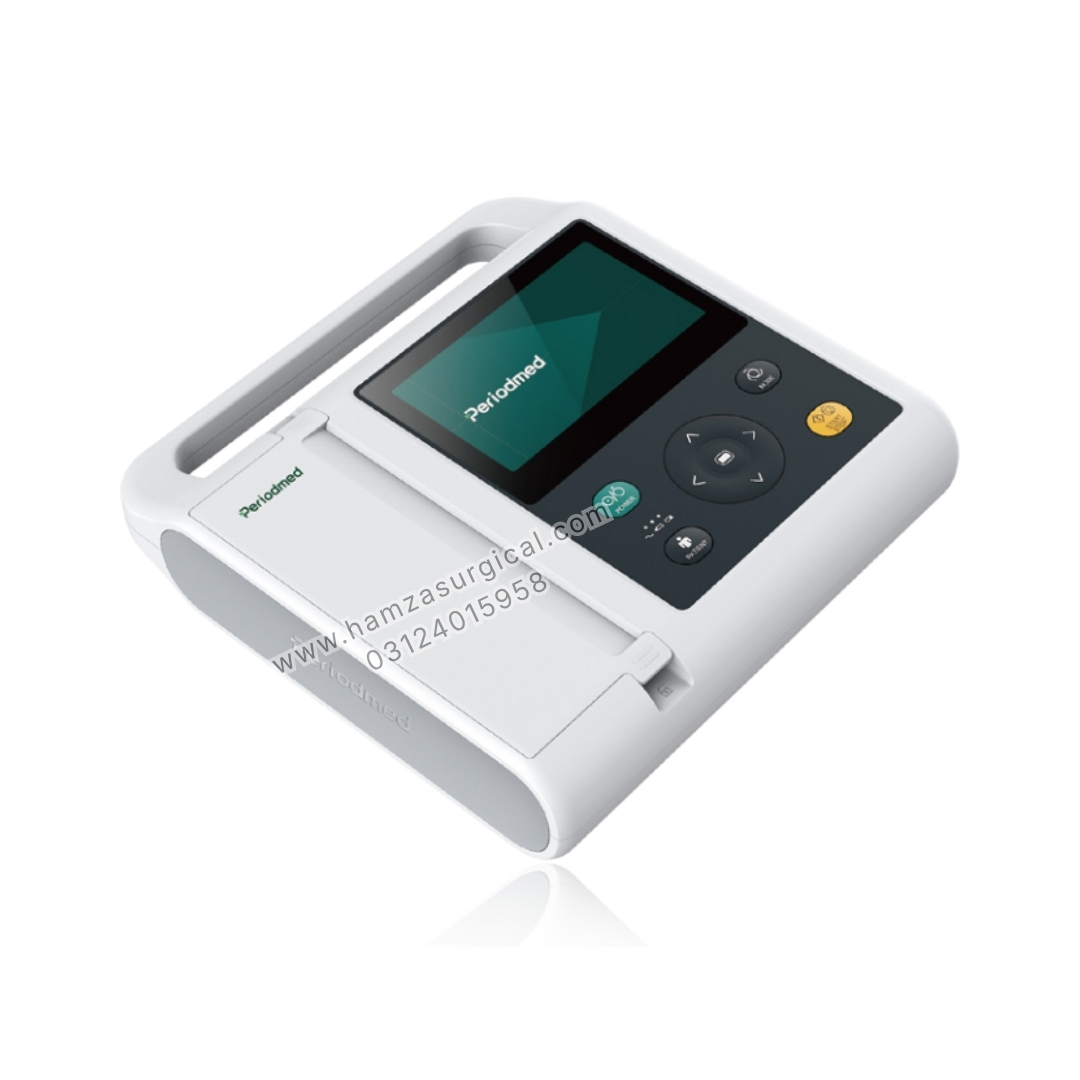

Periodmed PE-E12A ECG Machine

[doc id=’40633′]

Basic Info

• Model: PE-E12A
• Type: 12-Lead ECG Machine
• Manufacturer: Xuzhou Yongkang Electronic Science Technology Co., Ltd.
• Website: www.hamzasurgical.com
• Contact: 03124015958

Key Features

• 7-inch color touchscreen display
• Built-in thermal printer
• High accuracy digital filter with automatic baseline adjustment
• Ergonomic design for better usability
• USB / UART ports with USB storage support
• Multi-language support
• Built-in rechargeable Li-ion battery
• Supports 110–230V, 50/60Hz power supply
• Streamlined keyboard workflow

Functions

• ECG automatic measurement & analysis
• Smart removal of poor-quality waveforms
• Preview patient reports
• Easy patient data input
• Interface for printing reports

Technical Specifications

ECG Acquisition

• Leads: Standard 12 leads
• Acquisition Mode: 12-lead synchronous

Work Modes

• Manual / Auto / R-R / Store

Filters

• AC Filter: 50Hz / 60Hz
• EMG Filter: 25Hz / 45Hz
• Anti-drift Filter: 0.15Hz

Performance

• CMRR: ≥120dB
• Input Impedance: ≥50MΩ
• Input Current: ≤0.05µA
• Patient Leakage Current: <10µA
• Calibration Voltage: 1mV ±2%
• Voltage Tolerance: ≥±500mV

Signal Quality

• Frequency Response: 0.05–160Hz
• Noise Level: <15µVp-p
• Inter-channel Interference: ≤0.5mm

Recording

• Modes: 3ch+++, 6ch, 6ch+, 12ch
• Paper Speed: 6.25 / 12.5 / 25 / 50 mm/s
• Sensitivity: Auto, 2.5, 5, 10, 20, 40 mm/mV

Paper

• 210mm × 30m thermal roll

Hardware & Power

• Battery: 14.4V, 4400mAh Li-ion
• Power Supply: AC 110–230V ±10%, 50/60Hz
• Ports: USB, UART
• Dimensions: 347 × 293 × 83 mm
• Weight: 4.8 kg

Package Includes

• Main unit
• Patient cable (1 pc)
• Limb electrodes (4 pcs)
• Chest electrodes (6 pcs)
• Recording paper (1 roll)
• Power cable
• Grounding cable
• Paper axis (3 pcs)
• Fuse (2 pcs)
• Operation manual

ECG Software (Workstation)

• Real-time 12-lead ECG acquisition
• WiFi, USB, Bluetooth support
• ECG auto-analysis
• Abnormal QRS color identification
• Arrhythmia & premature beat detection
• Multiple report formats
• Print reports on A4 / 16K paper
• Integration with HIS / PACS systems

Connectivity

• Supports WiFi & wired networking
• Data export formats:
  • PNG, DCM, XML, HL7, PDF, JPG, GDT, ZQECG
• Protocols:
  • DICOM, HTTP, SAMBA
• Compatible with:
  • HIS, PACS, EMR systems

Summary

The PE-E12A 12-Lead ECG Machine features a 7-inch touchscreen, high-precision digital filtering, built-in thermal printer, and advanced ECG analysis software. It supports WiFi connectivity, multiple report formats, and seamless integration with hospital systems, making it ideal for clinics and hospitals in Pakistan.
