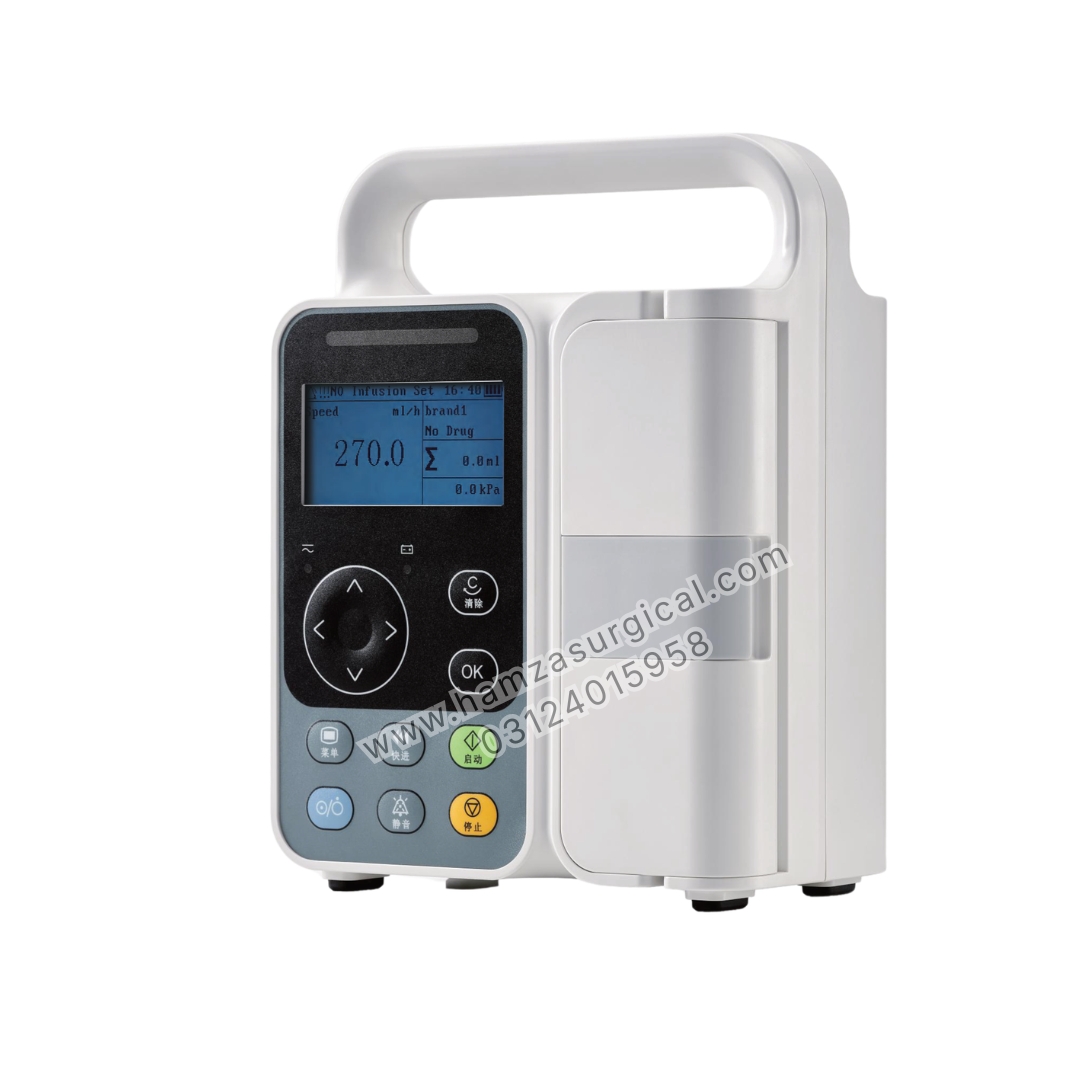

Periodmed PI-IP3A Infusion Pump

[doc id=’40624′]

The PI-IP3A Infusion Pump is a smart, safe, and reliable medical device designed for precise fluid delivery in hospitals and clinics. It features high accuracy, multiple safety alarms, pressure monitoring, and user-friendly operation for efficient patient care.

Key Features

• 3-inch monochrome LCD display
• Infusion rate adjustable from 1 ml/h to 1200 ml/h
• High precision infusion accuracy (±5%)
• KVO (Keep Vein Open) function
• Real-time pressure monitoring system
• Audible and visual alarm system
• Data storage for alarm history
• One-key operation (ml/h & drop/min conversion)
• Automatic system self-test on startup
• Bubble detection for enhanced safety
• Easy door opening structure for tube installation

Technical Specifications

Display

• 3-inch monochrome LCD

Infusion Speed

• Range: 1 ml/h – 1200 ml/h
• Adjustment: 0.1 ml/h increments

Infusion Volume

• Preset Range: 0.1 ml – 9999.9 ml
• Adjustment: 0.1 ml increments

Accuracy

• ±5% (with standard infusion set)

Blocking Pressure Levels

• High: 110 kPa
• Medium: 80 kPa
• Low: 40 kPa

KVO (Keep Vein Open)

• 1 ml/h – 5 ml/h

Power Supply

• AC: 100–240V, 50/60Hz
• Battery Input: 9.5V – 12.6V

Power Consumption

• ≤ 35VA

Battery

• Built-in 11.1V battery
• Capacity: ≥ 2000mAh
• Backup Time: ≥ 12 hours

Dimensions & Weight

• Size: 90 × 205 × 151 mm
• Weight: ≈ 1.5 kg

Safety Classification

• Class I, Type BF

Waterproof Level

• IPX1

Operating Conditions

• Temperature: 10°C – 30°C
• Humidity: 30% – 75%
• Pressure: 860 hPa – 1060 hPa
• Avoid shock, vibration, liquids, and corrosive gases

Storage Conditions

• Temperature: -20°C to +55°C
• Humidity: ≤ 93% (non-condensing)
• Store in dry, non-corrosive environment

Functions & Safety

• Pressure Monitoring: Detects occlusion precisely
• Audible Alarm: Real-time safety alerts
• Bubble Detection: Prevents air embolism risk
• Data Storage: Saves alarm history
• KVO Mode: Keeps veins open automatically

Applications

• Hospitals
• Clinics
• Medical institutions

Manufacturer

Xuzhou Yongkang Electronic Science Technology Co., Ltd.
China
