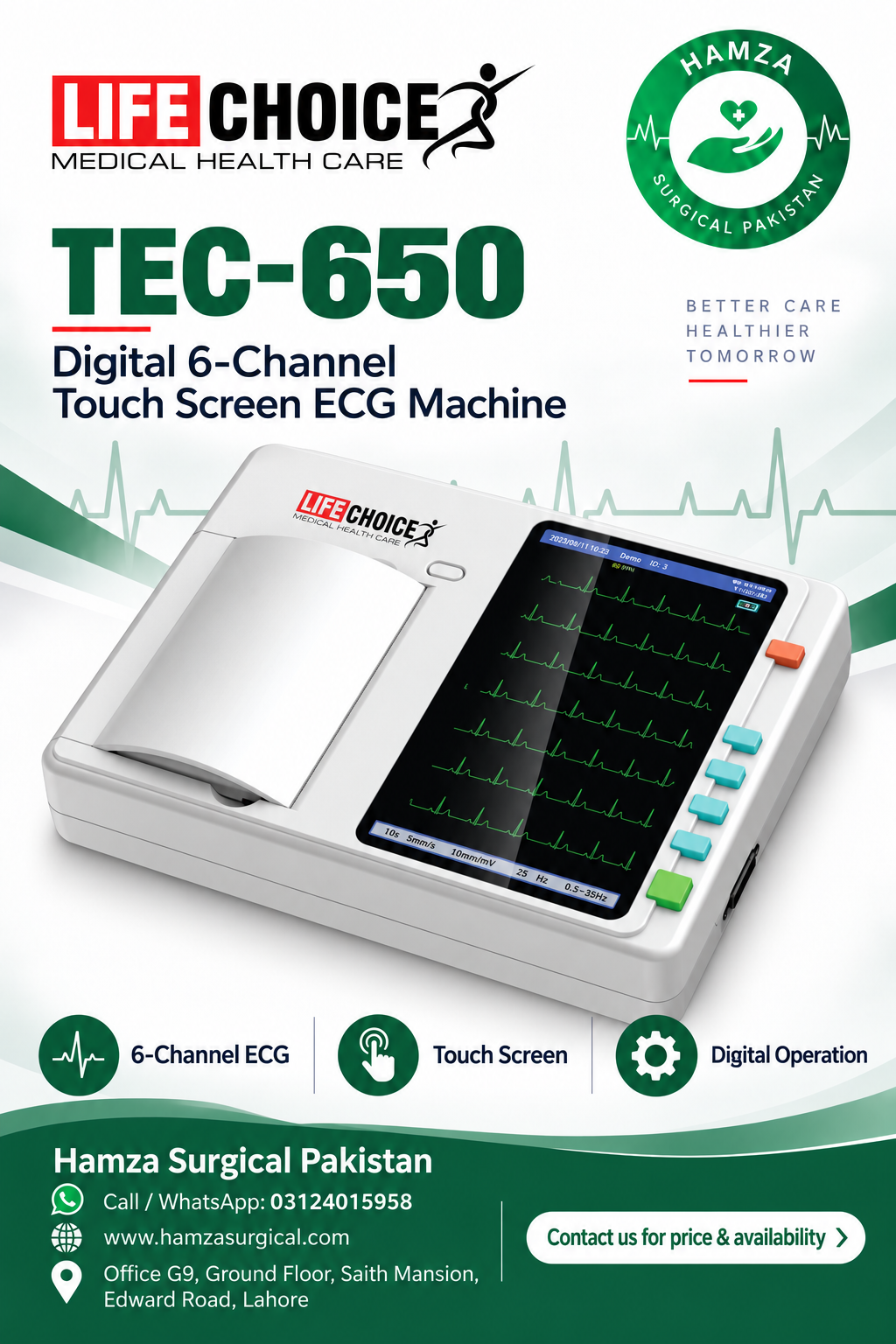

UpMed TEC-650 Digital 6-Channel Touch Screen ECG Machine

Product Specifications

• Lead: Standard 12 leads
• Input circuit: Floating; Built-in defibrillator protection
• Acquisition Mode: Simultaneous 12 leads acquisition
• Measurement Range: +5mVpp
• Time Constant: ≥3.2s
• Frequency Response: 0.05Hz~150Hz (-3dB)
• Sensitivity: 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
• Input Impedance: 250ΜΩ
• Input Circuit Current: <0.05μΑ
• Noise Level: <5μVp-p
• Anti-baseline Drift: Automatic
• Patient Current Leakage: <10μA (220V-240V)

Filter

• EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz
• DFT Filter: 0.05 Hz/ 0.15 Hz
• AC Filter: 50 Hz/60Hz
• CMRR: 100dB

Recording Mode

• Automatic: 3CHX4+1R, 3CHX4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2
• Manual: 3CH, 2CH, 3CH+1R, 2CH+1R
• Rhythm: Any lead selectable
• Recording way: Thermal printing system
• Recording Paper: Roll 80mmx20M
• Paper Speed: 12.5 mm/s, 25 mm/s, 50 mm/s
• Safety Standard: IEC I/CF

Sample Rate

• Normal: 1000sps/channel

Power Supply

• AC: 100~240V, 50/60Hz, 30VA~100VA
• DC: 14.8V/2200mAh, built-in lithium battery

Additional Features

• 7-inch high-resolution color touch-screen
• 12-lead simultaneous acquisition and display
• Auto analysis and diagnosis for routine ECG parameters
• Support USB flash disk and micro SD card to extend memory Software upgrades automatically via USB/SD card.
