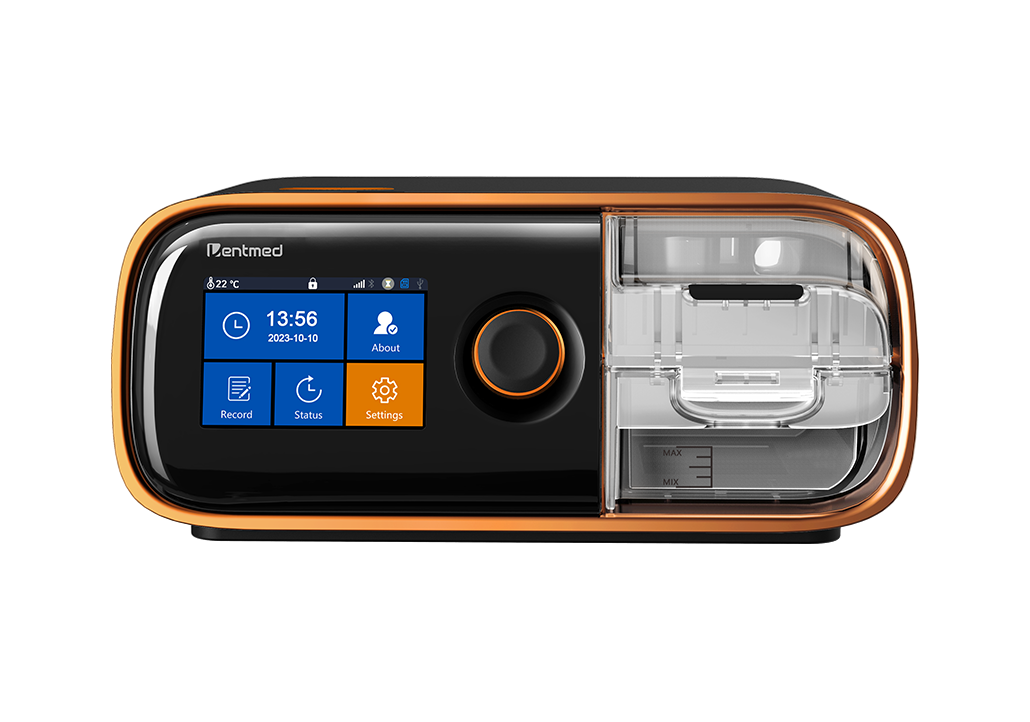

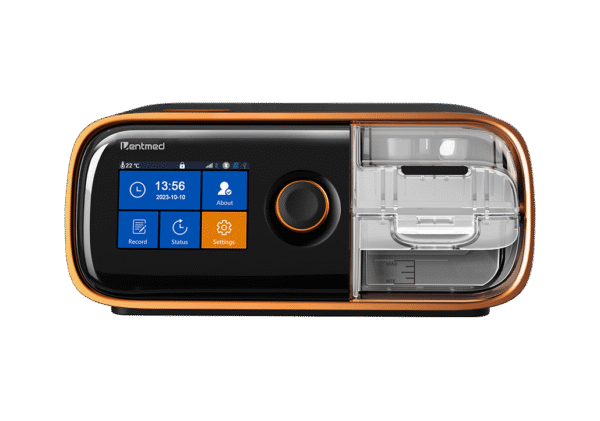

Ventmed DF-30V-HM DF Series CPAP / APAP / BIPAP

Product Specifications

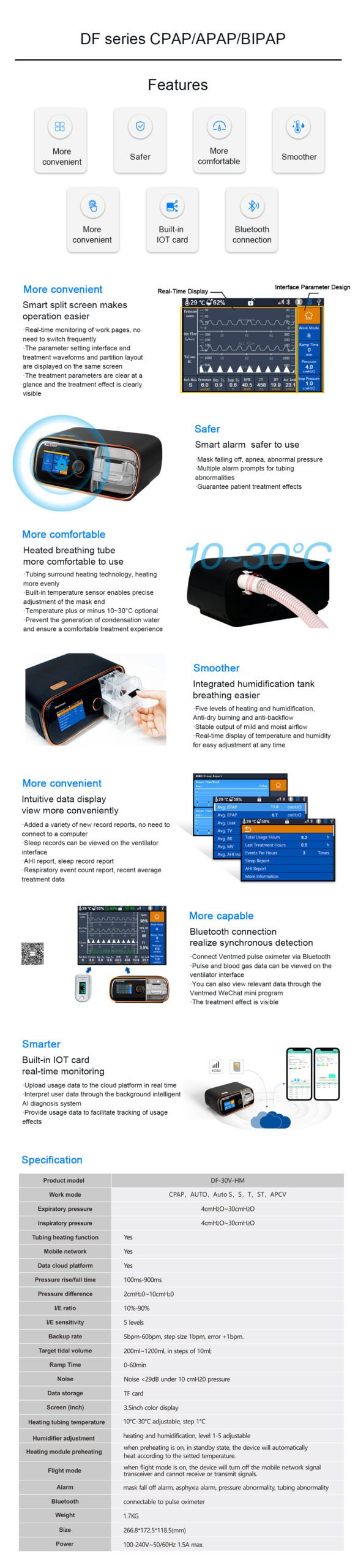

Features

• More convenient

• Safer

• More comfortable

• Smoother

• Built-in IOT card

• Bluetooth connection

More convenient

Smart split screen makes operation easier

• Real-time monitoring of work pages, no need to switch frequently

• Parameter setting interface and treatment waveforms/partition layout displayed on the same screen

• Treatments presented at a glance, treatment effect clearly visible

Safer

Smart alarm safer to use

• Mask falling off, apnea, abnormal pressure

• Multiple alarm prompts for tubing abnormalities

• Guarantee patient treatment effects

More comfortable

Heated breathing tube makes more comfortable to use

• Tubing surround heating technology, heating more evenly

• Built-in temperature sensor enables precise adjustment of heating mode

• Temperature plus or minus 30°C optional

• Prevent condensation water and ensure a comfortable experience

Smoother

Integrated humidification tank breathing easier

• Five levels of heating and humidification

• Anti-dry burning and anti-backflow

• Prevents build-up of mildew and harmful matter

• Real-time display of airway humidity and easy adjustment

More convenient

Intuitive data display

• Variety of record reports, no need to connect to computer

• Sleep records viewable on ventilator interface

• AHI report, sleep record report

• Respiratory event report, recent average treatment data

More capable

Bluetooth connection realize synchronous detection

• Connect VentMed pulse oximeter via Bluetooth

• Pulse and blood gas data viewable on ventilator interface

• Data review via VentMed Mini program

• Treatment effect visible

Smarter

Built-in IOT card real-time monitoring

• Upload usage data to cloud platform in real time

• Intelligent user data management through intelligent AI diagnosis system

• Provide usage data for treatment effect analysis

Specification

• Product model: DF-30V-HM

• Work mode: CPAP, AUTO, Auto-S, S, T, ST, APCV

• Expiratory pressure: 4cmH₂O–30cmH₂O

• Inspiratory pressure: 4cmH₂O–30cmH₂O

• Tubing heating function: Yes

• Mobile network: Yes

• Data cloud platform: Yes

• Pressure rise/fall time: 100ms–900ms

• Pressure difference: 2cmH₂O–10cmH₂O

• I/E ratio: 10%–90%

• I/E sensitivity: 5 levels

• Backup rate: 5bpm–60bpm, step size 1bpm, error ±1bpm

• Target tidal volume: 200ml–1200ml, in steps of 10ml

• Ramp time: 0–60min

• Noise: <29dB under 10 cmH₂O pressure

• Data storage: TF card

• Screen (inch): 3.5-inch color display

• Heating tubing temperature: 10°C–30°C adjustable, step 1°C

• Humidifier adjustment: Heating and humidification, 1–5 adjustable levels

• Heating module preheating: When switched on in standby, device preheats to set temperature

• Flight mode: When flight mode on, device shuts down mobile network signal transceiver and cannot receive/transmit signals

• Alarm: Mask fall-off alarm, asphyxia alarm, pressure abnormality, tubing abnormality

• Bluetooth: Connectable to pulse oximeter

• Weight: 1.7 KG

• Size: 266×187.5×118.5 mm

• Power: 100–240V~50/60Hz, 1.5A max
