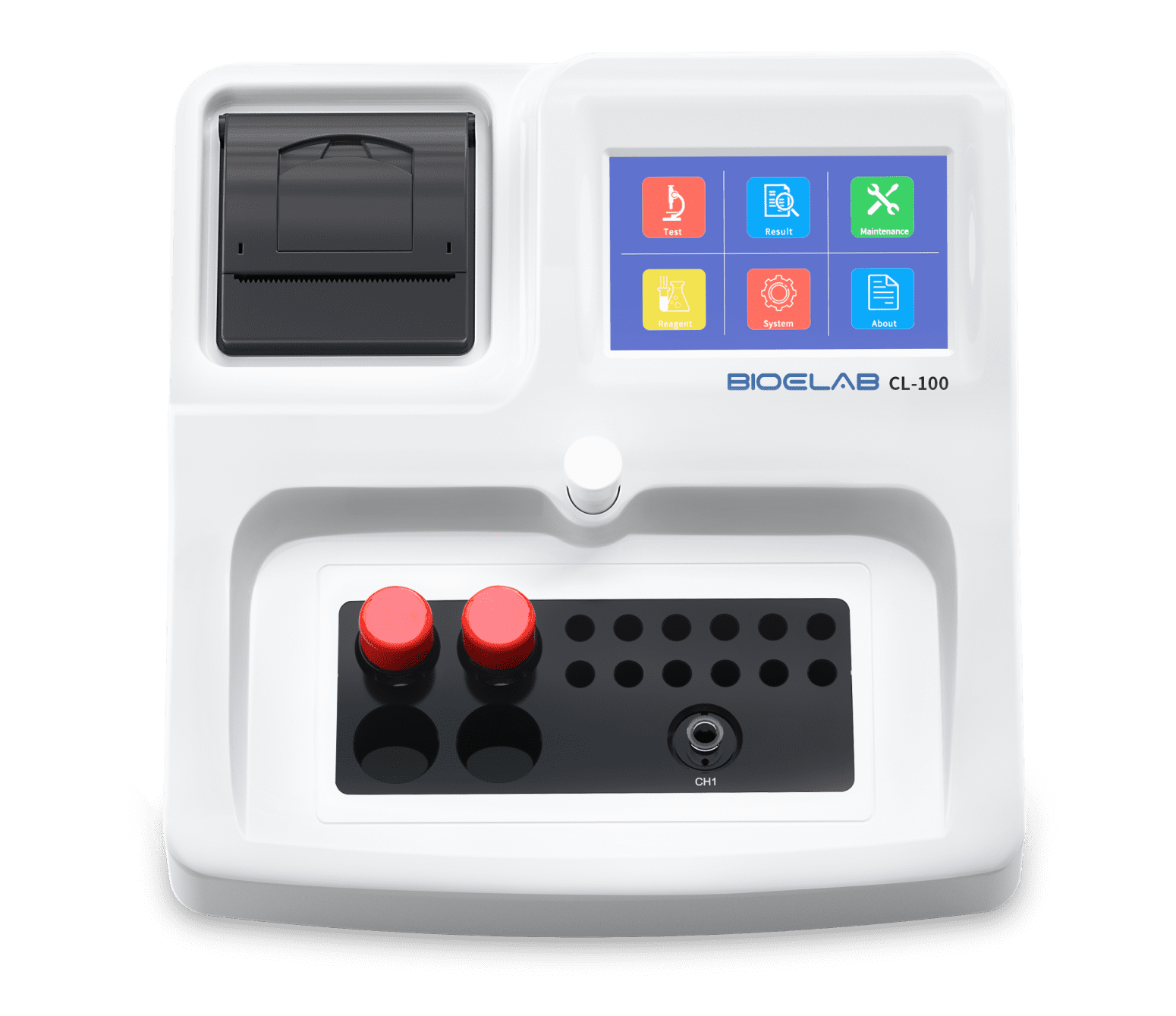

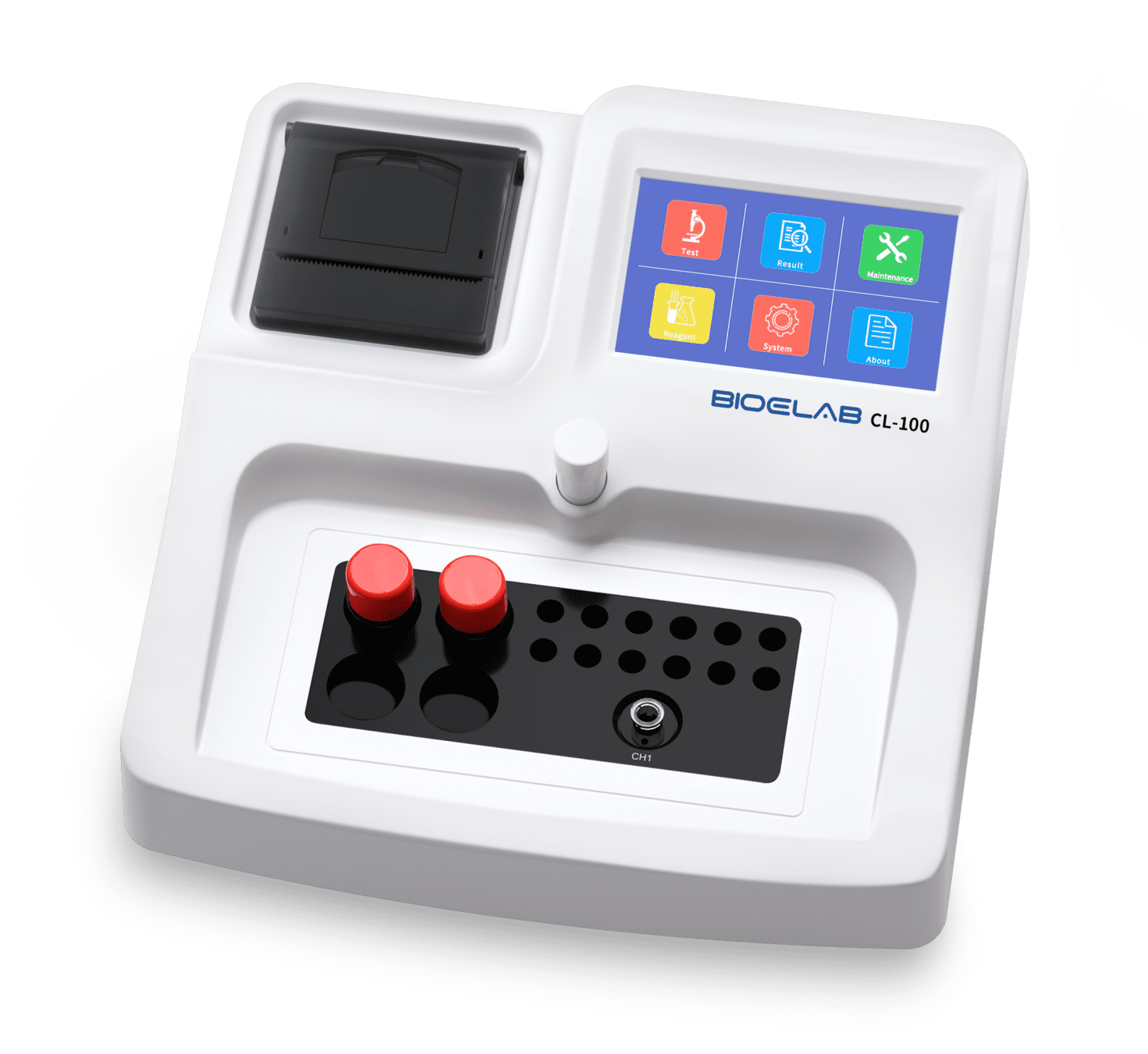

BIOELAB CL-100 Semi-Automatic Coagulation Analyzer

The CL-100 Semi-Auto Coagulation Analyzer is a reliable and efficient diagnostic device designed for precise coagulation testing. With its compact structure and advanced optical detection technology, it delivers fast and highly accurate results, making it ideal for clinical laboratories and healthcare facilities.

Key Features

High-Sensitivity Optical Detection

• Utilizes an advanced optical detection system for improved sensitivity
• Ensures accurate and consistent test results
• Supports fast, real-time result printing

Single Detection Channel for Efficient Testing

• Equipped with one detection channel
• Enables simultaneous testing with enhanced efficiency
• Ideal for routine laboratory use

User-Friendly Touch Screen Interface

• 4.3-inch TFT LCD touchscreen display
• Simple and intuitive user interface
• Allows smooth and convenient operation

Magnetic Stirring System

• Built-in magnetic stirring ensures uniform mixing
• Improves test accuracy and consistency
• Enhances overall performance

Intelligent Software System

• Integrated parameter editing and quality control management
• Displays real-time test curves
• Designed for efficient workflow and easy data handling

Technical Specifications

Detection System

• Detection Channels: Single Channel

Test Principles

• Coagulation Method (Optical)
• Chromogenic Method (Optional)
• Immunological Method (Optional)

System Configuration

• 4.3” TFT LCD Touch Screen
• Built-in Thermal Printer
• 12 Incubation Positions
• Temperature Control: 37°C ± 0.5°C
• 4 Reagent Positions
• Magnetic Stirring System
• Automatic Sampling Detection

Performance & Storage

• Reaction Volume: 150 μL
• Open System with Editable Reagent Parameters
• Editable Calibration and Reference Curves
• Storage Capacity:
  • 200 Test Items
  • 200,000 Test Results
  • 1,000 Curves
• Quality Control (QC) Management
• Real-Time Curve Display
• Automatic Unit Conversion: INR, %, g/L, mg/dL, Ratio, Seconds
• USB Port Support

Electrical Requirements

• Input Voltage: 100–240V AC
• Frequency: 50/60 Hz
• Power Consumption: ≤ 60W

Physical Specifications

• Net Weight: 2.2 kg ± 5%
• Dimensions (L × W × H): 252 × 252 × 125 mm ± 3%

Advanced Storage & Performance

• Stores up to 200,000 test results and 1,000 curves
• High-capacity memory ensures smooth and uninterrupted workflow
• Ideal for high-volume laboratory environments
