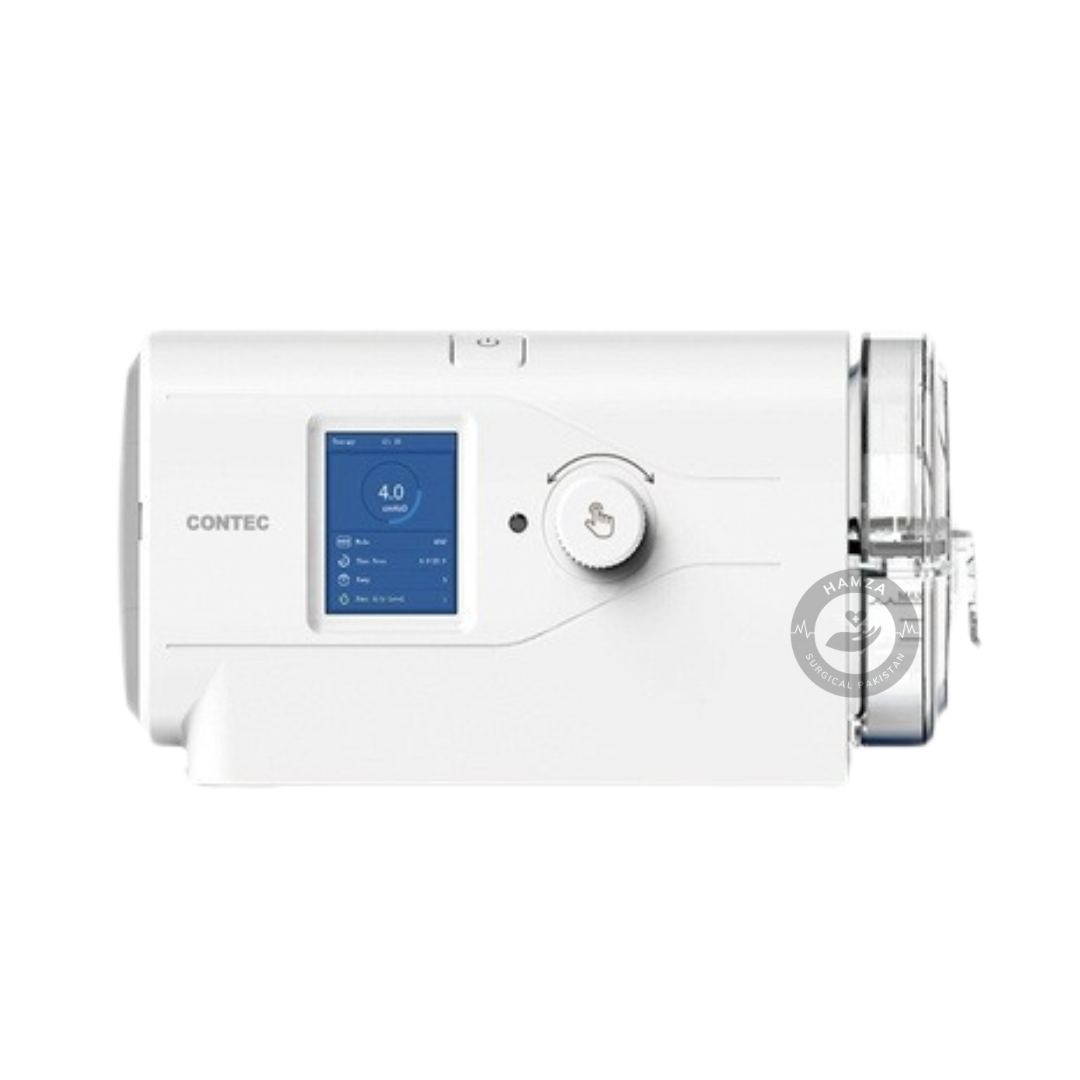

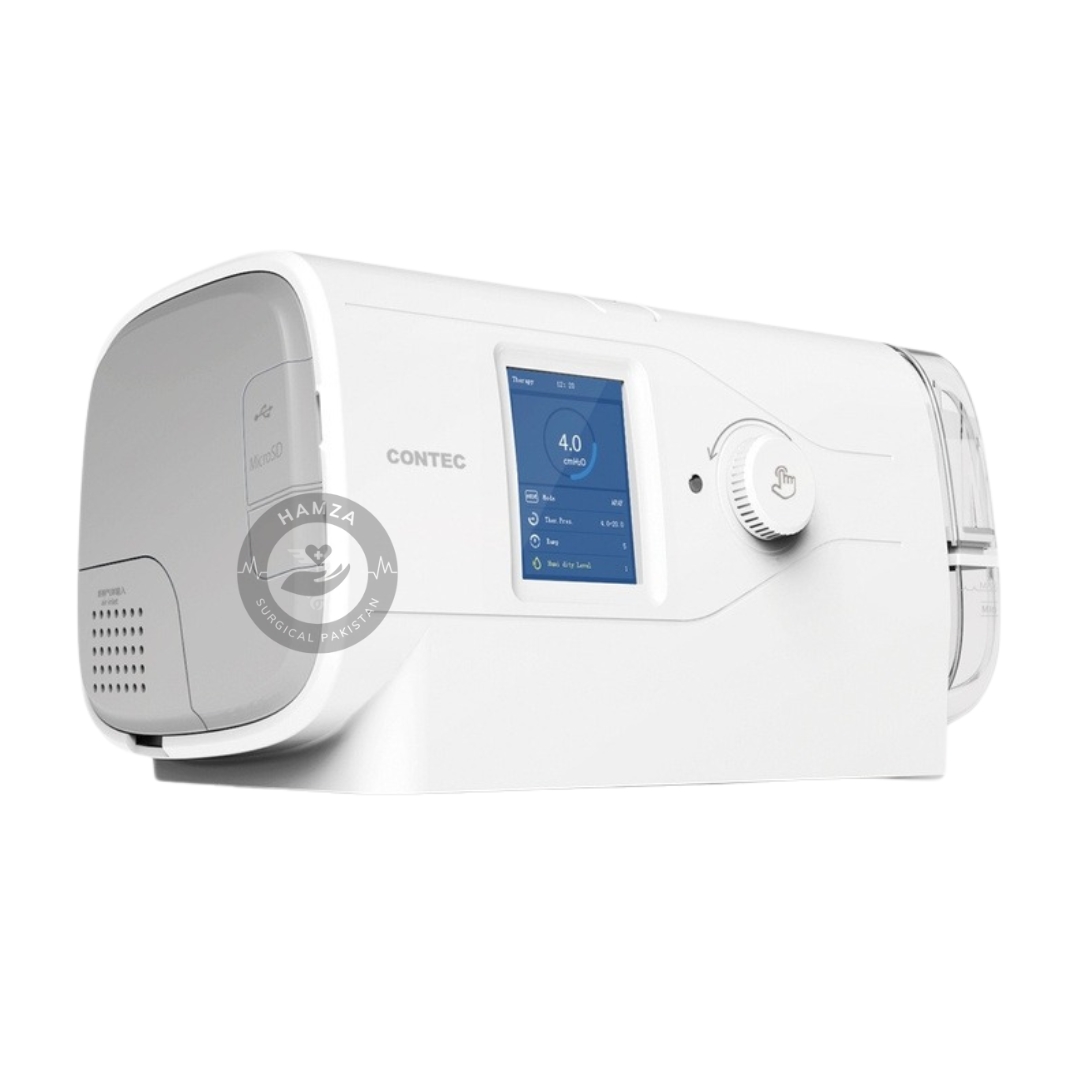

CONTEC RS-100 CPAP Machine

Description

Brand: CONTEC
Model: R100
Type: Positive Airway Pressure Device (CPAP/Auto CPAP)
Application: Treatment of Obstructive Sleep Apnea (OSA) for patients weighing above 30 kg. Suitable for family, clinic, and hospital use.

Key Features

• CPAP/Auto CPAP treatment modes with adjustable operating pressure

• Ramp & Humidity regulation (Humidity levels: 1–6)

• Auto pressure release (APR)

• Mask leakage detection, leakage prompt, and error status prompt

• Automatic leakage compensation within a certain range

• Patient data saving and review via SD card

• Intelligent mask recognition (auto start/stop treatment)

• Multiple reminder functions

Performance

• Operating Pressure:

  • Range: 4–20 cmH₂O (4–20 hPa)

  • Resolution: 0.1 cmH₂O (0.1 hPa)

  • Dynamic variation range: 0.2 cmH₂O (0.2 hPa)

• Ramp Time:

  • Range: 0–45 min

  • Resolution: 1 min

  • Dynamic variation range: 5 min

• Power Supply:

  • Input: 100–240 V~, 50/60 Hz, 1.0–1.5 A

  • Output: DC 24 V, 3.75 A

• Humidifier:

  • Volume: 200–360 ml

  • Consumption: ≤48 W

  • Material: PC + stainless steel chassis

  • Heating plate max temperature: 63°C (±3°C)

  • Outlet air temperature: <41°C

  • Safety cut-off (thermal circuit breaker): >85±5°C, recovery <55±15°C, delay <10s, DC24V-3A

  • Protective disconnection temperature: 76°C

• Noise Level: <35 dB at 10 cmH₂O, 1m distance (with humidifier)

• Sensors:

  • Flow sensor: +500 Pa

  • Pressure sensor: 0–45 cmH₂O (0–45 hPa)

SpO₂ & PR Measurement (Optional)

• SpO₂ Measurement:

  • Range: 0–100%

  • Resolution: 1%

  • Accuracy: ±2%

• Pulse Rate Measurement (PR):

  • Range: 30–250 bpm

  • Resolution: 1 bpm

  • Accuracy: ±2 bpm or ±2% of max

• Classification:

  • SpO₂ Device: Class I laser product

Safety & Classification

• Anti-electric shock level: Class II, Type BF applied part

• Ingress protection: IP22

Physical Characteristics

• Dimensions: 275 × 170 × 145 mm

• Weight (device + humidifier): 1600 g

• Breathing tube: Soft plastic, length 1.8 m, outlet ISO5356.1 22 mm conical joint

• Operating Conditions:

  • Temperature: +5°C ~ +40°C

  • Humidity: 10% ~ 95% (non-condensing)

  • Air pressure: 700–1060 hPa

Accessories

• Breathing tube (circuit)

• Mask

• Micro SD card

• Power supply unit & adapter cord

• Air inlet filter cotton

• User manual

• Portable bag

• SpO₂ device (optional)
