Product Specifications

Lead: Standard 12 leads
Input circuit: Floating; Built-in defibrillator protection
Acquisition Mode: Simultaneous 12 leads acquisition
Measurement Range: +5mVpp
Time Constant: ≥3.2s
Frequency Response: 0.05Hz~150Hz (-3dB)
Sensitivity: 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
Input Impedance: 250ΜΩ
Input Circuit Current: <0.05μΑ
Noise Level: <5μVp-p
Anti-baseline Drift: Automatic
Patient Current Leakage: <10μA (220V-240V)

Filter

EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz
DFT Filter: 0.05 Hz/ 0.15 Hz
AC Filter: 50 Hz/60Hz
CMRR: 100dB

Recording Mode

Automatic: 3CHX4+1R, 3CHX4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2
Manual: 3CH, 2CH, 3CH+1R, 2CH+1R
Rhythm: Any lead selectable
Recording way: Thermal printing system
Recording Paper: Roll 80mmx20M
Paper Speed: 12.5 mm/s, 25 mm/s, 50 mm/s
Safety Standard: IEC I/CF

Sample Rate

Normal: 1000sps/channel

Power Supply

AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery

Additional Features

7-inch high-resolution color touch-screen
12-lead simultaneous acquisition and display
Auto analysis and diagnosis for routine ECG parameters
Support USB flash disk and micro SD card to extend memory Software upgrades automatically via USB/SD card.

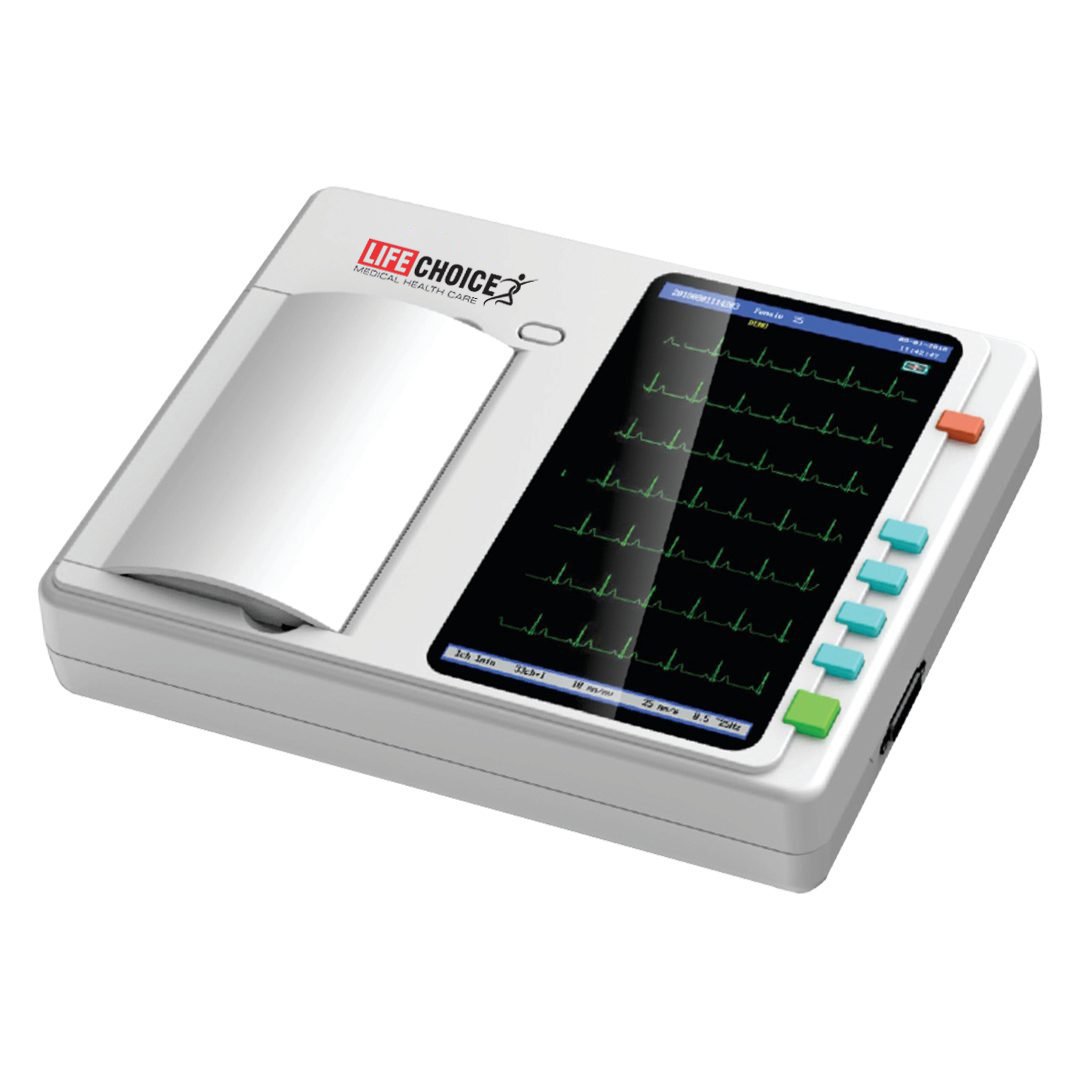

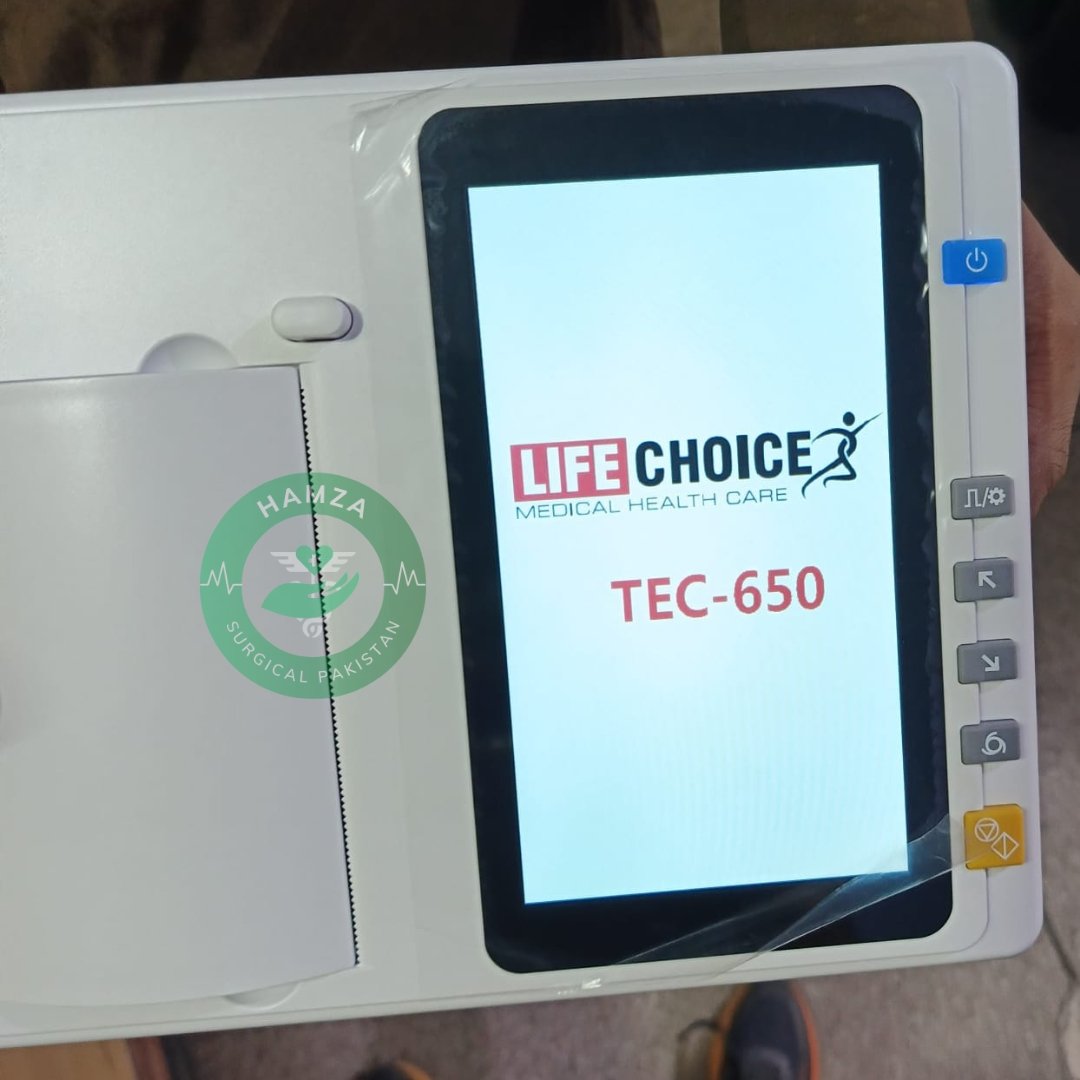

Discover the Life Choice TEC-650 Digital 6-Channel Touch Screen ECG Machine at Hamza Surgical, your trusted source for premium health devices. We are providing 100% Original Life Choice TEC-650 Digital 6-Channel Touch Screen ECG Machine, guaranteeing both quality and performance, with lowest price of Rs. 92,000. Shop now and experience seamless experience with trusted solutions!
